Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
MD
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components

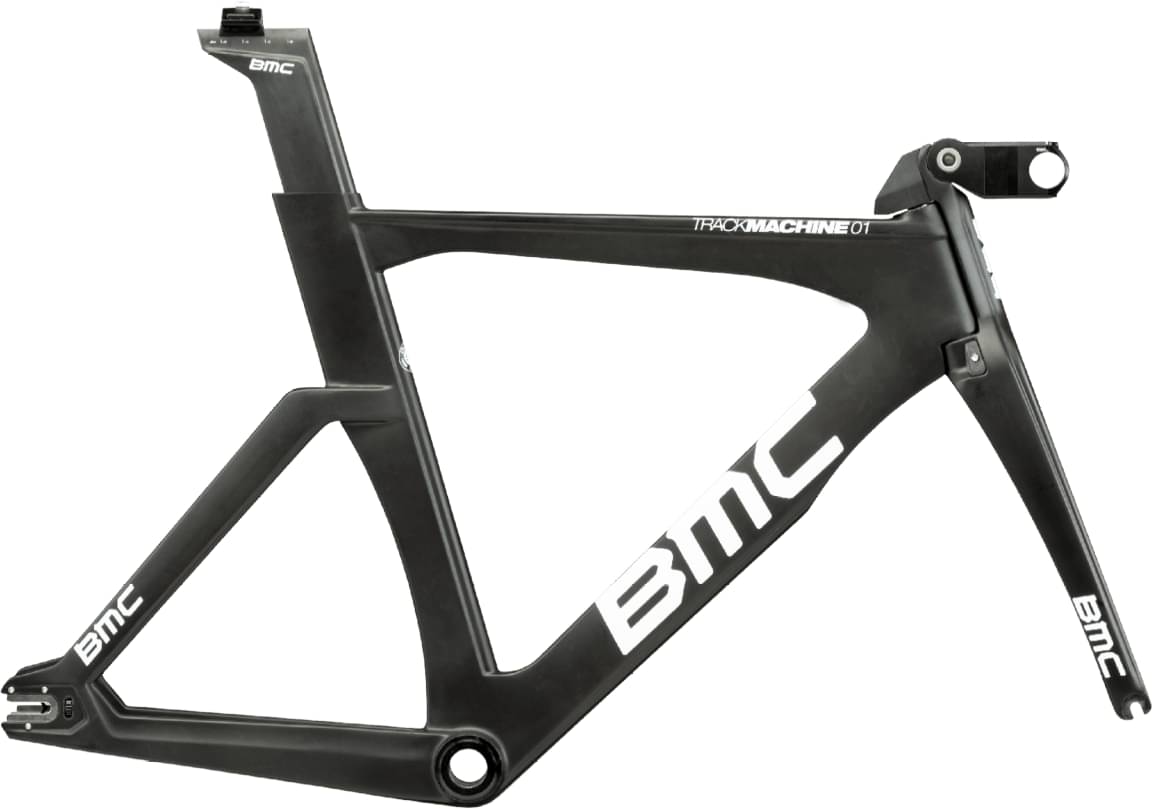

Frame
Frame
Trackmachine 01 Premium Carbon with Vmax Aero Design P2P Positioning SyStem, BSA Threaded Bottom Bracket, Sliding Dropouts
Suspension Fork
Trackmachine 01 Premium Carbon with Vmax Aero Design Hinge-Design
Drivetrain
Bottom Bracket
BSA, 68mm, threaded
Cockpit
Stem
Vmax Aero Integrated Design / P2P Technology
Seat
Seatpost
Vmax Aero
Fit data

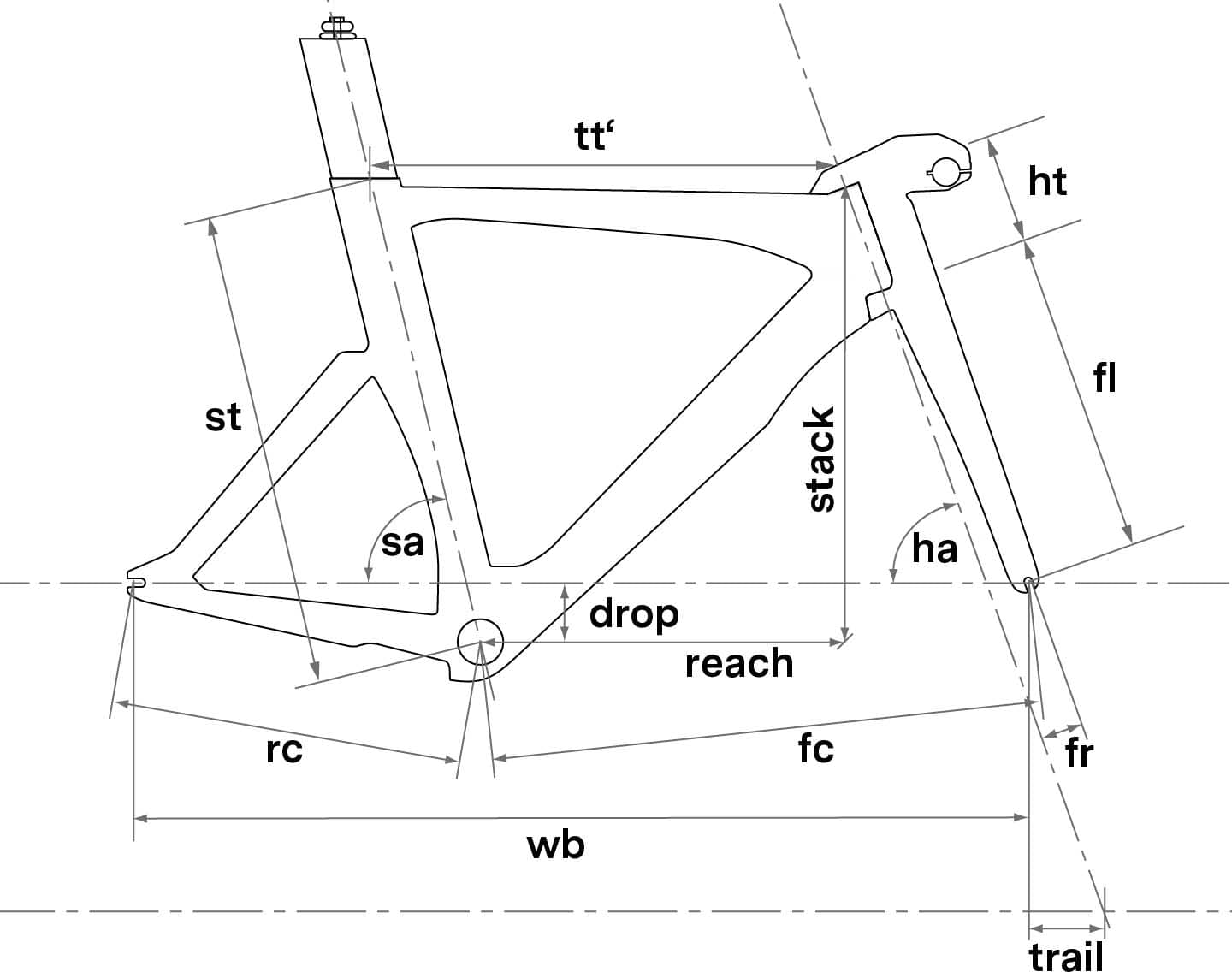

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.21 mm | 1.24 mm | 1.26 mm |
| Bottom Bracket Height | 286 mm | 278 mm | 278 mm |
| Front Center | 586 mm | 604 mm | 626 mm |
| Rake | 48 mm | 48 mm | 48 mm |
| Trail | 59 mm | 59 mm | 59 mm |
| Stack | 474 mm | 509 mm | 547 mm |
| Reach | 393 mm | 411 mm | 433 mm |
| Top Tube Length | 528 mm | 556 mm | 588 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 505 mm | 542 mm | 582 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 94 mm | 134 mm | 163 mm |
| Chainstay Length | 393 mm | 393 mm | 393 mm |
| Wheelbase | 966 mm | 984 mm | 1006 mm |
| Bottom Bracket Drop | 50 mm | 58 mm | 58 mm |
| Standover Height | 754 mm | 782 mm | 820 mm |
| Wheels | 700 | 700 | 700 |
| Rider Max Height | 173 cm | 185 cm | cm |
Model Overview
Trackmachine 01 FRS is part of the Bmc Trackmachine model. BMC launched 14 frames of this model so far. Take a sneak peek at all Bmc Trackmachine frames models from 2023, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Track frames
If you want to purchase a solid Track frame, it is important to know that the average cost is 2508$. However, this doesn’t mean that if you spend less money on a Track frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 4599$. In conclusion, this frame price is 83.37% higher than the price of the average Track frame.
Trackmachine 01 FRS components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
