Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Rear 25mm -
Groupset GX Eagle AXS, Rival AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
170cm - 180cm
LG
178cm - 188cm
XL
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
URS 01 Premium Carbon with Micro Travel Technology Tuned Compliance Concept Gravel, Gravel+ Geometry, ICS Technology Stealth Cable Routing, Fender and Rack Mounts, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle
Suspension Fork
ICS MTT x Redshift Suspension Stem
Rear Shock
Micro Travel Technology Stays
Drivetrain
Rear Derailleur
SRAM Gx Eagle AXS
Shift Levers
SRAM Rival eTap AXS
Cassette
SRAM XG 1275 EAGLE 10-52T
Crank
SRAM RIVAL 1 AXS 38T
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM Gx Eagle 12 Speed
Wheels
Front Hub
DT Swiss 370 Spline Disc
Rear Hub
DT Swiss 370 Spline Disc
Rims
DT Swiss G1800 Spline - 25mm
Tires
WTB Raddler - 40mm
Brakes
Brakes
SRAM Rival eTap AXS HRD | SRAM Centerline 180 / 160mm
Cockpit
Stem
ICS MTT x Redshift Suspension Stem - Integrated Cockpit Design
Handlebar
Easton EA70 AX
Seat
Saddle
WTB SL8
Seatpost
URS 01 Premium Carbon D-Shaped Seatpost, 0mm Offset
Fit data

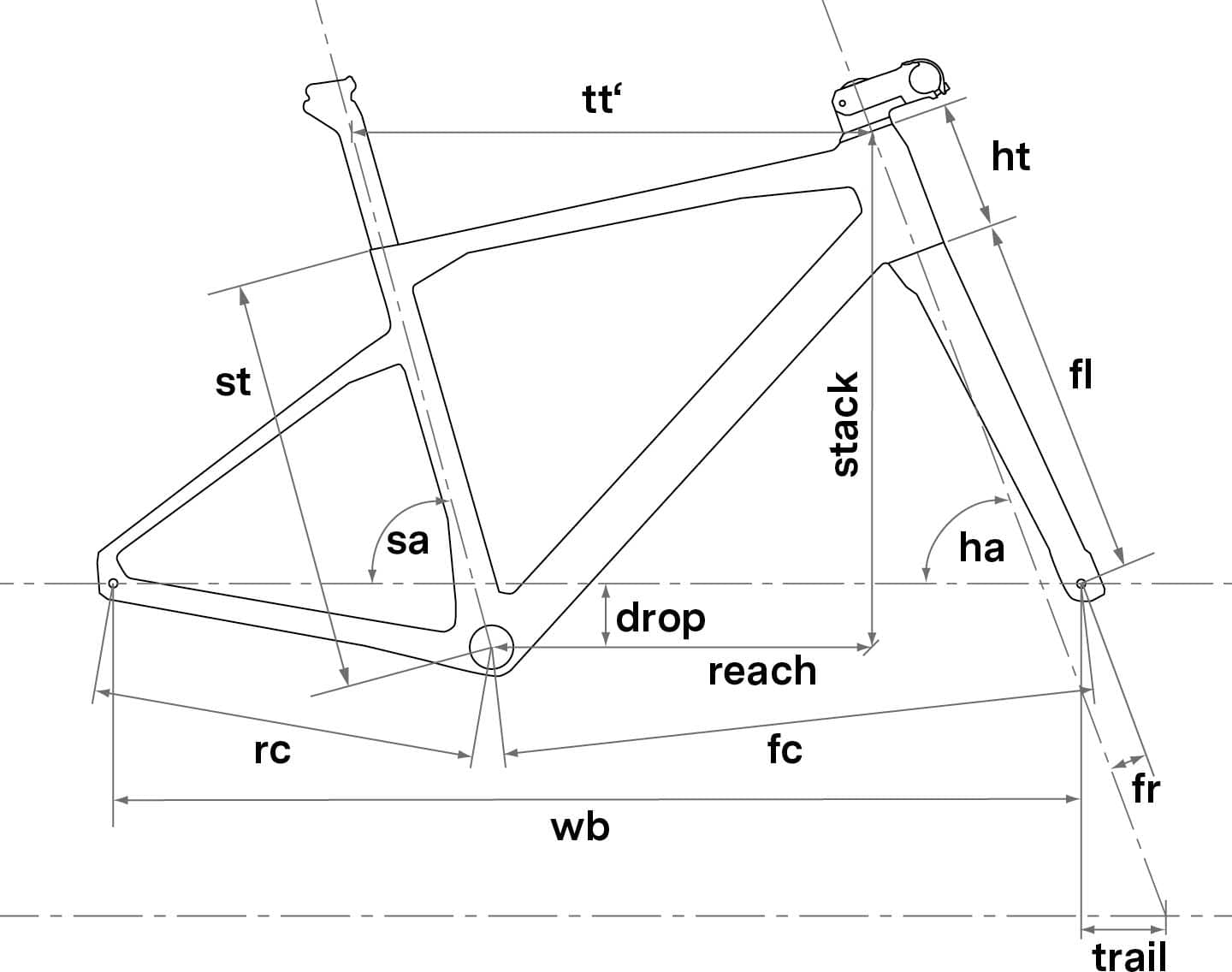

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.44 mm | 1.5 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 625 mm | 648 mm | 665 mm | 700 |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 77 mm | 77 mm | 77 mm |
| Stack | 535 mm | 566 mm | 600 mm | 638 mm |
| Reach | 400 mm | 412 mm | 416 mm | 426 mm |
| Top Tube Length | 554 mm | 575 mm | 588 mm | 609 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 431 mm | 459 mm | 492 mm | 527 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 113 mm | 146 mm | 172 mm | 207 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1038 mm | 1061 mm | 1078 mm | 1102 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 745 mm | 775 mm | 807 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 196 cm |
Model Overview
URS 01 FOUR belongs to the Bmc Urs model. 38 bikes variations carry this model name so far. Take a sneak peek at all Bmc Urs bikes models from 2023, by clicking here.
Model range prices
BMC URS AL 2023 is the most affordable bike of this model and has a price of 2299$. On the other hand, BMC URS 01 ONE 2023, is the most expensive and costs 11499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 5699$. Doing a quick comparison, we notice that URS 01 FOUR price is 131.48% higher than the average cost of a Gravel bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
URS 01 FOUR components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Rear Shock
BMC URS 01 FOUR bike has the Micro Travel Technology Stays model installed, and has a travel of 25mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on URS 01 FOUR are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. BMC URS 01 FOUR has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
