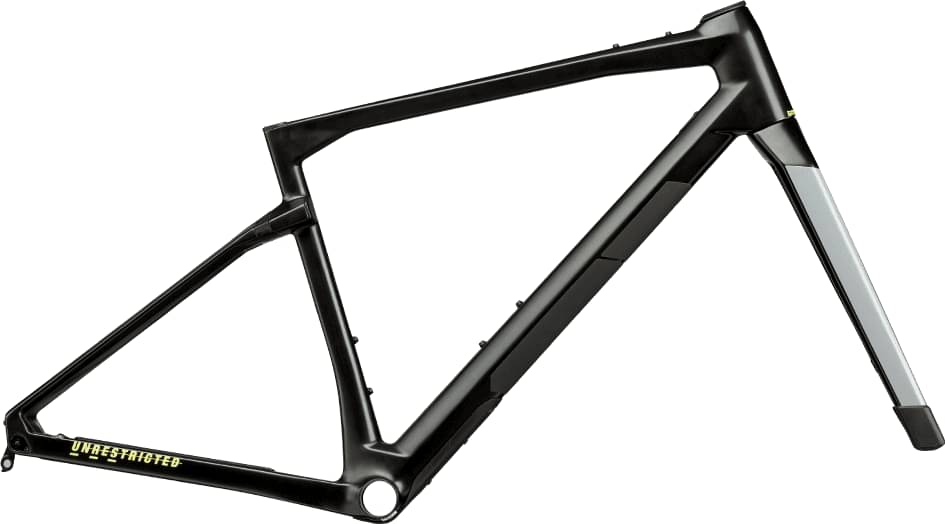

BMC URS 01 Frameset 2021
2021 Road
Estimate price |
3,399$
Weight | 2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
MD
170cm - 180cm
LG
178cm - 188cm
XL
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
URS 01 Premium Carbon with Micro Travel Technology, Gravel+ Geometry, • ICS Technology, • TCC Endurance compliance level, • PF86 bottom bracket, • Integrated Seatpost binder, • Flat Mount Disc, • 12x142mm thru-axle
Suspension Fork
URS 01 Premium Carbon, • ICS Technology, stealth cable routing, • TCC Endurance compliance level, • Flat Mount Disc, • 12x100mm thru-axle, • 50mm offset (Size 47-51), 45mm offset (Size 54-61)
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.44 mm | 1.5 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 625 mm | 648 mm | 665 mm | 700 |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 77 mm | 77 mm | 77 mm |
| Stack | 535 mm | 566 mm | 600 mm | 638 mm |
| Reach | 400 mm | 412 mm | 416 mm | 426 mm |
| Top Tube Length | 554 mm | 575 mm | 588 mm | 609 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 431 mm | 459 mm | 492 mm | 527 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 113 mm | 146 mm | 172 mm | 207 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1038 mm | 1061 mm | 1078 mm | 1102 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 196 cm |
Model Overview
URS 01 Frameset belongs to the Bmc Urs model. There are 38 frames that carry this model name. Take a sneak peek at all Bmc Urs frames models from 2021, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel frames
Our math shows that the average cost of a dependable Gravel frame is 1505$. However, this doesn’t mean that if you spend less money on a Gravel frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3399$. In conclusion, this frame price is 125.85% more expensive than the price of the average Gravel frame.
Average weight for Gravel frames
If we make a quick analysis of the average weight of a Gravel frame, we get 2.06 kg (4.54 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 2 kg (4.41 lbs), the URS 01 Frameset model is slightly lighter than average. In other words, this model is 3% lighter than the average Gravel frame.
URS 01 Frameset components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
