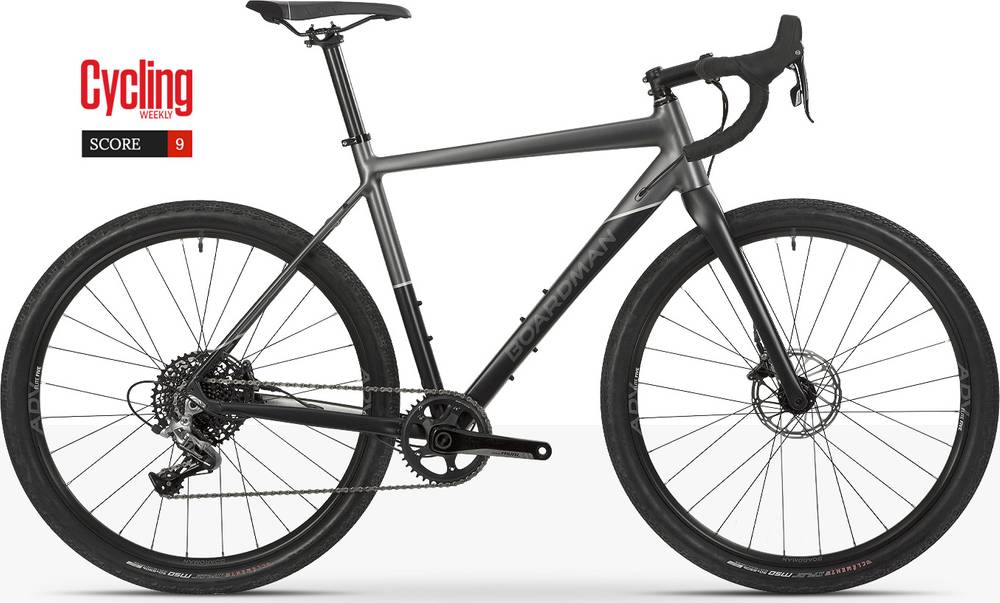

Boardman ADV 9.0 2019
2019 Road
Estimate price |
2,236$
Weight | 10.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 180cm
LG
178cm - 188cm
XL
186cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Triple Butted 6061 smooth weld Alloy
Suspension Fork
ADV C10 Carbon, tapered steerer
Drivetrain
Rear Derailleur
SRAM Rival 1 Long Cage
Front Derailleur
N/A
Shift Levers
SRAM Rival 1
Cassette
SRAM Rival 11-42T
Crank
SRAM Rival 1 40T
Bottom Bracket
SRAM GXP
Chain
SRAM Rival - PC1130
Wheels
Front Hub
Boardman ADV - 100x12mm front, 142x12mm rear
Rear Hub
Boardman ADV - 100x12mm front, 142x12mm rear
Rims
Boardman ADV Elite 650b
Tires
Clement MSO 650bx50mm Tubeless
Brakes
Brakes
SRAM Rival, 160mm Rotor front & rear
Cockpit
Stem
Boardman Elite Alloy
Handlebar
Controltech CLS Gravel Bar, 12 degree flare
Headset
FSA Orbit C-40 ACB, 1 1/8” - 1.5” Tapered, Integrated.
Seat
Saddle
Fizik Tundra VS M7, alloy rails
Seatpost
Boardman Elite Carbon, 31.6 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.49 mm | 1.5 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 553 mm | 578 mm | 592 mm | 609 mm |
| Reach | 373 mm | 385 mm | 396 mm | 405 mm |
| Top Tube Length | 531 mm | 551 mm | 571 mm | 591 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 130 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 162 cm | 170 cm | 178 cm | 186 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 195 cm |
Model Overview
ADV 9.0 belongs to the Boardman Adv model. There are 12 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Boardman ADV 8.8 Womens 2019 is the cheapest bike model and costs 973$. Boardman ADV 9.0 2019 is the most expensive one and costs 2007$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Boardman released this model in 2019, its price was 2007$. Comparing this to the average Gravel bike price, we see that the price is 22.67% smaller.
Average weight for Gravel bikes
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 10.2 kg (22.49 lbs), the ADV 9.0 model is much heavier than average. To sum up, it’s 25.46% heavier than the average weight of Gravel bikes.
Overview of components
Fork material
ADV 9.0 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Boardman ADV 9.0 2019, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Boardman ADV 9.0 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
ADV 9.0 comes in 4 sizes, that range from 162 cm – 195 cm (5.31 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
