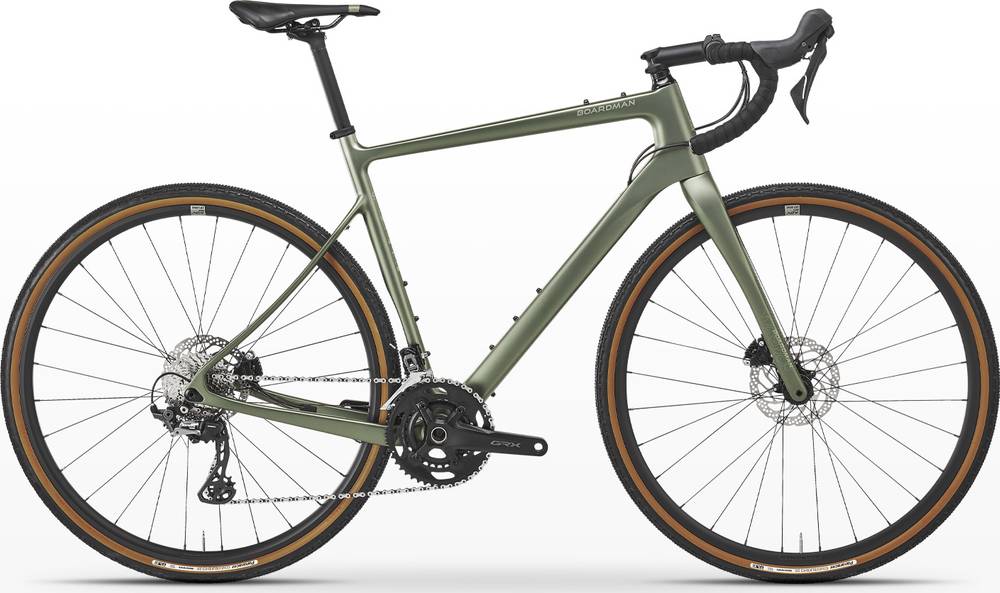

Boardman ADV 9.0 2021
2021 Road
Estimate price |
2,439$
Weight | 9.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boardman ADV - C10 Carbon 142x12mm Thru Axle
Suspension Fork
C10 Carbon with Tapered Steerer - 100x12mm Thru Axle
Drivetrain
Rear Derailleur
Shimano GRX RD-RX810 II SPD
Front Derailleur
Shimano GRX RX810
Shift Levers
Shimano GRX RX600 2x11
Cassette
Shimano CS-R7000 speed, 11-32 T
Crank
Shimano GRX RX600, 46/30 T
Bottom Bracket
FSA BB386 Press Fit with 24mm Shimano adapter
Chain
KMC X11
Wheels
Front Hub
Formula RX-512 front, RX-142 rear
Rear Hub
Formula RX-512 front, RX-142 rear
Rims
Boardman ADV Tubeless Ready
Tires
Panaracer Gravel King SK, 700x38mm - Tubeless Ready
Brakes
Brakes
Shimano GRX RX400 Hydraulic - 160mm Shimano RT-30 Rotor
Cockpit
Stem
Boardman Alloy, 31.8mm clamp
Handlebar
Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop, 6 degree flare
Headset
FSA Orbit C-40 ACB, 1 1/8” - 1.5” Tapered, Integrated.
Seat
Saddle
Prologo Akero AGX
Seatpost
Boardman Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.51 mm | 1.5 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 548 mm | 568 mm | 588 mm | 603 mm |
| Reach | 366 mm | 379 mm | 390 mm | 402 mm |
| Top Tube Length | 533 mm | 553 mm | 570 mm | 588 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 525 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 181 cm | 187 cm |
| Rider Max Height | 179 cm | 183 cm | 189 cm | 195 cm |
About this model
ADV 9.0 belongs to the Boardman Adv model. Boardman launched 12 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Boardman ADV 8.6 2021 is the most affordable bike of this model and has a price of 912$. On the other hand, Boardman ADV 9.0 2021, is the most expensive and costs 2190$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Boardman ADV 9.0 price was 2190$. Comparing this to the average Gravel bike price, we see that the price is 12.42% lower.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
ADV 9.0 weighs 9.2 kg (20.28 lbs) and is considerably heavier than the average. In short, the average Gravel bike weight is 13.16% lower than this one.
ADV 9.0 components
Fork material
ADV 9.0 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Boardman ADV 9.0 2021, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 170 cm – 195 cm (5.58 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
