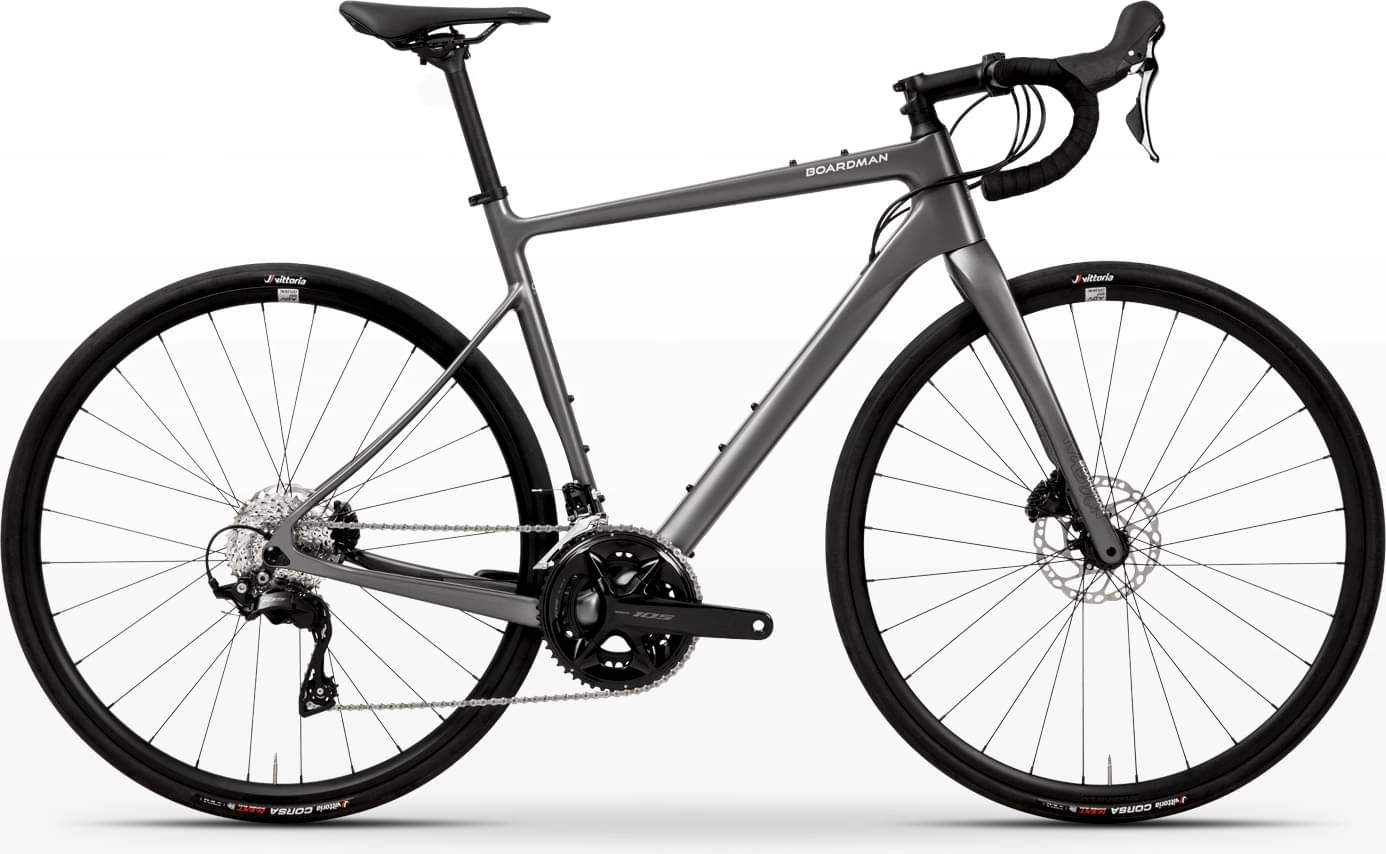

Boardman ADV 9.0 ROAD 2023
2023 Road
Estimate price |
2,710$
Weight | 8.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boardman ADV - C10 Carbon 142x12mm Thru Axle
Suspension Fork
C10 Carbon with Tapered Steerer - 100x12mm Thru Axle
Drivetrain
Rear Derailleur
Shimano 105 R7100 12 SPD
Front Derailleur
Shimano 105 R7100
Shift Levers
Shimano 105 R7100 2x12
Cassette
Shimano CS-R7100 12 speed, 11-36 T
Crank
Shimano 105 R7100 - 50/34
Bottom Bracket
FSA BB386 Press Fit with 24mm Shimano adapter
Chain
Shimano CN-M6100
Pedals
Wellgo alloy with straps, 9/16”
Wheels
Front Hub
Formula RX-512 front, RX-142 rear
Rear Hub
Formula RX-512 front, RX-142 rear
Rims
Boardman Asymmetric Adventure Tubeless Ready Rims
Tires
Vittoria Corsa N.EXT 700x32 - Tube type
Brakes
Brakes
Shimano 105 R7100 Hydraulic - 160mm Shimano RT-30 Rotor
Cockpit
Stem
Boardman Alloy, 31.8mm clamp
Handlebar
Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop
Headset
FSA Orbit C-40 ACB, 1 1/8” - 1.5” Tapered, Integrated.
Seat
Saddle
Prologo Akero AGX
Seatpost
Boardman Alloy, 27.2mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.51 mm | 1.5 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 548 mm | 568 mm | 588 mm | 603 mm |
| Reach | 366 mm | 379 mm | 390 mm | 402 mm |
| Top Tube Length | 533 mm | 553 mm | 570 mm | 588 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 525 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 181 cm | 187 cm |
| Rider Max Height | 179 cm | 183 cm | 189 cm | 195 cm |
Model Overview
ADV 9.0 ROAD belongs to the Boardman Adv model. Boardman released 13 bikes variations of this model so far. Take a sneak peek at all Boardman Adv bikes models from 2023, by clicking here.
Model range prices
Boardman ADV 8.6 2023 is the cheapest bike model and costs 1005$. Boardman ADV 9.0 ROAD 2023 is the most expensive one and costs 2436$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 2436$. In conclusion, this bike price is 1.07% lower than the price of the average Gravel bike.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, ADV 9.0 ROAD has a weight of 8.8 kg (19.4 lbs). In short, the average Gravel bike weight is 8.24% lower than this one.
ADV 9.0 ROAD components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on ADV 9.0 ROAD are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ADV 9.0 ROAD comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 170 cm – 195 cm (5.58 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
