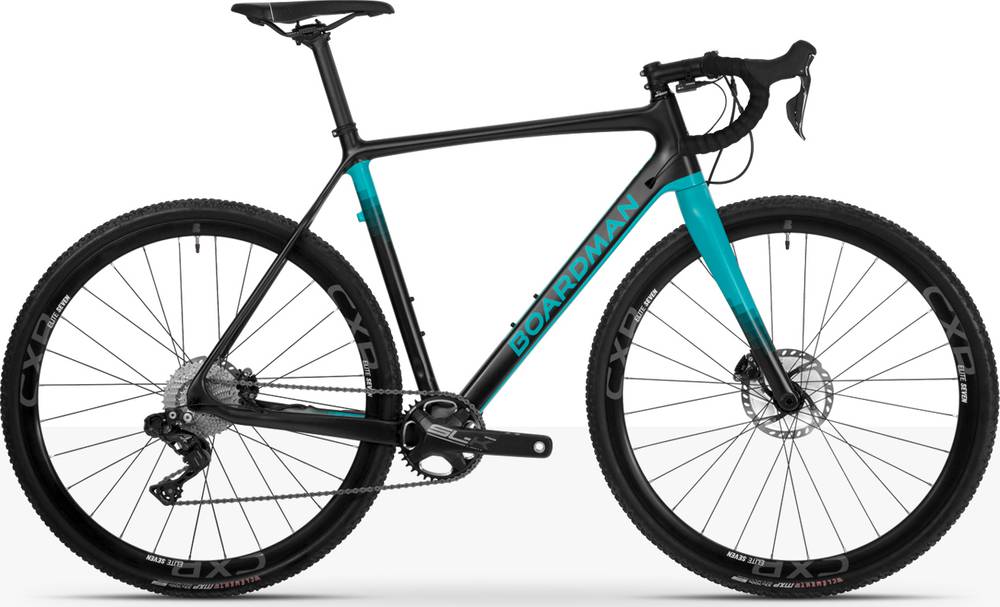

Boardman CXR 9.4 2019
2019 Road
Estimate price |
4,336$
Weight | 8.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset XT Di2, Ultegra Di2 -
Suspension Rigid -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
167cm - 173cm
SM
171cm - 178cm
MD
176cm - 184cm
LG
182cm - 190cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CXR - C10 Carbon
Suspension Fork
Boardman CXR C10 Carbon Tapered Steerer, 12mm Thru-Axle
Drivetrain
Rear Derailleur
Shimano Deore XT Di2
Shift Levers
Shimano Ultegra Di2 R8070
Cassette
Shimano Ultegra 11-34
Crank
FSA SL-K Light 38T
Bottom Bracket
FSA BB-PF30
Chain
Shimano CN-HG701
Wheels
Front Hub
12x100mm front, 12x142mm rear, 28h
Rear Hub
12x100mm front, 12x142mm rear, 28h
Rims
Boardman CXR Elite Seven
Tires
33mm Clement MXP Tubeless
Brakes
Brakes
Shimano Ultegra BR-R8070
Cockpit
Stem
Boardman Elite Alloy - 5° rise
Handlebar
Boardman Elite Alloy
Headset
FSA, No.42
Seat
Saddle
Fizik Tundra M7
Seatpost
Boardman Elite Carbon - 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.42 mm | 1.47 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 597 mm | 595 mm | 596 mm | 601 mm | 610 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 77 mm | 67 mm | 64 mm | 62 mm | 58 mm |
| Stack | 521 mm | 545 mm | 564 mm | 585 mm | 606 mm |
| Reach | 382 mm | 385 mm | 384 mm | 388 mm | 396 mm |
| Top Tube Length | 521 mm | 536 mm | 551 mm | 566 mm | 581 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 70 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1014 mm | 1012 mm | 1013 mm | 1018 mm | 1028 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 167 cm | 171 cm | 176 cm | 182 cm | 188 cm |
| Rider Max Height | 173 cm | 178 cm | 184 cm | 190 cm | 200 cm |
Model Overview
CXR 9.4 belongs to the Boardman Cxr model. 8 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Boardman CXR 8.9 2019 is the most affordable bike of this model and has a price of 1216$. On the other hand, Boardman CXR 9.4 2019, is the most expensive and costs 3892$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Cyclocross bikes average price
According to our calculations, the average cost of a Cyclocross bike that is reliable is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 3892$. Comparing this to the average Cyclocross bike price, we see that the price is 93.44% more expensive.
Cyclocross bikes average weight
Cyclocross bikes have an average weight of 8.79 kg (19.38 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8.5 kg (18.74 lbs), the CXR 9.4 model is slightly lighter than average. In conclusion, the average Cyclocross bike weighs 3.41% more than CXR 9.4.
CXR 9.4 components
Fork material
CXR 9.4 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the CXR 9.4 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Boardman CXR 9.4 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
CXR 9.4 comes in 5 sizes, that range from 167 cm – 200 cm (5.48 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
