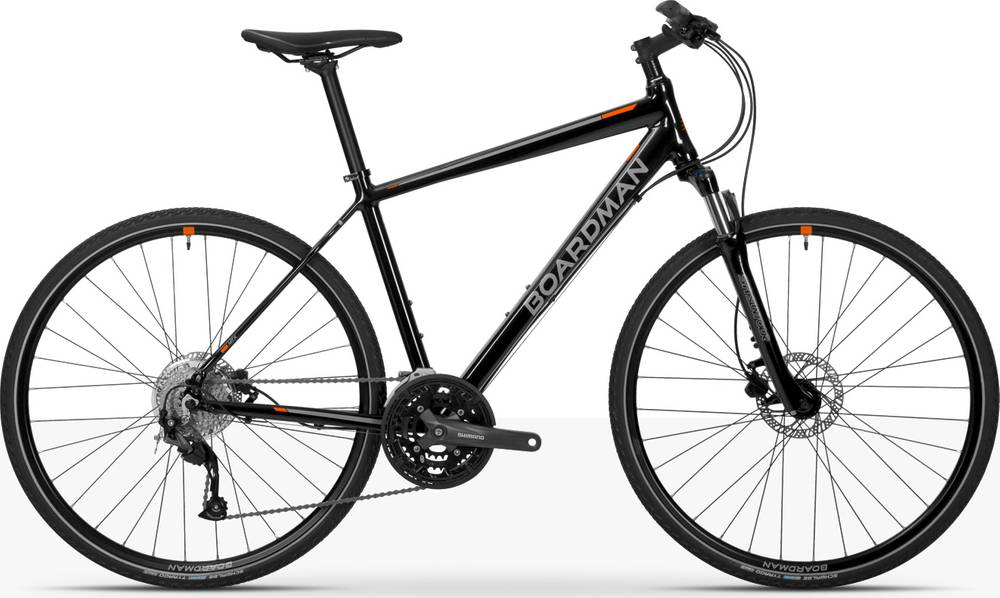

Boardman MTX 8.6 Black 2019
2019 Urban
Estimate price |
736$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Deore -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
167cm - 180cm
LG
175cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 Alloy, smooth welded
Suspension Fork
Suntour NEX HLO, 63mm travel, lockout, 700c
Drivetrain
Rear Derailleur
Shimano Altus, 9 speed
Front Derailleur
Shimano Altus, triple, 34.9mm clamp
Shift Levers
Shimano Deore 2x10
Cassette
Shimano HG201, 9 speed, 11-34t (11-13-15-17-20-23- 26-30-34)
Crank
Shimano Acera, square taper 48/36/26t
Bottom Bracket
FSA cartridge, 68x127mm
Chain
KMC Z99
Wheels
Front Hub
Formula QR
Rear Hub
Formula QR
Rims
Boardman Alloy 700C
Tires
Schwalbe Tyrago, 700x37c, kevlar guard, reflective. Kenda presta tube
Brakes
Brakes
Tektro M285 hydraulic disc, Tektro 160mm rotor
Cockpit
Stem
Boardman Alloy, 7 degree rise, 31.8mm clamp
Handlebar
Boardman Alloy, riser bar, 9 degree bend, 15mm rise, 31.8mm clamp.
Headset
FSA no.10, 1 1/8”, Semi Integrated
Seat
Saddle
Boardman Hybrid by Velo, steel rails
Seatpost
Boardman Alloy, 31.6 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.53 mm | 1.53 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Stack | 601 mm | 624 mm | 650 |
| Reach | 390 mm | 408 mm | 425 mm |
| Top Tube Length | 574 mm | 599 mm | 624 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 175 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm |
About this model
MTX 8.6 Black belongs to the Boardman Mtx model. 15 bikes variations carry this model name so far. Take a sneak peek at all Boardman Mtx bikes models from 2019, by clicking here.
Model range prices
Boardman MTX 8.6 Womens 2019 is the cheapest bike model and costs 608$. Boardman MTX 8.8 2019 is the most expensive one and costs 791$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid bikes
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 669$. In conclusion, this bike price is 19.04% more expensive than the price of the average Hybrid bike.
Average weight for Hybrid bikes
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 14 kg (30.86 lbs), the MTX 8.6 Black model is slightly heavier than average. In conclusion, the average Hybrid bike weighs 1.08% less than MTX 8.6 Black.
MTX 8.6 Black components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the MTX 8.6 Black model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Boardman MTX 8.6 Black has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 160 cm – 188 cm (5.25 ft – 6.17 ft). In conclusion, finding one for you shouldn’t be a problem.
