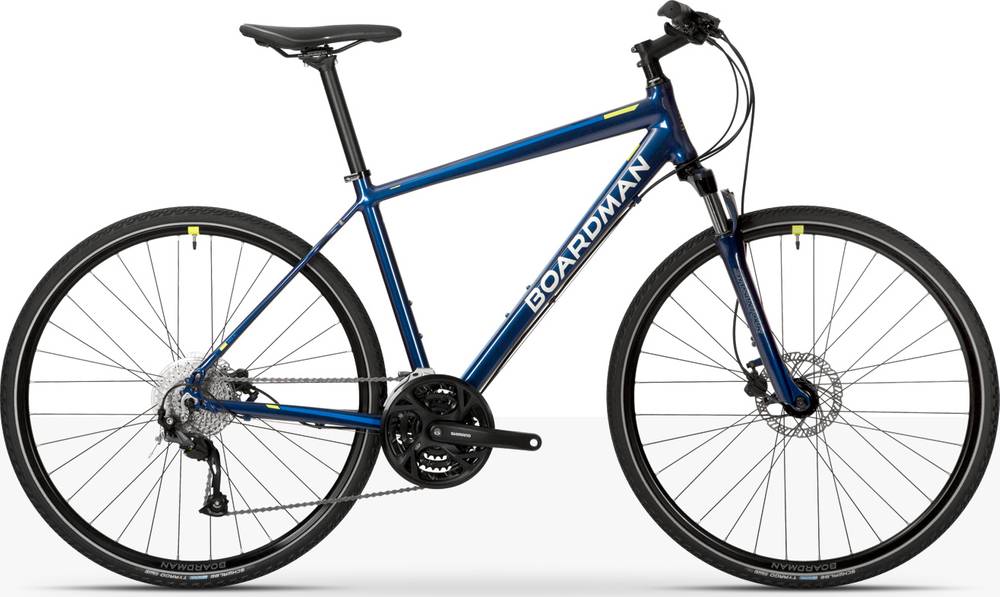

Boardman MTX 8.6 Blue 2020
2020 Urban
Estimate price |
677$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
167cm - 180cm
LG
175cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 Alloy, smooth welded
Suspension Fork
Suntour NEX HLO, 63mm travel, lockout, 700c
Drivetrain
Rear Derailleur
Shimano Deore, 9 speed, medium cage
Front Derailleur
Shimano Altus, triple, 34.9mm clamp
Shift Levers
Shimano Deore 3x9
Cassette
Shimano HG201, 9 speed, 11-34t (11-13-15-17-20-23- 26-30-34)
Crank
Shimano Acera, square taper, 48/36/26t
Bottom Bracket
FSA cartridge, 68x127mm
Chain
KMC Z99
Wheels
Front Hub
Formula QR
Rear Hub
Formula QR
Rims
Boardman Alloy 700C
Tires
Schwalbe Tyrago, 700x37c, kevlar guard, reflective. Kenda presta tube
Brakes
Brakes
Tektro M285 hydraulic disc, Tektro 160mm rotor
Cockpit
Stem
Boardman Alloy, 7 degree rise, 31.8mm clamp
Handlebar
Boardman Alloy, riser bar, 9 degree bend, 15mm rise, 31.8mm clamp.
Headset
FSA no.10, 1 1/8”, Semi Integrated
Seat
Saddle
Boardman Hybrid by Velo, steel rails
Seatpost
Boardman Alloy, 31.6 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.53 mm | 1.53 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Stack | 601 mm | 624 mm | 650 |
| Reach | 390 mm | 408 mm | 425 mm |
| Top Tube Length | 574 mm | 599 mm | 624 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 175 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm |
Model Overview
MTX 8.6 Blue is a Boardman Mtx model. Boardman launched 15 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Boardman MTX 8.6 Blue 2020 has a starting price of 608$. Boardman MTX 8.8 2020 on the other hand is the most expensive at 851$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Boardman released this model in 2020, its price was 608$. In conclusion, this bike price is 8.19% more expensive than the price of the average Hybrid bike.
Hybrid bikes average weight
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 14 kg (30.86 lbs), the MTX 8.6 Blue model is slightly heavier than average. In short, the average Hybrid bike weight is 1.08% lower than this one.
Overview of components
Fork
The MTX 8.6 Blue comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Boardman MTX 8.6 Blue 2020, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Boardman MTX 8.6 Blue has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 160 cm – 188 cm (5.25 ft – 6.17 ft). In short, it won’t be difficult to find the right one for you.
