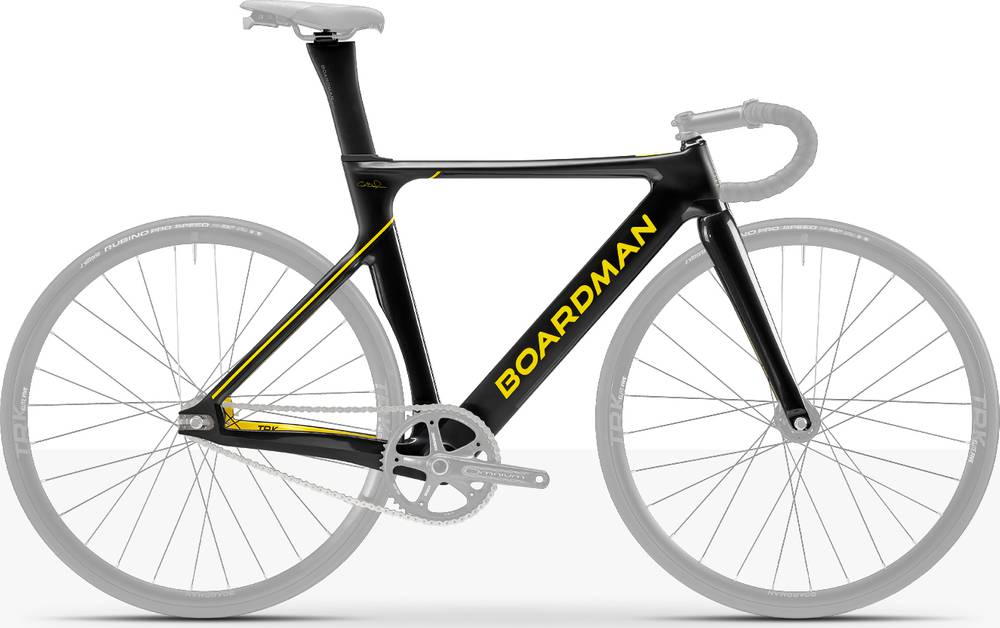

Boardman TRK Frameset 2019
2019 Road
Estimate price |
1,761$
Weight | 1.1 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XXS
155cm - 168cm
XS
166cm - 173cm
SM
171cm - 178cm
MD
176cm - 184cm
LG
182cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boardman TK, C10 Carbon
Suspension Fork
Boardman TRK, Carbon, Carbon Tapered Steerer
Drivetrain
Bottom Bracket
First PF30 to GXP eccentric BB adapter
Cockpit
Headset
FSA, No.42
Seat
Seatpost
Boardman Elite TT Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.28 mm | 1.24 mm | 1.24 mm | 1.24 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 480.7 mm | 491 mm | 498 mm | 517 mm | 535 mm |
| Reach | 372.6 mm | 384 mm | 402 mm | 417 mm | 433 mm |
| Top Tube Length | 493 mm | 508 mm | 528 mm | 553 mm | 568 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 80 mm | 90 mm | 95 mm | 115 mm | 135 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 398 mm | 398 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 166 cm | 171 cm | 176 cm | 182 cm |
| Rider Max Height | 168 cm | 173 cm | 178 cm | 184 cm | 189 cm |
Model Overview
TRK Frameset is part of the Boardman Trk model. 2 frames variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Track frames average price
Our math shows that the average cost of a dependable Track frame is 2508$. However, this doesn’t mean that if you spend less money on a Track frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Boardman TRK Frameset price was 1581$. In conclusion, this frame price is 58.63% smaller than the price of the average Track frame.
Average weight for Track frames
The average weight for Track frames is 1.91 kg (4.21 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 1.1 kg (2.43 lbs), Boardman frame is much lighter than average. In conclusion, the average Track frame weighs 73.64% more than TRK Frameset.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 155 cm – 189 cm (5.09 ft – 6.2 ft). In conclusion, you won’t have a problem finding one that suits you.
