Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset X1 -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 double butted crmo frame, integrated derailleur hanger, rack / fender mounts, 68 mm BSA shell
Suspension Fork
4130 crmo, tapered double butted blades with fender / rack mounts
Drivetrain
Rear Derailleur
-
Front Derailleur
-
Shift Levers
-
Cassette
17T heat treated crmo cog, 1/2" x 1/8"
Crank
BOMBTRACK AF19 alloy crank, square taper, BOMBTRACK CREST alloy, 42T, 1/2" x 1/8"
Bottom Bracket
BSA sealed BB, 118 mm, square taper
Chain
KMC 510HX chain, 1/2" x 1/8", 98L
Pedals
WELLGO B109N flat pedal
Wheels
Front Hub
Front: BOMBTRACK TITLE sealed hub, regular 3/8" axle, Rear: BOMBTRACK TITLE sealed hub, 11-speed, regular 3/8" axle
Rear Hub
Front: BOMBTRACK TITLE sealed hub, regular 3/8" axle, Rear: BOMBTRACK TITLE sealed hub, 11-speed, regular 3/8" axle
Rims
Front: BOMBTRACK A-M1 double wall, i19, 32h, Rear: BOMBTRACK A-M1 double wall, i19, 32h
Tires
Front: KENDA KWIK TENDRIL tire, 700C x 35C, Rear: KENDA KWIK TENDRIL tire, 700C x 35C
Brakes
Brakes
TEKTRO RX1 mini V-brakes
Cockpit
Stem
BOMBTRACK ROAM forged alloy stem, -7°
Handlebar
BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Grips
BOMBTRACK CONTROL bar tape
Headset
FSA TH 848 sealed external aheadset, 1.1/8"
Seat
Saddle
BOMBTRACK Comp saddle
Seatpost
BOMBTRACK BEECH alloy seatpost, 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 579 mm | 589 mm | 609 mm | 624 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 81.3 mm | 74.8 mm | 70.9 mm | 64.5 mm |
| Stack | 506 mm | 532 mm | 561 mm | 595 mm |
| Reach | 355 mm | 365 mm | 380 mm | 395 mm |
| Top Tube Length | 511 mm | 529 mm | 553 mm | 578 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71 ° | 72 ° |
| Head Tube Length | 84.7 mm | 108 mm | 137 mm | 169 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 984 mm | 994 mm | 1014 mm | 1030 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 741 mm | 769 mm | 797 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

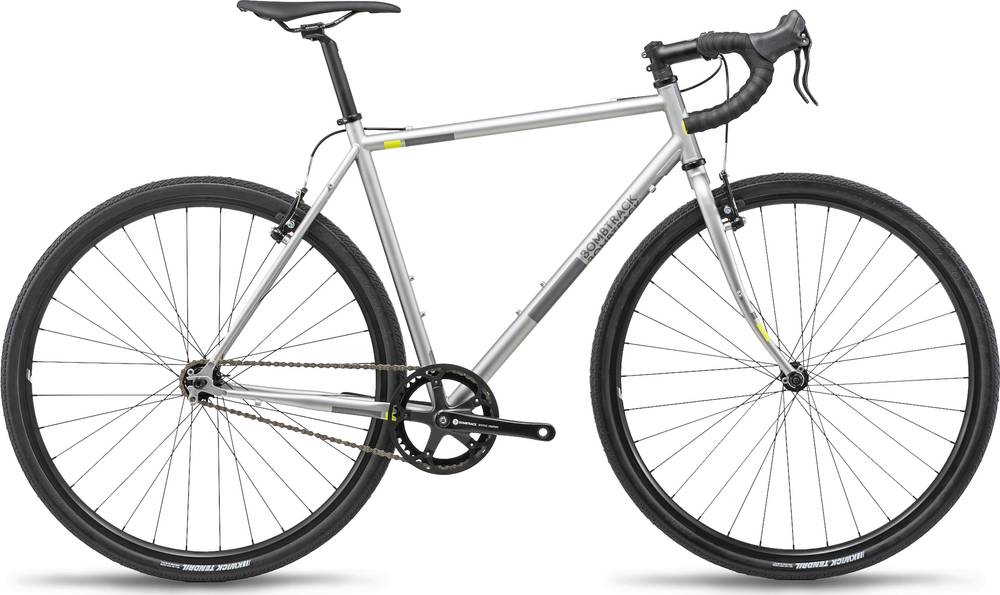

Arise 1 is a Bombtrack Arise model. Bombtrack released 22 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Gravel bikes
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Arise 1 has a weight of 10.6 kg (23.37 lbs). In short, the average Gravel bike weight is 30.38% lower than this one.
Overview of components
Fork material
The fork on this bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
As for the wheels, Bombtrack Arise 1 2019, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bombtrack Arise 1 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
