Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 double butted crmo frame,heat treated front triangle, replaceable hanger, TA dropouts, rack / fender mounts, 68 mm BSA shell
Suspension Fork
4130 crmo, tapered double butted blades, TA, with rack / fender mounts
Drivetrain
Rear Derailleur
-
Front Derailleur
-
Shift Levers
-
Cassette
16T heat treated crmo cog, 1/2" x 11/128"
Crank
BOMBTRACK TAF19 aluminum crank, 24 mm spindle, BOMBTRACK RIDGE aluminum chainring, narrow-wide, 42T, 1/2" x 11/128"
Bottom Bracket
BSA sealed BB, external cups
Chain
KMC X9 chain, 1/2" x 11/128", 98L
Pedals
WELLGO B109N flat pedal
Wheels
Front Hub
Front: BOMBTRACK ORIGIN sealed disc hub, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 12 x 142 mm thru-axle
Rear Hub
Front: BOMBTRACK ORIGIN sealed disc hub, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 12 x 142 mm thru-axle
Rims
Front: WTB ST i19 double wall, TCS 2.0, 32h, Rear: WTB ST i19 double wall, TCS 2.0, 32h
Tires
Front: KENDA FLINTRIDGE tire, 700C x 35C, Rear: KENDA FLINTRIDGE tire, 700C x 35C
Brakes
Brakes
TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors
Cockpit
Stem
BOMBTRACK ROAM forged aluminum stem, -7°
Handlebar
BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Grips
BOMBTRACK CONTROL bar tape
Headset
FSA ORBIT MX sealed external aheadset, 1.1/8"
Seat
Saddle
BOMBTRACK Comp saddle
Seatpost
BOMBTRACK BEECH aluminium seatpost, 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.49 mm | 1.52 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 575 mm | 585 mm | 605 mm | 621 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 81.3 mm | 74.8 mm | 71.5 mm | 65.1 mm |
| Stack | 506 mm | 532 mm | 561 mm | 595 mm |
| Reach | 352 mm | 361 mm | 376 mm | 391 mm |
| Top Tube Length | 508 mm | 525 mm | 549 mm | 575 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71 ° | 72 ° |
| Head Tube Length | 85 mm | 108 mm | 137 mm | 169 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 984 mm | 994 mm | 1014 mm | 1030 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 746 mm | 765 mm | 794 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

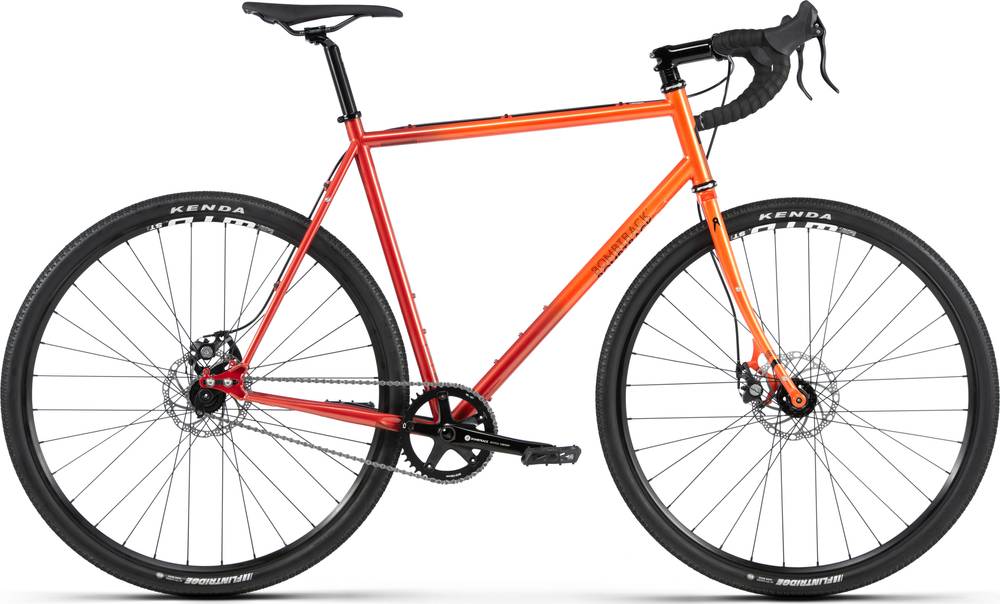

Arise 2 belongs to the Bombtrack Arise model. 22 bikes variations carry this model name so far. You can easily view all of the Bombtrack Arise bikes models from 2020, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 10.5 kg (23.15 lbs), the Arise 2 model is much heavier than average. In other words, this model is 29.15% heavier than the average Gravel bike.
Arise 2 components
Fork material
The fork on this bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
As for the wheels, Bombtrack Arise 2 2020, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Arise 2 has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
