Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 650b / 700c -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 double butted crmo, heat treated front triangle,TA sliding dropouts, rack / fender mounts,68 mm BSA BB shell
Suspension Fork
4130 crmo, TA, rack / fender mounts, internal hubdynamo cable routing
Drivetrain
Rear Derailleur
-
Front Derailleur
-
Shift Levers
-
Cassette
16T heat treated crmo cog, 1/2" x 11/128"
Crank
BOMBTRACK TAF19 aluminium crank, 24 mm spindle, BOMBTRACK RIDGE aluminium chainring, narrow-wide, 42T
Bottom Bracket
BSA sealed BB, external cups
Chain
KMC X9 chain, 1/2" x 11/128", 98L
Pedals
WELLGO B109N flat pedal
Wheels
Front Hub
Front: BOMBTRACK ARC sealed disc hub, 6-bolt disc, Rear: BOMBTRACK ARC sealed disc hub, 11-speed, 6-bolt disc
Rear Hub
Front: BOMBTRACK ARC sealed disc hub, 6-bolt disc, Rear: BOMBTRACK ARC sealed disc hub, 11-speed, 6-bolt disc
Rims
Front: WTB ST i19 double wall, TCS 2.0, 32h, Rear: WTB ST i19 double wall, TCS 2.0, 32h
Tires
Front: XS - S 650B VEE TIRE SPEEDSTER 38-584M - XL 700C VEE TIRE SPEEDSTER 40-622, Rear: XS - S 650B VEE TIRE SPEEDSTER 38-584M - XL 700C VEE TIRE SPEEDSTER 40-622
Brakes
Brakes
TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors
Cockpit
Stem
BOMBTRACK ROAM forged aluminium stem, -7°
Handlebar
BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Grips
BOMBTRACK CONTROL bar tape
Headset
NECO H282 sealed external aheadset, 1.1/8"
Seat
Saddle
BOMBTRACK ORIGIN saddle
Seatpost
BOMBTRACK BEECH 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.52 mm | 1.54 mm | 1.55 mm |
| Front Center | 582 mm | 602 mm | 619 mm | 639 mm | 664 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 64 mm | 60 mm | 68 mm | 65 mm | 65 mm |
| Stack | 500 mm | 530 mm | 564 mm | 594 mm | 623 mm |
| Reach | 343 mm | 362 mm | 371 mm | 386 mm | 401 mm |
| Top Tube Length | 498 mm | 521 mm | 546 mm | 570 mm | 594 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 130 mm | 150 mm | 180 mm | 210 mm |
| Chainstay Length | 412 mm | 412 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 987 mm | 1008 mm | 1037 mm | 1057 mm | 1082 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 725 mm | 754 mm | 791 mm | 820 mm | 849 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

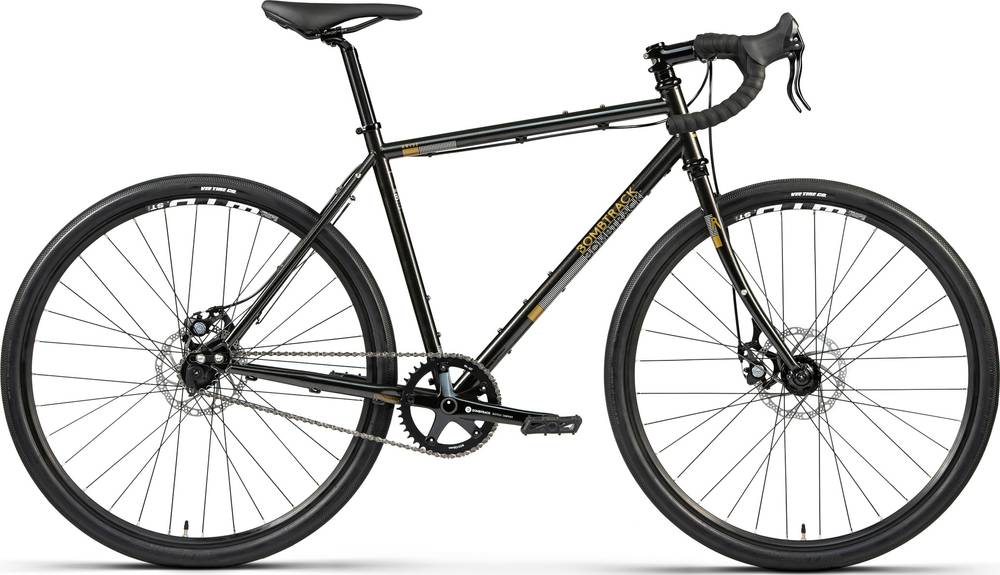

Arise is a Bombtrack Arise model. Bombtrack released 22 bikes variations of this model so far. You can easily view all of the Bombtrack Arise bikes models from 2021, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Gravel bikes average weight
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Bombtrack Arise it’s weighing 11.4 kg (25.13 lbs). At this weight, is much heavier than average. In conclusion, the average Gravel bike weighs 40.22% less than Arise.
Arise components
Fork material
The fork on this bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When it comes to wheels, the Arise bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Bombtrack Arise has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
