Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell
Suspension Fork
4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing
Drivetrain
Rear Derailleur
Microshift ADVENT RD-M6195M wide range, clutch
Front Derailleur
-
Shift Levers
MICROSHIFT ADVENT SL-M819-R Shifter 1 x 9
Cassette
MICROSHIFT ADVENT CS-H093 9-speed, 11 - 42 T
Crank
BOMBTRACK TAF19 aluminium crank, 24 mm spindle
Bottom Bracket
BSA sealed BB, external cups
Chain
KMC X9 chain, 1/2'' x 11/128'', 114L
Pedals
WELLGO B109N flat pedal
Wheels
Front Hub
BOMBTRACK ARC sealed hub, 6-bolt disc
Rear Hub
BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
Rims
WTB ST i19 double wall, TCS 2.0, 32h
Tires
XS - S VEE TIRE SPEEDSTER 38-584 /, M - XL VEE TIRE SPEEDSTER 40-622
Brakes
Brakes
SHIMANO BR-MT200 post mount hydraulic disc brake with 160 mm rotors
Cockpit
Stem
BOMBTRACK ROAM forged aluminium stem, -7°
Handlebar
BOMBTRACK ORIGIN flat bar, 31.8 mm, 8° backsweep
Grips
BOMBTRACK SCROLL grips
Headset
NECO H282 sealed external aheadset, 1.1/8''
Seat
Saddle
BOMBTRACK FUZZ
Seatpost
BOMBTRACK BEECH aluminium seatpost, 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Front Center | 582 mm | 602 mm | 619 mm | 639 mm | 664 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 64 mm | 60 mm | 68 mm | 65 mm | 65 mm |
| Stack | 500 mm | 530 mm | 564 mm | 594 mm | 623 mm |
| Top Tube Length | 498 mm | 521 mm | 546 mm | 570 mm | 594 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 130 mm | 150 mm | 180 mm | 210 mm |
| Chainstay Length | 412 mm | 412 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 987 mm | 1008 mm | 1037 mm | 1057 mm | 1082 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 725 mm | 754 mm | 791 mm | 820 mm | 849 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

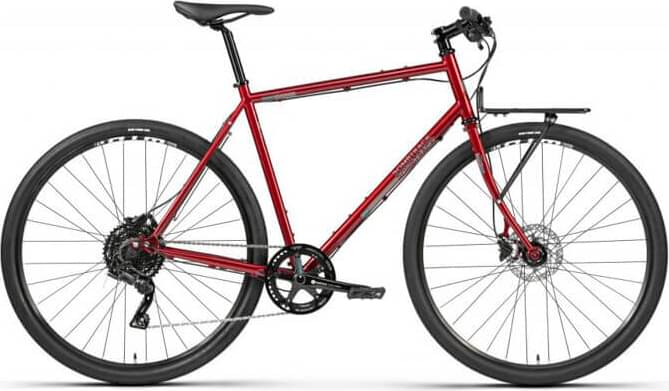

ARISE GEARED completes the Bombtrack Arise model. Bombtrack released 22 bikes variations of this model so far. You can easily view all of the Bombtrack Arise bikes models from 2022, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Gravel bikes average weight
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, ARISE GEARED has a weight of 12.6 kg (27.78 lbs). In short, the average Gravel bike weight is 54.98% lower than this one.
ARISE GEARED components
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
The wheels on ARISE GEARED are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Bombtrack ARISE GEARED has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Bombtrack ARISE GEARED bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
