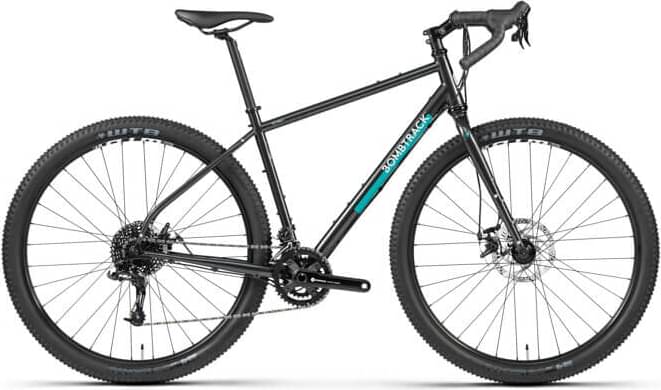

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Groupset GX, microSHIFT -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell
Suspension Fork
4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack /, triple cage mounts, internal hub dynamo cable routing
Drivetrain
Rear Derailleur
SRAM GX, long cage
Front Derailleur
Microshift FD-M612-B
Shift Levers
SRAM Apex double tap 2 x 10
Cassette
SRAM PG-1020 10-speed, 11 - 36 T
Crank
BOMBTRACK AMES forged aluminium crank, 24 mm spindle
Bottom Bracket
BSA sealed BB, external cups
Chain
KMC X10 chain, 1/2'' x 11/128'', 114L
Pedals
-
Wheels
Front Hub
BOMBTRACK GRAD sealed hub, 6-bolt disc
Rear Hub
BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
Rims
WTB ST i23 double wall, TCS 2.0, 32h
Tires
WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' /, M - XL 29'' x 2.0'', tubeless ready
Brakes
Brakes
TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors
Cockpit
Stem
BOMBTRACK WANDER forged aluminium stem, +17°
Handlebar
BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare
Grips
BOMBTRACK COMMAND bar tape
Headset
Sealed external aheadset, 1.1/2'' - 1.1/8''
Seat
Saddle
BOMBTRACK FUZZ
Seatpost
BOMBTRACK BEECH 27.2 mm x 400 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 6.329 mm | 6.682 mm | 7.106 mm | 7.6 mm | 7.941 mm |
| Front Center | 581 mm | 602 mm | 620 mm | 636 mm | 663 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 73 mm | 70 mm | 73 mm | 67 mm | 67 mm |
| Stack | 538 mm | 568 mm | 604 mm | 646 mm | 675 mm |
| Top Tube Length | 494 mm | 522 mm | 558 mm | 590 mm | 623 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 130 mm | 150 mm | 190 mm | 220 mm |
| Chainstay Length | 425 mm | 425 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1000 mm | 1021 mm | 1065 mm | 1082 mm | 1109 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 727 mm | 761 mm | 802 mm | 842 mm | 873 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
BEYOND 1 completes the Bombtrack Beyond model. Bombtrack released 19 bikes variations of this model so far. You can easily view all of the Bombtrack Beyond bikes models from 2022, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Gravel bikes average weight
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Bombtrack BEYOND 1 it’s weighing 12.9 kg (28.44 lbs). At this weight, is much heavier than average. In conclusion, the average Gravel bike weighs 58.67% less than BEYOND 1.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
When leaving the production line, the BEYOND 1 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BEYOND 1 comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Bombtrack BEYOND 1 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
