Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Groupset GX, microSHIFT -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell
Suspension Fork
4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack /, triple cage mounts, internal hub dynamo cable routing
Drivetrain
Rear Derailleur
SRAM GX, long cage
Front Derailleur
Microshift FD-M612-B
Shift Levers
SRAM Apex double tap 2 x 10
Cassette
SRAM PG-1020 10-speed, 11 - 36 T
Crank
BOMBTRACK AMES forged aluminium crank, 24 mm spindle
Bottom Bracket
BSA sealed BB, external cups
Chain
KMC X10 chain, 1/2'' x 11/128'', 114L
Pedals
-
Wheels
Front Hub
BOMBTRACK GRAD sealed hub, 6-bolt disc
Rear Hub
BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
Rims
WTB ST i23 double wall, TCS 2.0, 32h
Tires
Front: WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' /, M - XL 29'' x 2.0'', tubeless ready, Rear: WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' /, M - XL 29'' x 2.0'', tubeless ready
Brakes
Brakes
TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors
Cockpit
Stem
BOMBTRACK WANDER forged aluminium stem, +17°
Handlebar
BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare
Grips
BOMBTRACK COMMAND bar tape
Headset
Sealed external aheadset, 1.1/2'' - 1.1/8''
Seat
Saddle
BOMBTRACK FUZZ
Seatpost
BOMBTRACK BEECH 27.2 mm x 400 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.542 mm | 1.56 mm | 1.594 mm | 1.648 mm | 1.642 mm |
| Front Center | 581 mm | 602 mm | 620 mm | 636 mm | 663 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 73 mm | 70 mm | 73 mm | 67 mm | 67 mm |
| Stack | 538 mm | 568 mm | 604 mm | 646 mm | 675 mm |
| Reach | 349 mm | 364 mm | 379 mm | 392 mm | 411 mm |
| Top Tube Length | 494 mm | 522 mm | 558 mm | 590 mm | 623 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 130 mm | 150 mm | 190 mm | 220 mm |
| Chainstay Length | 425 mm | 425 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1000 mm | 1021 mm | 1065 mm | 1082 mm | 1109 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 727 mm | 761 mm | 802 mm | 842 mm | 873 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

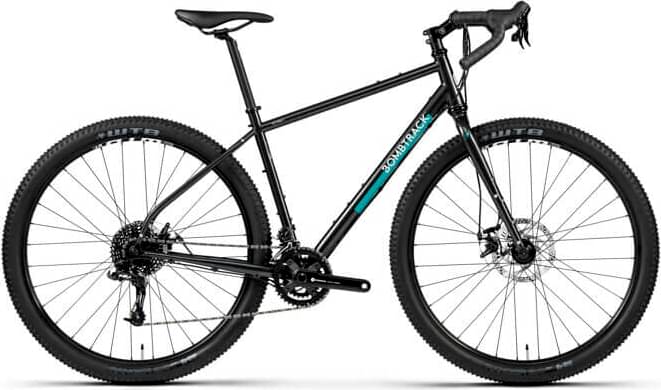

Model Overview
BEYOND 1 is a Bombtrack Beyond model. Bombtrack released 19 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 12.9 kg (28.44 lbs), Bombtrack bike is much heavier than average. In short, the average Gravel bike weight is 58.67% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
As for the wheels, Bombtrack BEYOND 1 2023, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BEYOND 1 comes with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Bombtrack BEYOND 1 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
