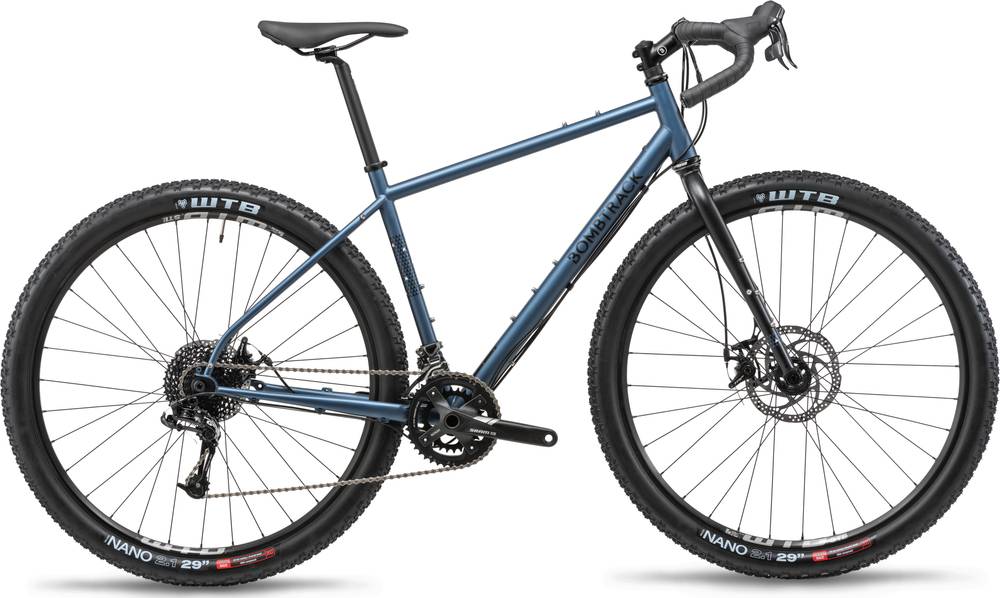

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 650b / 29" -
Groupset GX, X5 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS CROMOR double butted tubing, with cage, rack and fender mounts, replaceable hanger, 73 mm BSA shell
Suspension Fork
4130 crmo, tapered double butted blades, 1.1/2" - 1.1/8" tapered steerer, with fender / rack / triple cage mounts
Drivetrain
Rear Derailleur
SRAM GX rear derailleur, long cage
Front Derailleur
SRAM X5 front derailleur, high clamp
Shift Levers
SRAM Apex double tap 2 x 10
Cassette
SRAM PG-1020 10-speed cassette, 11-36T
Crank
SRAM X5 alloy crank, SRAM X5 alloy, 42/28T
Bottom Bracket
SRAM GXP BSA 73 mm
Chain
KMC X10EL chain, 1/2" x 11/128", 114L
Pedals
WELLGO LU-C29 alloy pedal
Wheels
Front Hub
Front: BOMBTRACK TITLE-DISC sealed, 6-bolt disc hub, 15 x 100 mm thru-axle, Rear: BOMBTRACK TITLE-DISC sealed hub,11-speed, 6-bolt disc, 12 x 142 mm thru-axle
Rear Hub
Front: BOMBTRACK TITLE-DISC sealed, 6-bolt disc hub, 15 x 100 mm thru-axle, Rear: BOMBTRACK TITLE-DISC sealed hub,11-speed, 6-bolt disc, 12 x 142 mm thru-axle
Rims
Front: WTB ST i19 double wall, tubeless profile, TCS, 32h, Rear: WTB ST i19 double wall, tubeless profile, TCS, 32h
Tires
Front: WTB NANO RACE folding tire, XS - S 27.5" x 2.1", M - XL 29" x 2.1", Rear: WTB NANO RACE folding tire, XS - S 27.5" x 2.1", M - XL 29" x 2.1"
Brakes
Brakes
TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors
Cockpit
Stem
BOMBTRACK WANDER forged alloy stem, +17°
Handlebar
BOMBTRACK BEYOND travel bar, 31.8 mm, 22° flare
Grips
BOMBTRACK COMMAND bar tape
Headset
FSA NO.21/12/44 sealed external aheadset, 1.1/2" - 1.1/8"
Seat
Saddle
BOMBTRACK ORIGIN saddle
Seatpost
BOMBTRACK BEECH alloy seatpost, 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.519 mm | 1.538 mm | 1.576 mm | 1.61 mm | 1.642 mm |
| Front Center | 580 mm | 601 mm | 619 mm | 635 mm | 663 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72 mm | 69 mm | 72 mm | 66 mm | 66 mm |
| Stack | 533 mm | 563 mm | 599 mm | 636 mm | 675 mm |
| Reach | 351 mm | 366 mm | 380 mm | 395 mm | 411 mm |
| Top Tube Length | 493 mm | 522 mm | 558 mm | 590 mm | 623 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 95 mm | 125 mm | 145 mm | 180 mm | 220 mm |
| Chainstay Length | 425 mm | 425 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 999 mm | 1020 mm | 1065 mm | 1081 mm | 1109 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 749 mm | 783 mm | 823 mm | 861 mm | 898 mm |
| Wheels | 650 | 650 | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Beyond is part of the Bombtrack Beyond model. Bombtrack launched 19 bikes of this model so far. You can easily view all of the Bombtrack Beyond bikes models from 2019, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Touring bikes average price
According to our math, the average price for a trustworthy Touring bike is 1007$. However, this doesn’t mean that if you spend less money on a Touring bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Touring bikes average weight
Touring bikes have an average weight of 13.35 kg (29.43 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 12.6 kg (27.78 lbs), Bombtrack bike is a bit lighter than average. In short, the average Touring bike weight is 5.95% higher than this one.
Beyond components
Fork material
Beyond has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
As for the wheels, Bombtrack Beyond 2019, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Beyond comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
