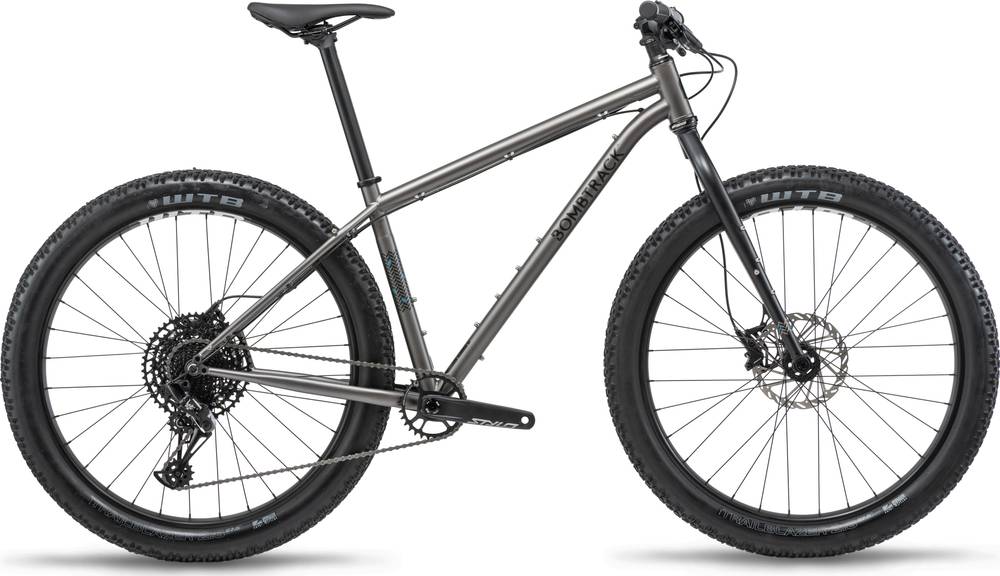

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 650b -
Groupset NX Eagle, Truvativ Stylo -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 double butted crmo tubing, with cage, rack and fender mounts, replaceable hanger, boost spacing, stealth dropper ready, 73 mm BSA shell
Suspension Fork
BOMBTRACK BPS 4130 crmo disc fork, tapered double butted blades, 1.1/2" - 1.1/8" tapered steerer, with fender / rack / triple cage mounts
Drivetrain
Rear Derailleur
SRAM NX EAGLE rear derailleur, long cage
Front Derailleur
-
Shift Levers
SRAM NX-EAGLE 12-speed trigger shifter
Cassette
SRAM PG-1230 Eagle 12-speed cassette, 11-50T
Crank
TRUVATIV STYLO 6K alloy crank, Boost DUB, SRAM X-SYNC Eagle steel, narrow-wide, 30T, 1/2" x 11/128"
Bottom Bracket
SRAM GXP DUB 73 mm
Chain
SRAM NX EAGLE chain, 1/2" x 11/128", 118L
Pedals
-
Wheels
Front Hub
Front: BOMBTRACK TRAIL sealed hub, 6-bolt disc, 15 x 110 mm thru-axle, Rear: BOMBTRACK TRAIL sealed hub, cassette, 6-bolt disc, 12 x 148 mm thru-axle
Rear Hub
Front: BOMBTRACK TRAIL sealed hub, 6-bolt disc, 15 x 110 mm thru-axle, Rear: BOMBTRACK TRAIL sealed hub, cassette, 6-bolt disc, 12 x 148 mm thru-axle
Rims
Front: WTB ST i35 TCS 2.0 double wall sleeved, 32h, Rear: WTB ST i35 TCS 2.0 double wall sleeved, 32h
Tires
Front: WTB TRAILBLAZER TCS LIGHT folding tire, 27.5" x 2.8", Rear: WTB TRAILBLAZER TCS LIGHT folding tire, 27.5" x 2.8"
Brakes
Brakes
SRAM LEVEL hydraulic disc brakes with 180 mm F / 160 mm R rotors
Cockpit
Stem
BOMBTRACK TRAMP forged alloy stem, 3°
Handlebar
BOMBTRACK TRAIL flat bar, 31.8 mm, 5° rise, 8° backsweep
Grips
BOMBTRACK LOCK 145 mm grips
Headset
FSA ORBIT ITA sealed semi integrated / external aheadset, 1.1/2" - 1.1/8"
Seat
Saddle
BOMBTRACK ORIGIN saddle
Seatpost
BOMBTRACK YEW alloy seatpost, 30.9 mm x 400 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 57cm | 60cm | 64cm | 665 |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.5 mm | 1.45 mm | 1.41 mm |
| Front Center | 660 mm | 688 mm | 711 mm | 731 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 88 mm | 85 mm | 81 mm | 78 mm |
| Stack | 625 mm | 635 mm | 646 mm | 658 mm |
| Reach | 396 mm | 422 mm | 446 mm | 467 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 465 mm | 505 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1099 mm | 1127 mm | 1150 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 805 mm | 830 mm | 852 mm | 877 mm |
| Wheels | 650 | 650 | 650 | 650 |
Model Overview
Beyond+ 1 completes the Bombtrack Beyondplus model. 7 bikes variations carry this model name so far. Take a sneak peek at all Bombtrack Beyondplus bikes models from 2019, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Touring bikes
According to our calculations, the average cost of a Touring bike that is reliable is 1007$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Touring bikes average weight
On a deeper look, we notice that the average weight of a Touring bike is 13.35 kg (29.43 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, Beyond+ 1 has a weight of 14.1 kg (31.09 lbs). In other words, this model is 5.62% heavier than the average Touring bike.
Overview of components
Fork material
Beyond+ 1 has a steel fork, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The Beyond+ 1 2019 bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Bombtrack Beyond+ 1 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
