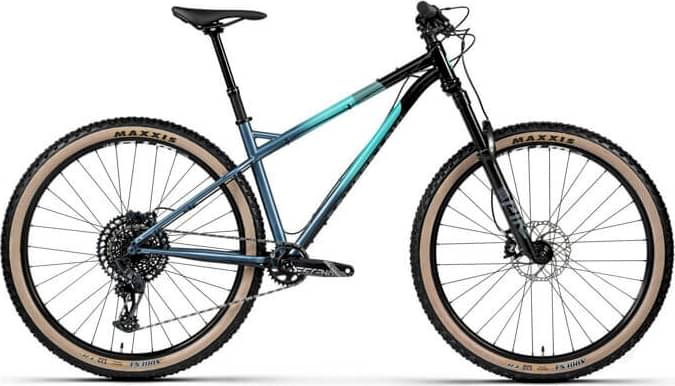

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Pike Select
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 double butted crmo, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell
Suspension Fork
ROCKSHOX PIKE SELECT suspension fork, 130 mm travel, 1.1/2" - 1.1/8"
Drivetrain
Rear Derailleur
SRAM GX EAGLE, clutch, long cage
Front Derailleur
-
Shift Levers
SRAM GX-EAGLE 12-speed trigger shifter
Cassette
SRAM XG-1275 EAGLE 12-speed, 10- 52 T
Crank
SRAM DESCENDANT aluminium crank, Boost DUB
Bottom Bracket
SRAM DUB BSA 73 mm
Chain
SRAM GX EAGLE chain, 1/2'' x 11/128'', 118L
Pedals
-
Wheels
Front Hub
BOMBTRACK GRAD Boost sealed hub, 6-bolt disc
Rear Hub
BOMBTRACK GON Boost sealed hub, XD driver, 6-bolt disc
Rims
WTB ST i29 double wall, TCS 2.0, 32h
Tires
Front: MAXXIS ARDENT 29'' x 2.4" TLR, tubeless ready, Rear: MAXXIS ARDENT 29'' x 2.4" TLR, tubeless ready
Brakes
Brakes
MAGURA TRAIL SPORT 4 piston front, 2 piston rear with 180 mm rotors
Cockpit
Stem
BOMBTRACK CHASE forged aluminium, 35 mm clamping diameter
Handlebar
BOMBTRACK ILLUSION flat bar, aluminium, 35 mm clamping diameter
Grips
BOMBTRACK RETURN 135 mm grips
Headset
Sealed semi integrated / external aheadset, 1.1/2'' - 1.1/8''
Seat
Saddle
BOMBTRACK FUZZ
Seatpost
KS E20i dropper seatpost, 30.9 mm, 150 mm travel, 485 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.38 mm | 1.36 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm |
| Front Center | 721 mm | 741 mm | 750 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 114 mm | 114 mm | 110 mm |
| Stack | 606 mm | 615 mm | 623 mm |
| Reach | 429 mm | 446 mm | 459 mm |
| Top Tube Length | 604 mm | 629 mm | 644 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67.5 ° |
| Head Tube Length | 110 mm | 120 mm | 125 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1146 mm | 1166 mm | 1176 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 779 mm | 798 mm | 821 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
CALE is part of the Bombtrack Cale model. Bombtrack launched 7 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.88 kg (28.4 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 13.8 kg (30.42 lbs), the CALE model is a bit heavier than average. In conclusion, the average Trail bike weighs 7.14% less than CALE.
CALE components
Fork
This bike has the RockShox Pike Select fork installed. The fork’s travel is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Bombtrack CALE 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The CALE has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
