Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell
Suspension Fork
ROCKSHOX 35 GOLD RL suspension fork, 130 mm travel, 1.1/2" - 1.1/8"
Drivetrain
Rear Derailleur
SRAM SX EAGLE, clutch, long cage
Front Derailleur
-
Shift Levers
SRAM SX-EAGLE 12-speed trigger shifter
Cassette
SRAM PG-1210 EAGLE 12-speed, 11-50T
Crank
TRUVATIV STYLO 6K aluminium crank, Boost DUB, SRAM EAGLE X-SYNC 2, narrow-wide, 30T
Bottom Bracket
SRAM DUB BSA 73 mm
Chain
SRAM NX EAGLE chain, 1/2" x 11/128", 118L
Pedals
-
Wheels
Front Hub
Front: BOMBTRACK GRAD Boost sealed hub, 6-bolt disc, Rear: BOMBTRACK GRAD Boost sealed hub, HG driver, 6-bolt disc
Rear Hub
Front: BOMBTRACK GRAD Boost sealed hub, 6-bolt disc, Rear: BOMBTRACK GRAD Boost sealed hub, HG driver, 6-bolt disc
Rims
Front: WTB ST i29 double wall, TCS 2.0, 32h, Rear: WTB ST i29 double wall, TCS 2.0, 32h
Tires
Front: KENDA HELLCAT PRO ATC 29 x 2.4" TLR, tubeless ready, Rear: KENDA HELLCAT PRO ATC 29 x 2.4" TLR, tubeless ready
Brakes
Brakes
SRAM LEVEL hydraulic disc brakes with 180 mm F / 160 mm R rotors
Cockpit
Stem
BOMBTRACK CHASE aluminium stem, 35 mm clamping diameter
Handlebar
BOMBTRACK ILLUSION flat bar, aluminium, 35 mm clamping diameter
Grips
BOMBTRACK RETURN 135 mm grips
Headset
Sealed integrated aheadset, 1.1/2" - 1.1/8"
Seat
Saddle
BOMBTRACK ORIGIN saddle
Seatpost
KS E20i dropper seatpost, 31.6 mm, 150 mm travel, 485 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.36 mm |
| Bottom Bracket Height | 319 mm | 319 mm |
| Front Center | 737 mm | 757 mm |
| Rake | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm |
| Stack | 620 mm | 629 mm |
| Reach | 448 mm | 462 mm |
| Top Tube Length | 626 mm | 651 mm |
| Seat Tube Angle | 74 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 460 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 436 mm | 436 mm |
| Wheelbase | 1167 mm | 1187 mm |
| Bottom Bracket Drop | 55 mm | 55 mm |
| Standover Height | 785 mm | 804 mm |
| Wheels | 29" | 29" |
Model Overview

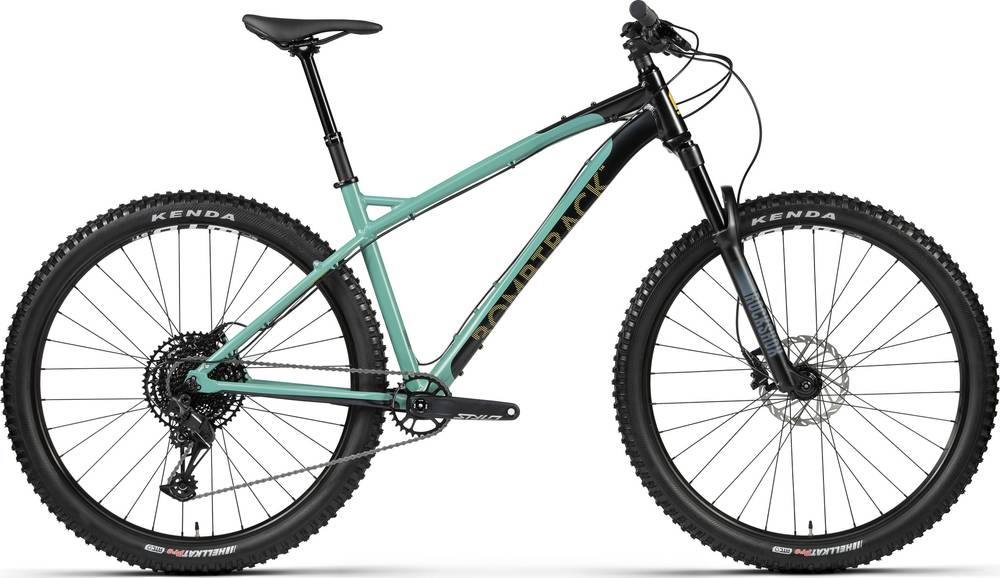

Cale AL belongs to the Bombtrack Cale model. Bombtrack released 7 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.8 kg (30.42 lbs), Bombtrack bike is a bit heavier than average. To sum up, it’s 6.32% heavier than the average weight of Trail bikes.
Cale AL components
Fork
Bombtrack Cale AL 2021 bike is equipped with the RockShox 35 Gold RL fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Cale AL model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cale AL has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Cale AL. Therefore, climbing or descending will be a breeze.
