Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell
Suspension Fork
ROCKSHOX 35 GOLD RL suspension fork, 130 mm travel, 1.1/2" - 1.1/8"
Drivetrain
Rear Derailleur
SRAM SX EAGLE, clutch, long cage
Front Derailleur
-
Shift Levers
SRAM SX-EAGLE 12-speed trigger shifter
Cassette
SRAM PG-1210 EAGLE 12-speed, 11 - 50 T
Crank
TRUVATIV STYLO 6K aluminium crank, Boost DUB
Bottom Bracket
SRAM DUB BSA 73 mm
Chain
SRAM NX EAGLE chain, 1/2'' x 11/128'', 118L
Pedals
-
Wheels
Front Hub
BOMBTRACK GRAD Boost sealed hub, 6-bolt disc
Rear Hub
BOMBTRACK GRAD Boost sealed hub, HG driver, 6-bolt disc
Rims
WTB ST i29 double wall, TCS 2.0, 32h
Tires
KENDA HELLCAT PRO ATC 29'' x 2.4" TLR, tubeless ready
Brakes
Brakes
SRAM LEVEL hydraulic disc brakes with 180 mm F / 160 mm R rotors
Cockpit
Stem
BOMBTRACK CHASE aluminium stem, 35 mm clamping diameter
Handlebar
BOMBTRACK ILLUSION flat bar, aluminium, 35 mm clamping diameter
Grips
BOMBTRACK RETURN 135 mm grips
Headset
Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Seat
Saddle
BOMBTRACK FUZZ
Seatpost
KS E20i dropper seatpost, 31.6 mm, 150 mm travel, 485 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Bottom Bracket Height | 319 mm | 319 mm |
| Front Center | 737 mm | 757 mm |
| Rake | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm |
| Stack | 620 mm | 629 mm |
| Top Tube Length | 626 mm | 651 mm |
| Seat Tube Angle | 74 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 460 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 436 mm | 436 mm |
| Wheelbase | 1167 mm | 1187 mm |
| Bottom Bracket Drop | 55 mm | 55 mm |
| Standover Height | 785 mm | 804 mm |
| Wheels | 29" | 29" |
Model Overview

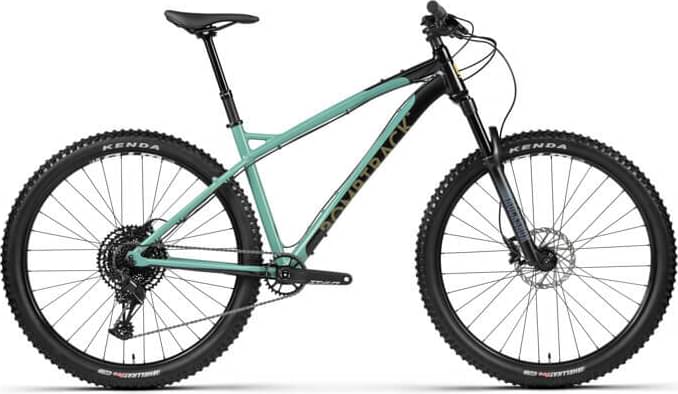

CALE AL completes the Bombtrack Cale model. Bombtrack released 7 bikes variations of this model so far. You can easily view all of the Bombtrack Cale bikes models from 2022, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Bombtrack CALE AL it’s weighing 13.8 kg (30.42 lbs). At this weight, is a bit heavier than average. To sum up, it’s 6.32% heavier than the average weight of Trail bikes.
CALE AL components
Fork
Bombtrack CALE AL 2022 bike is equipped with the RockShox 35 Gold RL fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on CALE AL are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The CALE AL has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
