Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS CROMOR double butted tubing, TA dropout, replaceable hanger, rack / fender mounts, 68 mm T47 shell
Suspension Fork
full carbon disc fork, TA, 1.1/2" - 1.1/8" tapered steerer, with fender / triple cage mounts
Drivetrain
Rear Derailleur
SRAM RIVAL 1 rear derailleur, clutch, long cage
Front Derailleur
-
Shift Levers
SRAM RIVAL 1 double tap 1 x 11
Cassette
SRAM PG-1130 11-speed cassette, 11-42T
Crank
BOMBTRACK LYER forged aluminum crank, direct mount interface, 30 mm spindle, CNC machined aluminum, narrow-wide, 40T, 1/2" x 11/128"
Bottom Bracket
T47 sealed BB for 30 mm spindle
Chain
KMC X11 chain, 1/2" x 11/128", 114L
Pedals
-
Wheels
Front Hub
Front: BOMBTRACK ORIGIN sealed disc hub, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 12 x 142 mm thru-axle
Rear Hub
Front: BOMBTRACK ORIGIN sealed disc hub, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 12 x 142 mm thru-axle
Rims
Front: WTB ST Light i19 double wall, TCS 2.0, 32h, Rear: WTB ST Light i19 double wall, TCS 2.0, 32h
Tires
Front: WTB RIDDLER TCS LIGHT folding tire, 700C x 37C, Rear: WTB RIDDLER TCS LIGHT folding tire, 700C x 37C
Brakes
Brakes
TRP SPYRE C flat mount mechanic disc brakes with 160 mm F / 140 mm R rotors
Cockpit
Stem
BOMBTRACK ROAM forged aluminum stem, -7°
Handlebar
BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Grips
BOMBTRACK COMMAND bar tape
Headset
FSA NO.21/12B/44 sealed external aheadset, 1.1/2" - 1.1/8"
Seat
Saddle
BOMBTRACK PRO saddle
Seatpost
BOMBTRACK BEECH aluminum seatpost, 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 587 mm | 597 mm | 610 mm | 627 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72.2 mm | 65.8 mm | 65.8 mm | 65.8 mm |
| Stack | 535 mm | 557 mm | 576 mm | 595 mm |
| Reach | 363 mm | 376 mm | 382 mm | 393 mm |
| Top Tube Length | 518 mm | 538 mm | 555 mm | 572 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 495 mm | 525 mm | 545 mm | 565 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 997 mm | 1008 mm | 1020 mm | 1038 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 774 mm | 791 mm | 809 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

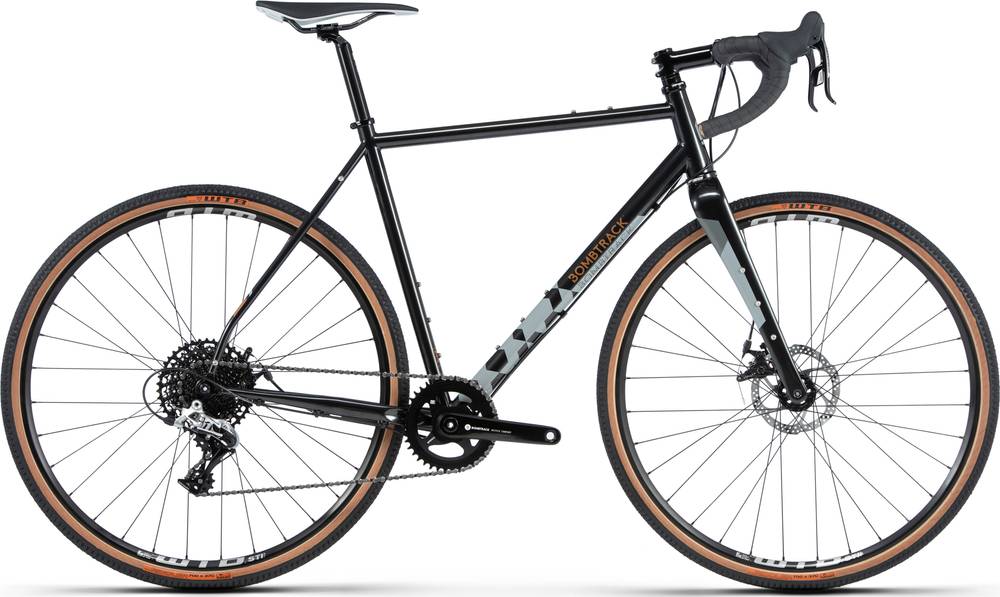

Hook 2 is a Bombtrack Hook model. Bombtrack launched 24 bikes of this model so far. Take a sneak peek at all Bombtrack Hook bikes models from 2020, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hook 2 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Hook 2 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Bombtrack Hook 2 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
