Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 650b -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium 3Al-2.5V, TA, rack / fender mounts, UDH derailleur hanger
Suspension Fork
Full carbon, TA, 1.1/2" - 1.1/8", triple cage mounts (can double as fender mounts), internal hub dynamo cable routing
Cockpit
Headset
Sealed external aheadset, 1.1/2" - 1.1/8"
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.54 mm | 1.53 mm | 1.55 mm | 1.54 mm |
| Front Center | 581 mm | 596 mm | 610 mm | 625 mm | 645 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 65 mm | 65 mm | 62 mm | 62 mm | 62 mm |
| Stack | 546 mm | 565 mm | 581 mm | 600 mm | 619 mm |
| Reach | 357 mm | 366 mm | 379 mm | 388 mm | 401 mm |
| Top Tube Length | 511 mm | 525 mm | 548 mm | 562 mm | 587 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 500 mm | 530 mm | 570 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 987 mm | 1002 mm | 1017 mm | 1032 mm | 1052 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 740 mm | 768 mm | 795 mm | 823 mm | 847 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

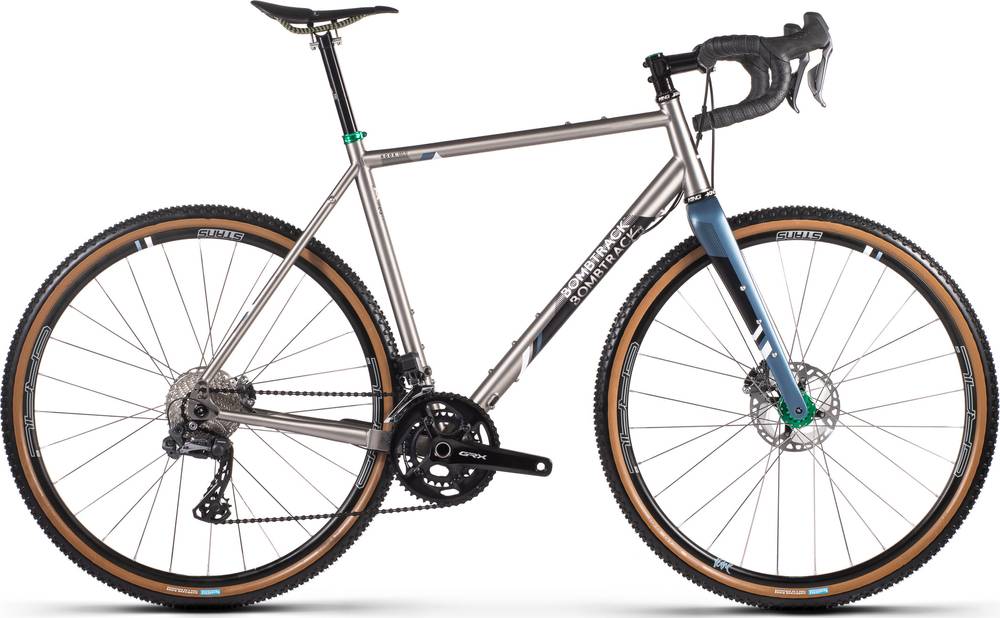

Hook EXT TI completes the Bombtrack Hook model. Bombtrack launched 24 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Hook EXT TI components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Hook EXT TI model has wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hook EXT TI comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
