Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 650b -
Groupset microSHIFT -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 triple butted aluminium, QR, rack / fender mounts,68 mm BSA shell
Suspension Fork
6061 aluminium, QR dropouts, with fender / rack / triple cage mounts,internal light cable routing
Drivetrain
Rear Derailleur
MICROSHIFT RD-M36S
Front Derailleur
-
Shift Levers
MICROSHIFT TS39-8 8-speed shift lever
Cassette
MICROSHIFT CS-H82 8-speed, 11-34T
Crank
BOMBTRACK AUDE aluminium crank, square taper, steel, 34T
Bottom Bracket
BSA sealed BB, 119 mm, square taper
Chain
KMC X8 chain, 1/2" x 3/32"
Pedals
WELLGO B109N flat pedal
Wheels
Front Hub
Front: BOMBTRACK ARC sealed, 6-bolt disc hub, hex key skewer, Rear: BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc, hex key skewer
Rear Hub
Front: BOMBTRACK ARC sealed, 6-bolt disc hub, hex key skewer, Rear: BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc, hex key skewer
Rims
Front: WTB ST i21 double wall, TCS 2.0, 32h, Rear: WTB ST i21 double wall, TCS 2.0, 32h
Tires
Front: KENDA KWICK SEVEN.5 650B x 45C, Rear: KENDA KWICK SEVEN.5 650B x 45C
Brakes
Brakes
SHIMANO BR-MT200 post mount hydraulic disc brake with160 mm rotors
Cockpit
Stem
BOMBTRACK ROAM forged aluminium stem, -7°
Handlebar
BOMBTRACK ORIGIN flat bar, 31.8 mm, 8° backsweep
Grips
BOMBTRACK LOCK 145 mm grips
Headset
NECO H282 sealed external aheadset, 1.1/8"
Seat
Saddle
BOMBTRACK ORIGIN Saddle
Seatpost
BOMBTRACK BEECH aluminium seatpost, 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.51 mm | 1.5 mm |
| Front Center | 595 mm | 619 mm | 645 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 74 mm | 74 mm |
| Stack | 570 mm | 588 mm | 612 mm |
| Reach | 373 mm | 390 mm | 408 mm |
| Top Tube Length | 545 mm | 568 mm | 593 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 175 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1030 mm | 1054 mm | 1080 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 771 mm | 795 mm | 821 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

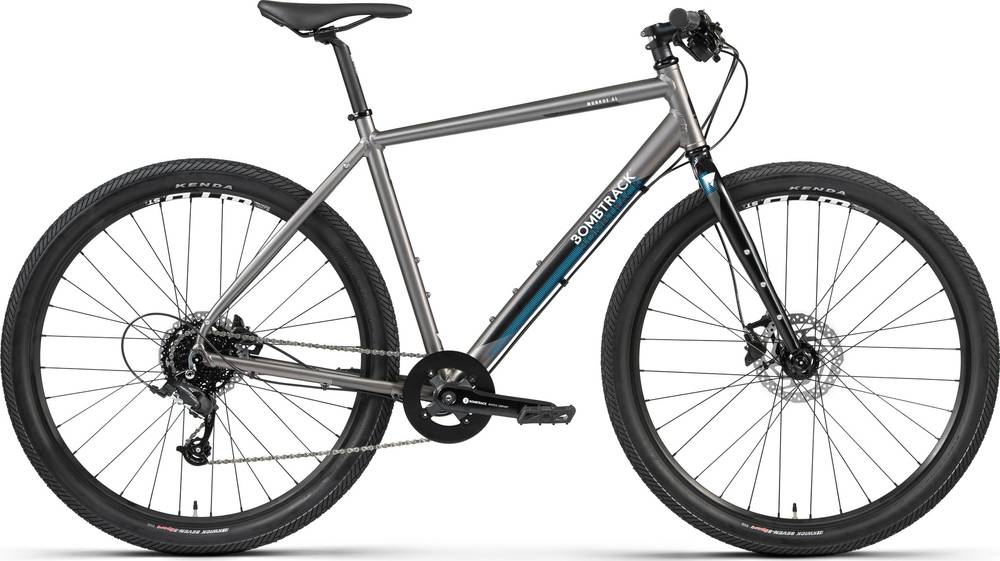

Munroe AL is a Bombtrack Munroe model. 8 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for General Urban bikes
According to our calculations, the average cost of a General Urban bike that is reliable is 499$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
General Urban bikes average weight
If we make a quick analysis of the average weight of a General Urban bike, we get 13.11 kg (28.9 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, Munroe AL has a weight of 10.7 kg (23.59 lbs). In other words, this model is 22.52% lighter than the average General Urban bike.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When it comes to wheels, the Munroe AL bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Munroe AL comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
