Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset microSHIFT, microSHIFT Marvo -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 hydroformed aluminium, TA, rack / fender mounts, 68 mm BSA BB shell
Suspension Fork
6061 aluminium, TA dropouts
Drivetrain
Rear Derailleur
MICROSHIFT RD-M46S
Front Derailleur
MICROSHIFT FD-M462-B
Shift Levers
MICROSHIFT SL-M859 9-speed shifter
Cassette
MICROSHIFT CS-H092 9-speed, 11 - 36 T
Crank
BOMBTRACK AUDE aluminium crank, square taper
Bottom Bracket
BSA sealed BB, 119 mm, square taper
Chain
KMC X9 chain, 1/2" x 11/128"
Pedals
WELLGO B109N flat pedal
Wheels
Front Hub
BOMBTRACK ARC sealed hub, 6-bolt disc
Rear Hub
BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
Rims
BOMBTRACK LUNE double wall, i24, 20"
Tires
KENDA KRANIUM 20 x 2.3"
Brakes
Brakes
SHIMANO BR-MT200 post mount hydraulic disc brake with 160 mm rotors
Cockpit
Stem
BOMBTRACK ROAM forged aluminium stem, -7°
Handlebar
BOMBTRACK ORIGIN flat bar, 31.8 mm, 8° backsweep
Grips
BOMBTRACK LOCK 145 mm grips
Headset
NECO H282 sealed external aheadset, 1.1/8''
Seat
Saddle
BOMBTRACK FUZZ
Seatpost
BOMBTRACK BEECH 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Front Center | 675 mm | 712 mm |
| Rake | 50 mm | 50 mm |
| Trail | 34 mm | 41 mm |
| Stack | 559 mm | 609 mm |
| Top Tube Length | 580 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 520 mm |
| Head Tube Angle | 71 ° | 70.5 ° |
| Head Tube Length | 300 mm | 350 mm |
| Chainstay Length | 432 mm | 432 mm |
| Wheelbase | 1102 mm | 1137 mm |
| Bottom Bracket Drop | 62 mm | 62 mm |
| Standover Height | 778 mm | 836 mm |
| Wheels | 650 | 650 |
About this model

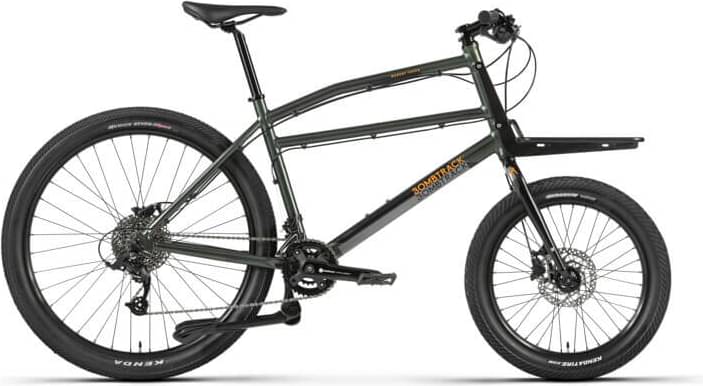

MUNROE CARGO completes the Bombtrack Munroe model. Bombtrack released 8 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Utility bikes average price
If you want to purchase a solid Utility bike, it is important to know that the average cost is 1069$. However, this doesn’t mean that if you spend less money on an Utility bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Utility bikes
If we make a quick analysis of the average weight of an Utility bike, we get 18.47 kg (40.72 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Bombtrack MUNROE CARGO it’s weighing 14.8 kg (32.63 lbs). At this weight, is much lighter than average. In other words, this model is 24.8% lighter than the average Utility bike.
Overview of components
Fork material
MUNROE CARGO has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the MUNROE CARGO model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Bombtrack MUNROE CARGO has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
