Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset microSHIFT -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 crmo front triangle, crmo dropouts with rack / fender mounts, 68 mm BSA BB shell
Suspension Fork
full 4130 crmo, 1'' threaded steerer, with rack and fender mounts
Drivetrain
Rear Derailleur
MICROSHIFT RD-R51M
Front Derailleur
-
Shift Levers
DIA Compe ENE W downtube shifter
Cassette
MICROSHIFT CS-H092 9-speed, 11 - 34 T
Crank
BOMBTRACK AF22 aluminium crank, square taper
Bottom Bracket
BSA sealed BB, 119 mm, square taper
Chain
KMC X9 chain, 1/2'' x 11/128''
Pedals
BOMBTRACK STROLL aluminium pedal
Wheels
Front Hub
BOMBTRACK DROME sealed front hub, 9 mm female bolt axle
Rear Hub
BOMBTRACK DROME sealed hub, 11-speed, 10 mm female bolt axle
Rims
BOMBTRACK M20 double wall, i18, 28h
Tires
KENDA KWICK ROLLER 700C x 28C
Brakes
Brakes
TEKTRO R359 aluminium caliper brakes
Cockpit
Stem
BOMBTRACK JAUNT aluminium quill stem, -17°
Handlebar
BOMBTRACK HORIZON flat bar, 560 mm, 25.4 mm, 8° backsweep
Grips
BOMBTRACK SPACE grip with leather bar tape
Headset
Sealed external headset, 1'' threaded
Seat
Saddle
BOMBTRACK HARRIS saddle
Seatpost
BOMBTRACK MYRTLE aluminium seatpost, 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.43 mm | 1.46 mm |
| Front Center | 596 mm | 601 mm | 617 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 73 mm | 64 mm | 60 mm |
| Stack | 502 mm | 532 mm | 559 mm |
| Reach | 363 mm | 372 mm | 383 mm |
| Top Tube Length | 519 mm | 537 mm | 557 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 101 mm | 126 mm | 153 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm |
| Wheelbase | 994 mm | 1000 mm | 1015 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 748 mm | 778 mm | 806 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

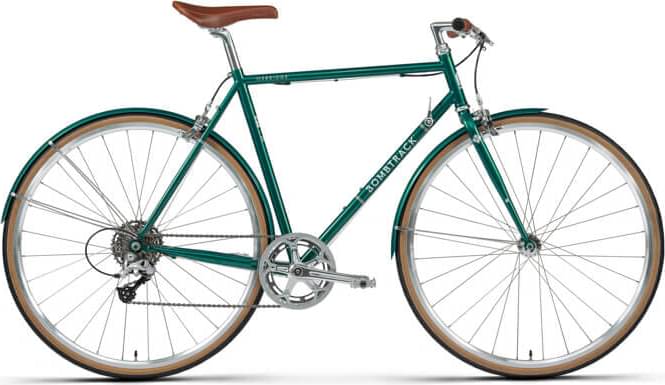

Model Overview
OXBRIDGE GEARED shop belongs to the Bombtrack Oxbridge model. There are 8 bikes that carry this model name. You can easily view all of the Bombtrack Oxbridge bikes models from 2022, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hipster bikes
Our math shows that the average cost of a dependable Hipster bike is 612$. However, even though the average price of a Hipster bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Hipster bikes average weight
On a deeper look, we notice that the average weight of a Hipster bike is 9.81 kg (21.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, OXBRIDGE GEARED shop has a weight of 10.9 kg (24.03 lbs). In other words, this model is 11.11% heavier than the average Hipster bike.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
The OXBRIDGE GEARED shop 2022 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Bombtrack OXBRIDGE GEARED shop has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
