Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 double butted aluminum, tapered head tube, TA dropouts, replaceable hanger, 86.5 mm T47 shell
Suspension Fork
full carbon TA disc fork, 1.1/2" - 1.1/8" tapered steerer with fender mounts
Drivetrain
Rear Derailleur
SRAM RIVAL 1 rear derailleur, clutch, long cage
Front Derailleur
-
Shift Levers
SRAM RIVAL 1 double tap 1 x 11
Cassette
SRAM PG-1130 11-speed cassette, 11-36T
Crank
BOMBTRACK LYER forged aluminum crank, direct mount interface, 30 mm spindle, CNC machined aluminum, narrow-wide, 40T, 1/2" x 11/128"
Bottom Bracket
T47 sealed BB for 30 mm spindle
Chain
KMC X11 chain, 1/2" x 11/128", 114L
Pedals
-
Wheels
Front Hub
Front: HUNT 4 SEASON V2 sealed hub, 6-bolt disc, 12 x 100 mm thru-axle, Rear: HUNT 4 SEASON V2 sealed hub, 11-speed, 6-bolt disc, 12 x 142 mm thru-axle
Rear Hub
Front: HUNT 4 SEASON V2 sealed hub, 6-bolt disc, 12 x 100 mm thru-axle, Rear: HUNT 4 SEASON V2 sealed hub, 11-speed, 6-bolt disc, 12 x 142 mm thru-axle
Rims
Front: HUNT 4 SEASON double wall asymmetric rim, TLC, i19, 24h, Rear: HUNT 4 SEASON double wall asymmetric rim, TLC, i19, 24h
Tires
Front: CHALLENGE GRIFO TLR folding tire, tanwall, 700C x 33C, Rear: CHALLENGE GRIFO TLR folding tire, tanwall, 700C x 33C
Brakes
Brakes
SRAM RIVAL flat mount hydraulic disc brakes with 140 mm rotors
Cockpit
Stem
RITCHEY COMP 4-AXIS 44 forged aluminum stem, -6°
Handlebar
RITCHEY COMP BUTANO drop bar, 31.8 mm, 4° backsweep, 12° flare
Grips
BOMBTRACK COMMAND bar tape
Headset
FSA ORBIT C40 sealed integrated aheadset, 1.1/2" - 1.1/8"
Seat
Saddle
BOMBTRACK COMP saddle
Seatpost
RITCHEY COMP 2-BOLT aluminum seatpost 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.49 mm | 1.49 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 583 mm | 598 mm | 611 mm | 627 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 70.9 mm | 67.6 mm | 64.5 mm | 64.5 mm |
| Stack | 533 mm | 558 mm | 582 mm | 598 mm |
| Reach | 368 mm | 379 mm | 390 mm | 401 mm |
| Top Tube Length | 532 mm | 550 mm | 568 mm | 584 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 139 mm | 162 mm | 179 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 998 mm | 1012 mm | 1026 mm | 1042 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 769 mm | 798 mm | 813 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

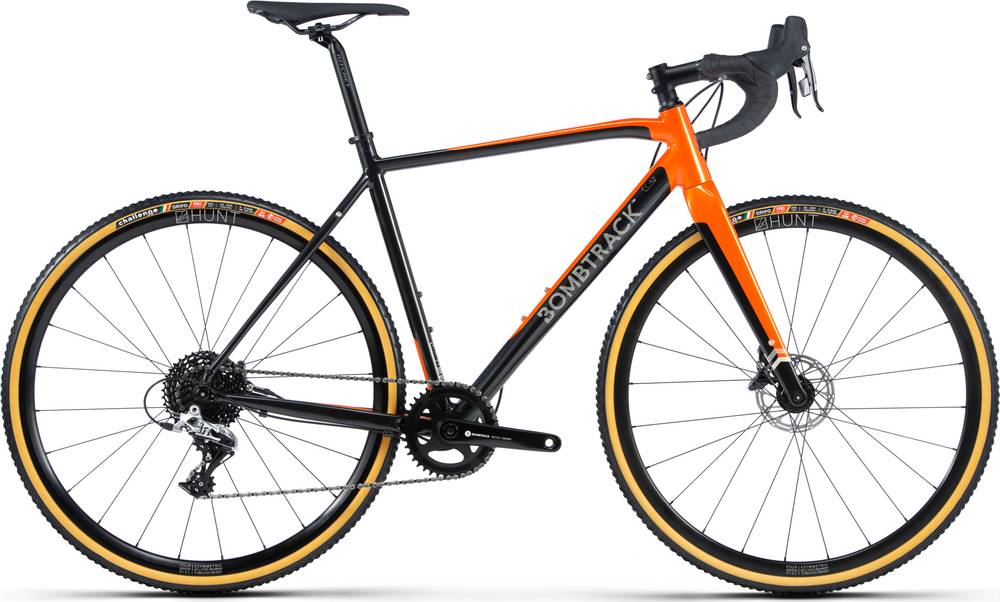

Tension 2 belongs to the Bombtrack Tension model. There are 16 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Cyclocross bikes average price
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Tension 2 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tension 2 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
