Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Force 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TORAY T700/T800 Hi-Mod carbon, TA dropout, replaceable hanger, 68 mm T47 shell
Suspension Fork
full carbon TA disc fork, 1.1/2" - 1.1/8" tapered steerer
Drivetrain
Rear Derailleur
SRAM FORCE 1 rear derailleur, clutch, medium cage
Front Derailleur
-
Shift Levers
SRAM FORCE 1 double tap 1 x 11
Cassette
SRAM PG-1130 11-speed cassette, 11-36T
Crank
SRAM FORCE 1 carbon crank, SRAM X-SYNC aluminum, narrow-wide, 40T, 1/2" x 11/128"
Bottom Bracket
T47 sealed BB for 30 mm spindle
Chain
KMC X11 chain, 1/2" x 11/128", 114L
Pedals
-
Wheels
Front Hub
Front: HUNT 4 SEASON V2 sealed hub, 6-bolt disc, 12 x 100 mm thru-axle, Rear: HUNT 4 SEASON V2 sealed hub, 11-speed, 6-bolt disc, 12 x 142 mm thru-axle
Rear Hub
Front: HUNT 4 SEASON V2 sealed hub, 6-bolt disc, 12 x 100 mm thru-axle, Rear: HUNT 4 SEASON V2 sealed hub, 11-speed, 6-bolt disc, 12 x 142 mm thru-axle
Rims
Front: HUNT 4 SEASON double wall asymmetric rim, TLC, i19, 24h, Rear: HUNT 4 SEASON double wall asymmetric rim, TLC, i19, 24h
Tires
Front: CHALLENGE GRIFO TLR folding tire, tanwall, 700C x 33C, Rear: CHALLENGE GRIFO TLR folding tire, tanwall, 700C x 33C
Brakes
Brakes
SRAM FORCE flat mount hydraulic disc brakes with 140 mm rotors
Cockpit
Stem
RITCHEY COMP 4-AXIS 44 forged aluminum stem, -6°
Handlebar
RITCHEY COMP BUTANO drop bar, 31.8 mm, 4° backsweep, 12° flare
Grips
BOMBTRACK COMMAND bar tape
Headset
FSA ORBIT C40 sealed integrated aheadset, 1.1/2" - 1.1/8"
Seat
Saddle
BOMBTRACK COMP saddle
Seatpost
RITCHEY COMP 2-BOLT aluminum seatpost 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.44 mm | 1.49 mm | 1.52 mm | 1.54 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 591 mm | 591 mm | 591 mm | 601 mm | 616 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 70.9 mm | 67.6 mm | 64.5 mm | 64.5 mm | 64.5 mm |
| Stack | 538 mm | 551 mm | 570 mm | 589 mm | 608 mm |
| Reach | 383 mm | 383 mm | 383 mm | 387 mm | 396 mm |
| Top Tube Length | 526 mm | 540 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 123 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1012 mm | 1012 mm | 1013 mm | 1023 mm | 1038 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 782 mm | 793 mm | 810 mm | 828 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

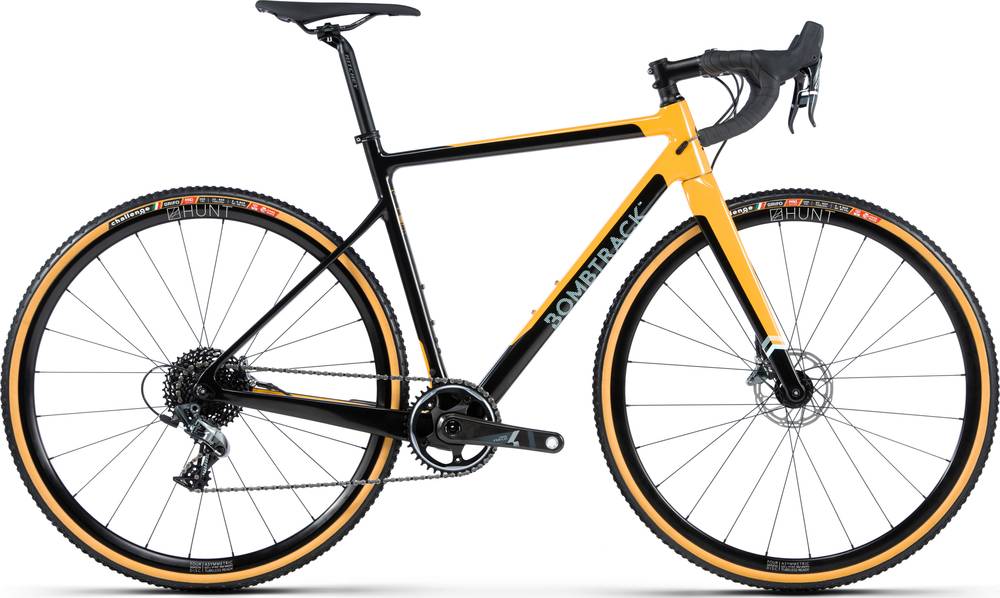

Tension C belongs to the Bombtrack Tension model. Bombtrack released 16 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Cyclocross bikes average price
According to our calculations, the average cost of a Cyclocross bike that is reliable is 2012$. However, even though the average price of a Cyclocross bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Tension C components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Tension C are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Bombtrack Tension C has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Tension C comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
