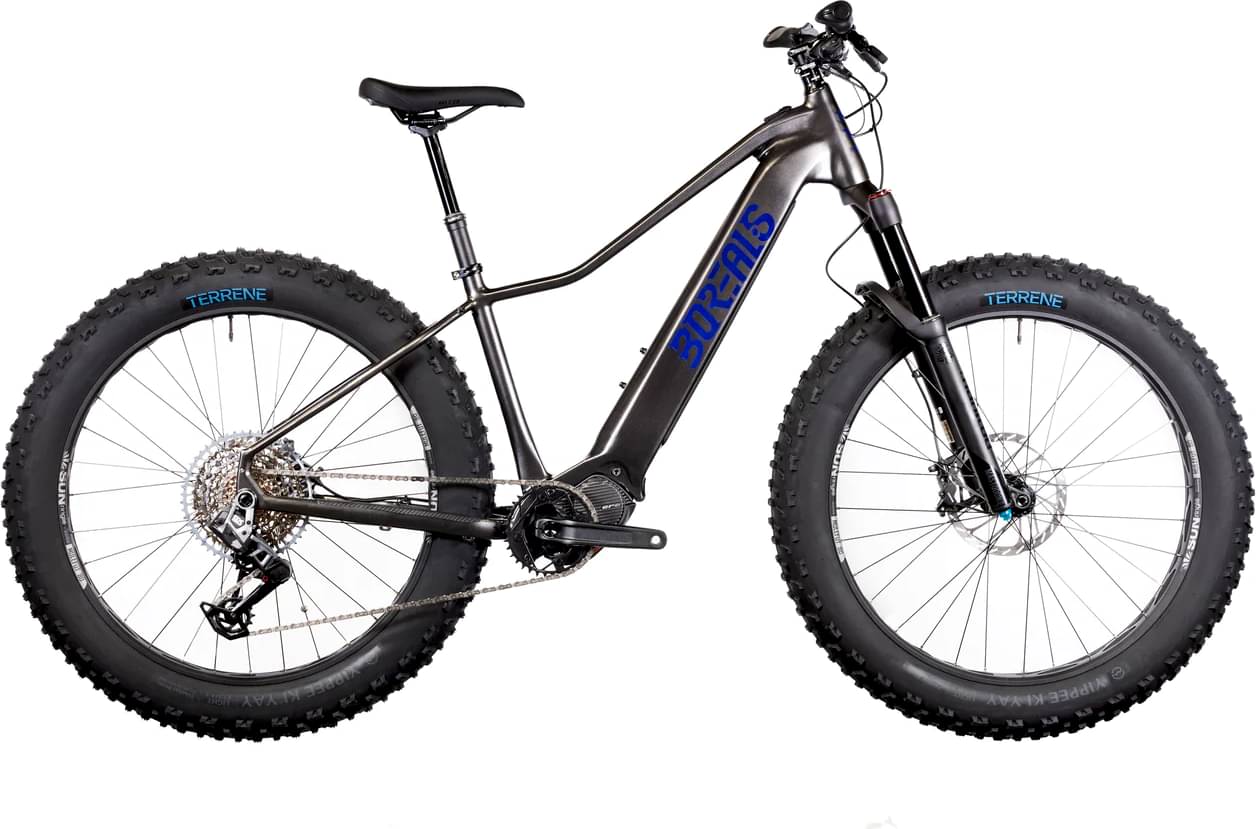

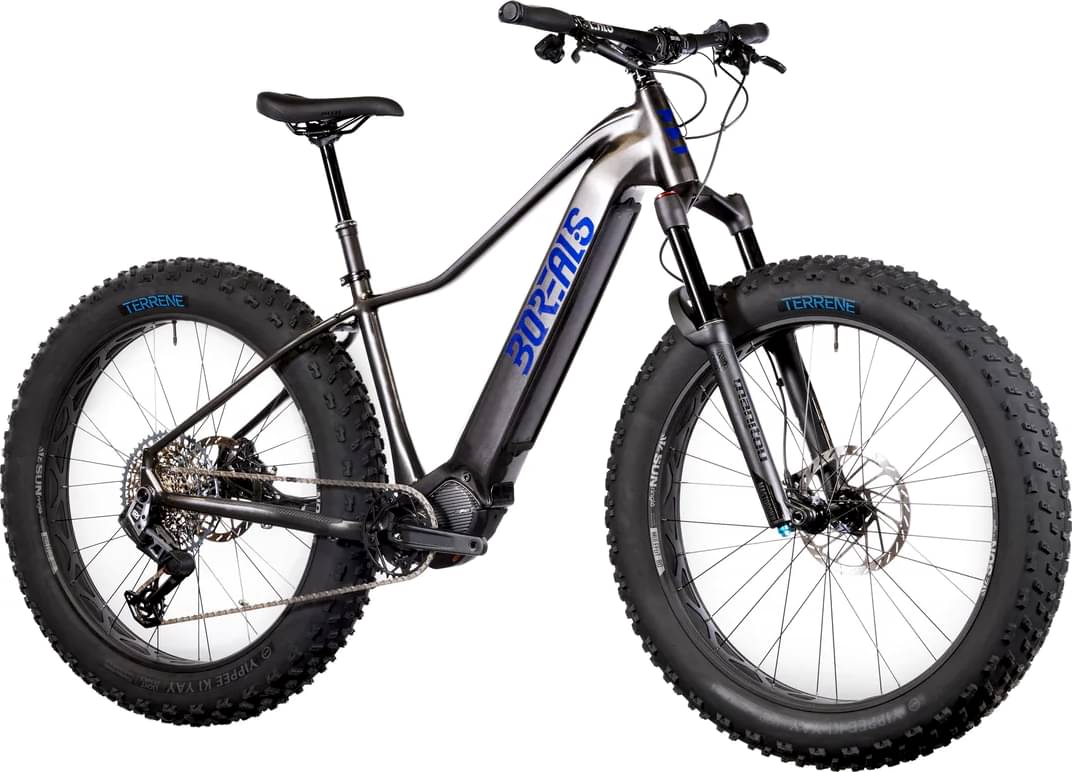

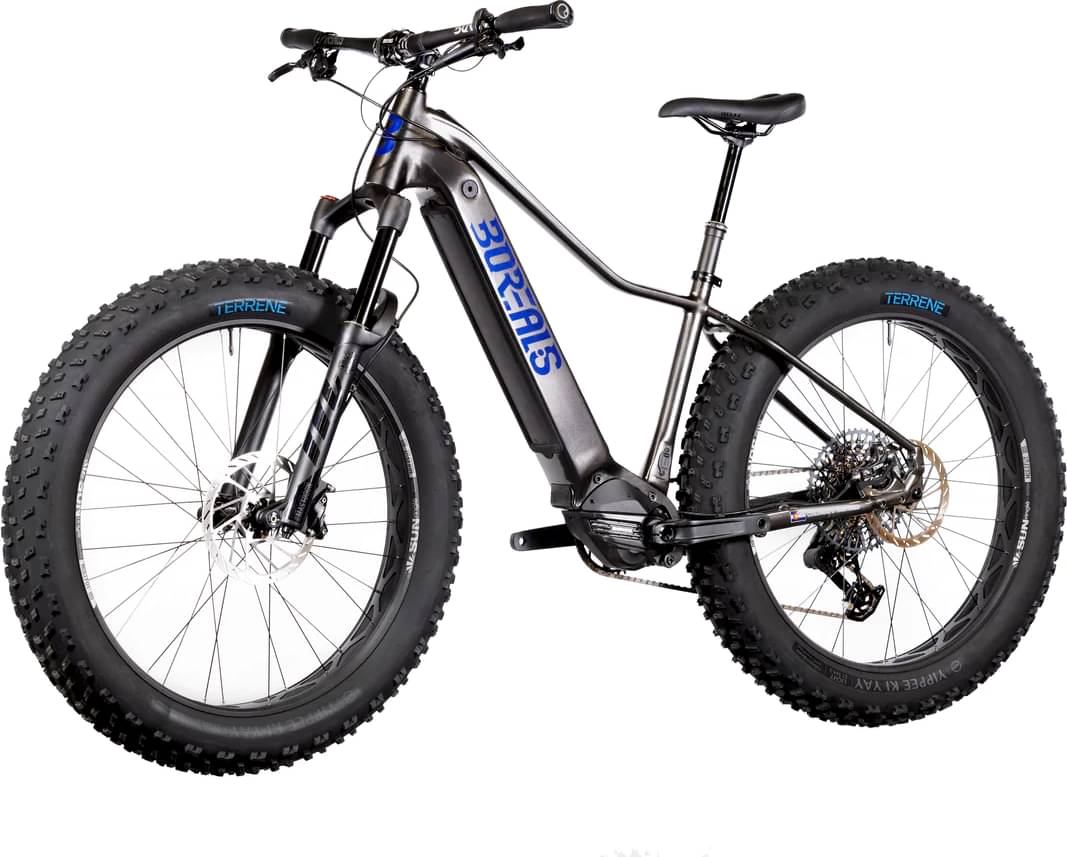

borealis KEYSTONE ELITE GX ⚡ 2023
2023 E-bike
Estimate price |
6,500$
Weight | 25.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Fork Manitou Mastodon Pro
-
Groupset GX Eagle Transmission, SRAM -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8036 (630Wh) -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 167cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Borealis Keystone Aluminum 15", 17", 19", 21"
Suspension Fork
Manitou Mastodon PRO EXT 120mm, 51mm offset
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Shift Levers
SRAM AXS Pod Contoller Right Bridge w/ MMX Clamp for GX Eagle Transmission
Cassette
SRAM GX Eagle Transmission Cassette 10-52T
Crank
SRAM Eagle Transmission E-Bike MTB Chainring 104 BCD 36T Steel
Chain
SRAM GX Eagle Transmission Flattop Chain
Wheels
Front Hub
Borealis Gen 4 15x150 / 12x197
Rear Hub
Borealis Gen 4 15x150 / 12x197
Rims
Your choice of SunRingle Mulefüt SL - 26x80, 27.5x80, or 27.5x65
Spokes
Straight Gauge 2.0 Black
Tires
Terrene Cake Eater 26x4.0 Light
Brakes
Brakes
SRAM G2 RS
Cockpit
Stem
Borealis 50mm
Handlebar
Borealis Carbon
Grips
Ergon GP1
Headset
FSA w/ Star Nut
Seat
Saddle
WTB Volt Medium Steel
Seatpost
KS Lev Integra 125mm (SM, MD) / 150mm (LG, XL)
Motor & Battery
Motor
Shimano DU-EP800
Battery
Shimano BT-E8036 (630Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.58 mm | 1.58 mm | 1.61 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 713 mm | 733 mm | 749 mm | 755 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 82 mm | 77 mm | 76 mm | 77 mm |
| Stack | 686 mm | 686 mm | 700 | 714 mm |
| Reach | 418 mm | 433 mm | 443 mm | 444 mm |
| Top Tube Length | 628 mm | 643 mm | 658 mm | 663 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1185 mm | 1205 mm | 1221 mm | 1227 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 157 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 177 cm | 188 cm | 195 cm |
About this model
KEYSTONE ELITE GX ? belongs to the Borealis E Keystone model. Borealis released 2 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Borealis KEYSTONE ELITE GX ⚡ 2023 is the cheapest e-bike model and costs 6500$. Borealis KEYSTONE ELITE GX ⚡ 2023 is the most expensive one and costs 6500$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 6500$. If we compare this with the average Trail e-bike cost we notice that the price is 93.16% more expensive.
Average weight for Trail e-bikes
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.02 kg (50.75 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 25.4 kg (56 lbs), Borealis e-bike is considerably heavier than average. To sum up, it’s 10.34% heavier than the average weight of Trail e-bikes.
Overview of components
Fork
The Manitou Mastodon Pro is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Borealis KEYSTONE ELITE GX ? 2023, has a 26″ aluminum model. These wheels give you great handling over your e-bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The KEYSTONE ELITE GX ? has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Borealis KEYSTONE ELITE GX ? e-bike has 4 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Borealis KEYSTONE ELITE GX ? includes a dropper post. Therefore, climbing or descending will be a breeze.
