Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion Hydroformed Aluminum, Integrated Head Tube, Breezer Eccentric Bottom Bracket, Dual Water Bottle Mounts, Breeze-In Belt-Drive Dropouts, Apex Disc Mount
Suspension Fork
Breezer Aluminum Disc, Low-Rider Rack Mounts
Drivetrain
Shift Levers
Shimano Alfine S700 8-Speed, RapidFire Plus
Cassette
Continental CDS Drive Belt Sprocket, 23T
Crank
Breezer Forged Aluminum, 2-Piece Design, Continental CDS Drive Belt Sprocket, 43T
Bottom Bracket
External Bearing System
Chain
Continental CDS High Performance Belt
Pedals
VP, Polished Aluminum Body, Chromoly Axle
Wheels
Rims
Shimano HB-TX505 QR Front / Alfine 8 Rear, 32H Centerlock Hubs, Vera DPD28 Disc-Only Rims
Tires
Continental, SPORT CONTACT II 700 x 35c, Reflective Strip
Brakes
Brakes
Shimano M365 Hydraulic Disc Brake, 160mm Front, 160mm Rear
Brake Levers
Shimano M365 Hydraulic Disc Brake, 3-Finger Lever
Cockpit
Stem
3D-Forged 6061 Aluminum, 31.8, 12°
Handlebar
Ergo Lite 6061 Aluminum, 31.8, 630mm Wide, 15mm Rise, 9 Degree Sweep
Grips
Ergon GP1
Headset
FSA 1 1/8", Fully Integrated, ACB-Sealed, 6.5mm Aluminum Top Cover
Seat
Saddle
WTB Silverado Comp
Seatpost
6061 Aluminum, 27.2mm, Forged alloy head, offset 12mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Front Center | 619 mm | 630 mm | 619 mm | 627 mm | 642 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 555 mm | 570 mm | 580 mm | 590 mm | 600 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1071 mm | 1082 mm | 1073 mm | 1081 mm | 1095 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 674 mm | 691 mm | 716 mm | 731 mm | 741 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

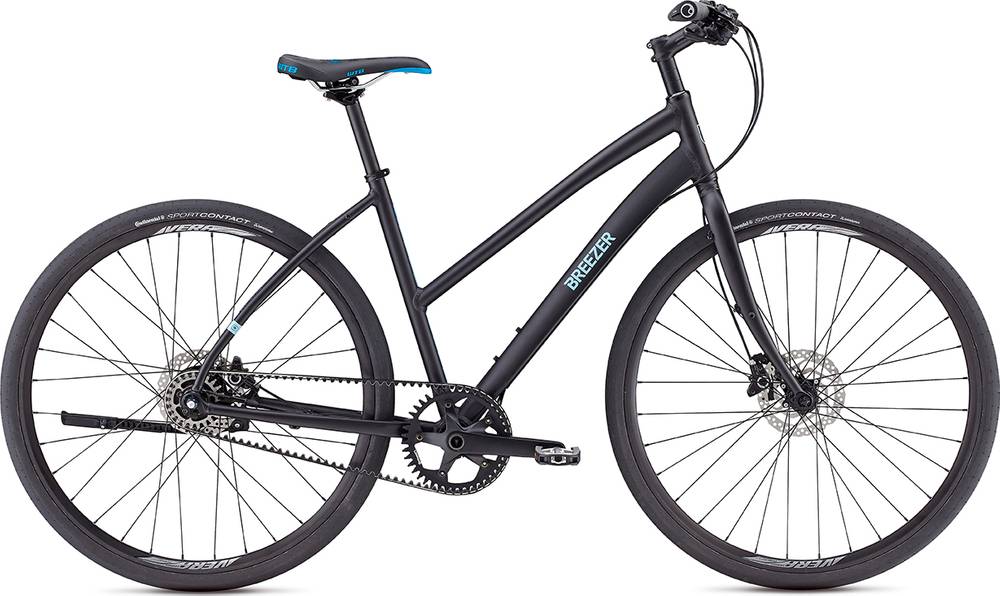

Beltway 8 ST is part of the Breezer Beltway model. Breezer launched 37 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Commuter bikes
Commuter bikes weigh an average of 14.29 kg (31.5 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Breezer Beltway 8 ST it’s weighing 11.65 kg (25.68 lbs). At this weight, is much lighter than average. In conclusion, the average Commuter bike weighs 22.66% more than Beltway 8 ST.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The Beltway 8 ST 2017 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Beltway 8 ST comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Breezer Beltway 8 ST bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
