Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset XT, Alivio -
Suspension Hardtail -
Motor Bosch 250W mid-drive -
Battery Bosch Active Line PowerPack 400, Lithium-Ion, 36V, 11Ah, 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed Aluminum, Integrated Head Tube, Bosch Interface
Suspension Fork
Suntour NEX MLO, MC-Lockout, Disc-Only, 63mm Travel
Drivetrain
Rear Derailleur
Shimano Deore XT Trekking 9-Speed, SGS
Shift Levers
Shimano Alivio 9-Speed
Cassette
Shimano HG 9-Speed, 11-34T
Crank
Miranda Alfa Isis, w/ Chainguard, 38T
Bottom Bracket
Bosch Drive Unit
Chain
Shimano HG 9-Speed
Pedals
VP, Polished Aluminum Body, Chromoly Axle
Wheels
Rims
Shimano 3D35 3W Dynamo CenterLock Disc QR Front/Shimano RM66 CenterLock Disc QR Rear, 32H Hubs, Mach 1 Aluminum Disc-Only Rims
Tires
Continental Contact 2 Reflex, 42-622
Brakes
Brakes
Shimano M395 Hydraulic Disc Brake, 160mm Front, 160mm Rear
Brake Levers
Shimano M395 Hydraulic Disc Brake
Cockpit
Stem
Breezer Forged 6061 Aluminum, 25.4, Adjustable 0~60°, Ahead-Style
Handlebar
Breezer City 6061 Aluminum, 25.4
Headset
1 1/8", Zero Stack, Sealed
Seat
Saddle
Selle Bassano Volare He
Seatpost
Breezer Suspension Aluminum, 40mm Travel, 27.2mm
Motor & Battery
Motor
Bosch Active Line Drive Unit, 250 watts, 25 km/h
Battery
Bosch Active Line PowerPack 400, Lithium-Ion, 36V, 11Ah, 400Wh
Remote
Bosch Active line Intuvia Computer Control Center
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Front Center | 644 mm | 655 mm | 672 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Top Tube Length | 578 mm | 588 mm | 608 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 135 mm | 170 mm | 220 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1121 mm | 1133 mm | 1149 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 758 mm | 769 mm | 784 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

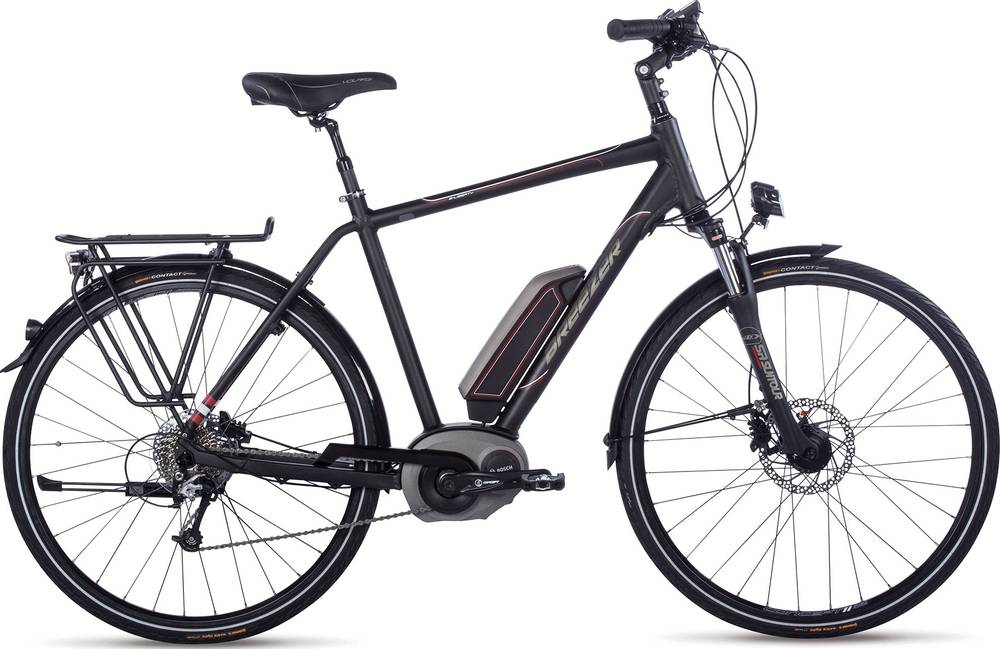

E-Liberty is a Breezer E E Liberty model. Breezer launched 6 e-bikes of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the E-Liberty model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Breezer E-Liberty has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
E-Liberty comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
