Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Alivio -
Suspension Hardtail -
Motor 250W mid-drive -
Battery TranzX Lithium-Polymer 36V 10Ah Battery (100km Range)* -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion Hydroformed Aluminum, Integrated Head Tube, Dual Water Bottle Mounts
Suspension Fork
Suntour NCX-D LO Lite, Hydraulic Speed-Loc, Disc-Only, 63mm Travel
Drivetrain
Rear Derailleur
Shimano Deore XT Trekking 9-Speed, SGS
Front Derailleur
Shimano Alivio Trekking 9-Speed, 34.9mm
Shift Levers
Shimano Alivio 27-Speed
Cassette
Shimano HG 9-Speed, 11-32T
Crank
Shimano M431 Trekking 9-Speed, w/ Chainguard, 48-36-26T
Bottom Bracket
TranzX Cartridge-Style, Torque Sensor Unit
Chain
KMC Z 9-Speed
Pedals
VP, Polished Aluminum Body, Chromoly Axle
Wheels
Rims
Shimano 3D30 3W Dynamo Disc QR Front/TranzX PST M08 36V 250W Disc Rear, 36H Hubs, Vera DPD23 Disc Rims
Tires
Schwalbe Energizer, w/ KevlarGuard, 40-622
Brakes
Brakes
Tektro Auriga SUB Trekking Hydraulic Disc Brake, 160mm Front, 160mm Rear
Brake Levers
Tektro Auriga SUB Trekking Hydraulic Disc Brake, 4-Finger Lever
Cockpit
Stem
Breezer Forged 6061 Aluminum, 25.4, Adjustable 0~60°, Ahead-Style
Handlebar
Breezer Ergo-L 6061 Aluminum, 25.4, 610mm Wide, 30mm Rise, 15° Sweep
Headset
FSA 1 1/8", Fully Integrated, 36° ACB-Sealed, 15mm Aluminum Top Cover
Seat
Saddle
Breezer Comfort Saddle
Seatpost
Breezer Aluminum, 27.2mm
Motor & Battery
Motor
TranzX PST M19 36V 250W Rear Motor
Battery
TranzX Lithium-Polymer 36V 10Ah Battery (100km Range)*
Remote
TranzX LCD DP10, Remote w/ Auto Sensor
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 614.3 mm | 621.8 mm | 616.1 mm | 626.8 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Top Tube Length | 570 mm | 575 mm | 580 mm | 590 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 400 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm | 155 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1062 mm | 1069 mm | 1064 mm | 1074 mm |
| Standover Height | 696 mm | 720 mm | 737 mm | 753 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

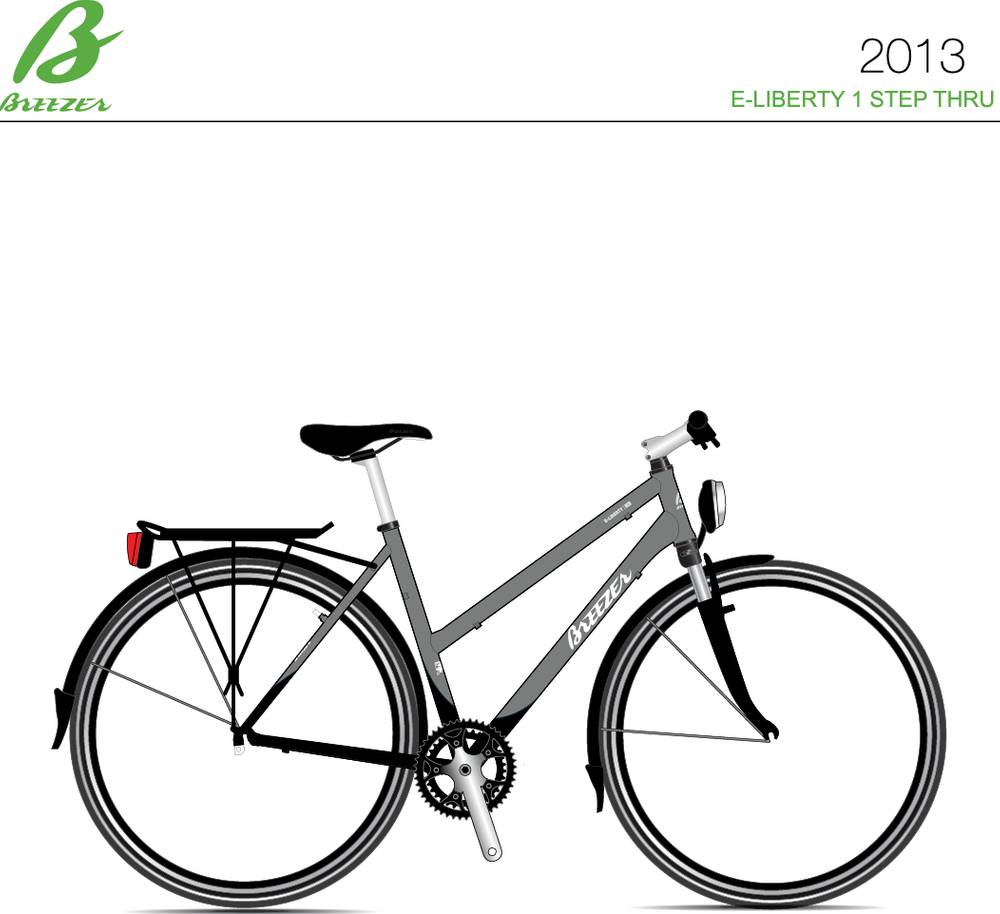

Model Overview
e-Liberty ST completes the Breezer E E Liberty model. Breezer released 6 e-bikes variations of this model so far. You can easily view all of the Breezer E E Liberty e-bikes models from 2013, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the e-Liberty ST model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Breezer e-Liberty ST e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
