Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W mid-drive -
Battery Bosch Active Line PowerPack 400, Lithium-Ion, 36V, 11Ah, 400Wh -
Drivetrain Internally Geared Hub -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed Aluminum, Integrated Head Tube, Bosch Interface
Suspension Fork
Suntour CR-8V, 50mm Travel
Drivetrain
Shift Levers
Shimano Nexus 8 Revo-Shift, 8-Speed
Cassette
Starr, 22T
Crank
Miranda Alfa Isis, w/ Chainguard
Bottom Bracket
Bosch Drive Unit
Chain
KMC Anti-Rust
Pedals
VP, Polished Aluminum Body, Chromoly Axle
Wheels
Rims
Shimano 3N30 3W Dynamo QR Front/Nexus 8 Rear w/ Coaster Brake, 36H Hubs, Rodi Scorpion Aluminum Double-wall Rims
Tires
Continental Contact 2 Reflex, 42-622
Brakes
Brakes
Magura HS 11 "Pure" Hydraulic Rim Brake
Brake Levers
Magura HS 11 "Pure" Hydraulic Levers
Cockpit
Stem
Breezer Forged 6061 Aluminum, 25.4, Adjustable 0~60°, Ahead-Style
Handlebar
Breezer City 6061 Aluminum, 25.4
Headset
1 1/8", Zero Stack, Sealed
Seat
Saddle
Selle Bassano Volare City
Seatpost
Breezer Suspension Aluminum, 40mm Travel, 27.2mm
Motor & Battery
Motor
Bosch Active Line Drive Unit, 250 watts, 25 km/h
Battery
Bosch Active Line PowerPack 400, Lithium-Ion, 36V, 11Ah, 400Wh
Remote
Bosch Active line Intuvia Computer Control Center
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Front Center | 655 mm | 670 mm | 685 mm |
| Rake | 44.5 mm | 44.5 mm | 44.5 mm |
| Top Tube Length | 599 mm | 614 mm | 629 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 185 mm | 195 mm | 195 mm |
| Chainstay Length | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1132 mm | 1148 mm | 1162 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 480 mm | 476 mm | 464 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

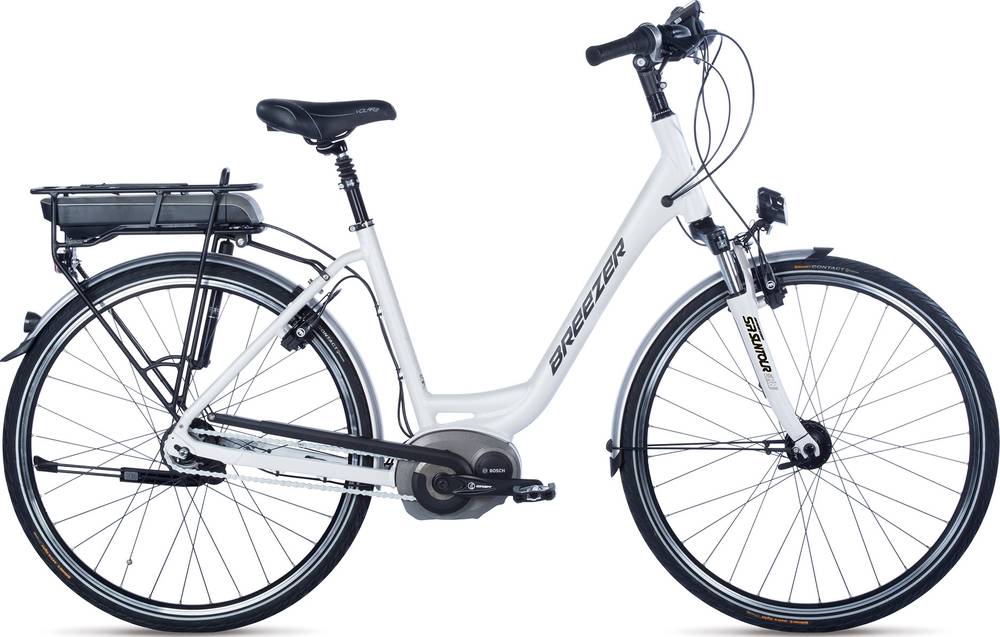

E-Uptown CB – LS belongs to the Breezer E E Uptown model. There are 8 e-bikes that carry this model name. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Cruiser e-bikes average price
If you want an acceptable Cruiser e-bike you should know that the average price is 1697$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cruiser e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
This e-bike has the SunTour fork installed. The fork’s travel is 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Breezer E-Uptown CB – LS 2014, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Breezer E-Uptown CB – LS is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
