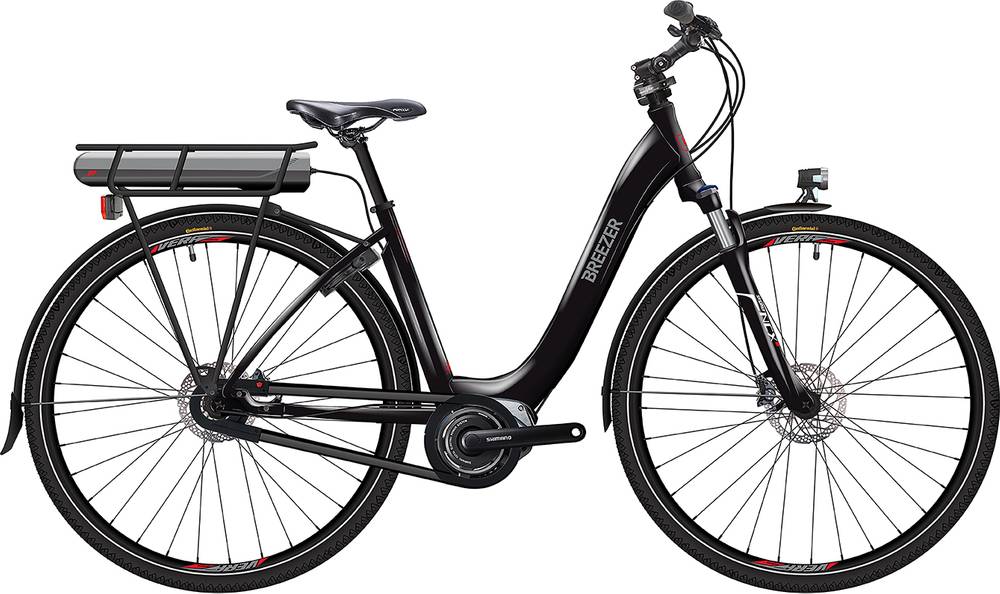

Breezer Greenway IG + LS Di2 2017
2017 E-bike
Weight | 22.52 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W mid-drive -
Battery Shimano STePS, Rack Type, 418Wh (36V 11.1Ah) -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer Hydroformed Aluminum, Integrated Head Tube, Shimano STePS Interface, Slide-In Dropouts for IG Hub, w/Disc Mount
Suspension Fork
Suntour NCX Disc LO 700C Coil, Travel: 63mm, Lockout, Aluminium steerer
Drivetrain
Shift Levers
Shimano STePS 8 speed Di2 controler, Automatic shifting option
Cassette
Shimano, 20T
Crank
Shimano STePS, 38T
Bottom Bracket
N/A
Chain
KMC Z-610 HXRB for E-Bikes, Anti-Rost, Heavy Duty
Pedals
VP, Polished Aluminum Body, Chromoly Axle
Wheels
Rims
Shimano HB-M3050 CenterLock Disc QR Front, Shimano Nexus 8 speed Di2 CenterLock Rear, 36H Hubs, Vera DPD28 Aluminum Double-Wall SSE Rims
Tires
Continental Town Ride Reflex 42-622, Puncture Protection
Brakes
Brakes
Shimano T446 Trekking Hydraulic Disc Brake, 160mm Front, 160mm Rear
Brake Levers
Shimano T445 Trekking Hydraulic Disc Brake, 3-Finger Lever
Cockpit
Stem
Speedlifter Twist + 3D-Forged 6061 Aluminum, 25.4, 0-60 Degree Adjustable
Handlebar
Ergo Lite 6061 Aluminum, 25.4, 590mm Wide, 26mm Rise, 33 Degree Sweep
Grips
Ergon GP1
Headset
FSA 1 1/8", Fully Integrated, ACB-Sealed, 6.5mm Aluminum Top Cover
Seat
Saddle
Selle Royal Freeway DRC / Bi-Color Design
Seatpost
6061 Aluminum, 27.2mm, Forged alloy head, offset 12mm
Motor & Battery
Motor
Shimano STePS mid-motor, 250W
Battery
Shimano STePS, Rack Type, 418Wh (36V 11.1Ah)
Remote
Shimano STePS SC-E6010, Center Mounted
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Front Center | 638 mm | 640 mm | 636 mm | 654 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 582 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 74 ° | 73 ° | 71 ° | 71 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 465 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1094 mm | 1091 mm | 1088 mm | 1106 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm |
| Standover Height | 369 mm | 369 mm | 382 mm | 387 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Greenway IG + LS Di2 is a Breezer E Greenway model. Breezer launched 23 e-bikes of this model so far. Take a sneak peek at all Breezer E Greenway e-bikes models from 2017, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Breezer Greenway IG + LS Di2 it’s weighing 22.52 kg (49.65 lbs). At this weight, is considerably lighter than average. In other words, this model is 11.9% lighter than the average Commuter e-bike.
Greenway IG + LS Di2 components
Fork
The Greenway IG + LS Di2 comes factory-installed with the SunTour NCX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When it comes to wheels, the Greenway IG + LS Di2 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
