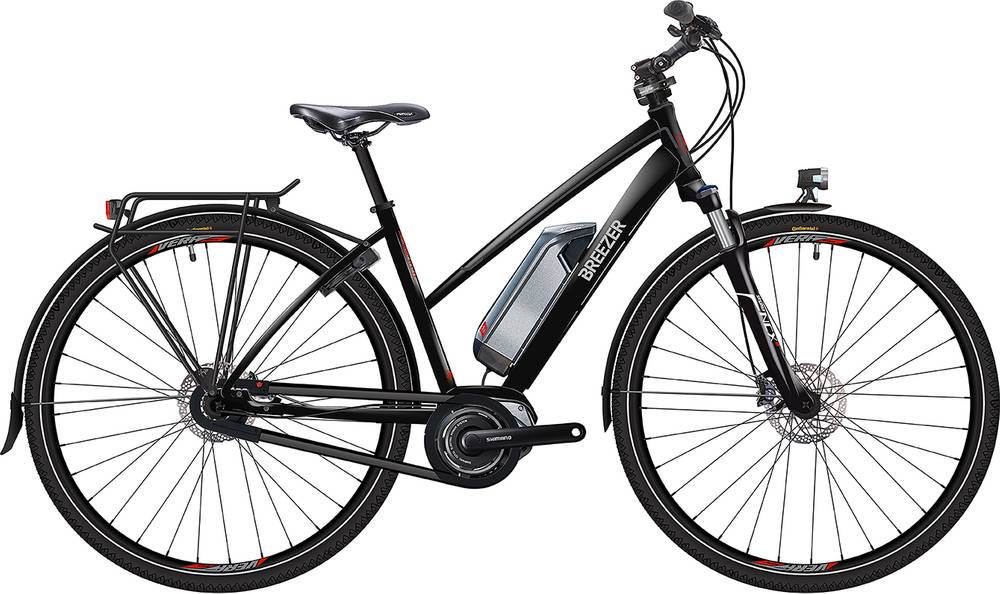

Breezer Greenway IG + ST Di2 2017
2017 E-bike
Weight | 21.95 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W mid-drive -
Battery Shimano STePS, Frame Type, 418Wh (36V 11.1Ah) -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion Hydroformed Aluminum, Integrated Head Tube, Shimano STePS Interface, Slide-In Dropouts for IG Hub, w/Disc Mount
Suspension Fork
Suntour NCX Disc LO 700C Coil, Travel: 63mm, Lockout, Aluminium steerer
Drivetrain
Shift Levers
Shimano STePS 8 speed Di2 controler, Automatic shifting option
Cassette
Shimano, 20T
Crank
Shimano STePS, 38T
Bottom Bracket
N/A
Chain
KMC Z-610 HXRB for E-Bikes, Anti-Rost, Heavy Duty
Pedals
VP, Polished Aluminum Body, Chromoly Axle
Wheels
Rims
Shimano HB-M3050 CenterLock Disc QR Front, Shimano Nexus 8 speed Di2 CenterLock Rear, 36H Hubs, Vera DPD28 Aluminum Double-Wall SSE Rims
Tires
Continental Town Ride Reflex 42-622, Puncture Protection
Brakes
Brakes
Shimano T446 Trekking Hydraulic Disc Brake, 160mm Front, 160mm Rear
Brake Levers
Shimano T445 Trekking Hydraulic Disc Brake, 3-Finger Lever
Cockpit
Stem
Speedlifter Twist + 3D-Forged 6061 Aluminum, 31.8, 0-60 Degree Adjustable
Handlebar
Ergo Lite 6061 Aluminum, 31.8, 610mm Wide, 15mm Rise, 9 Degree Sweep
Grips
Ergon GP1
Headset
FSA 1 1/8", Fully Integrated, ACB-Sealed, 6.5mm Aluminum Top Cover
Seat
Saddle
Selle Royal Freccia DRC / Bi-Color Design
Seatpost
6061 Aluminum, 27.2mm, Forged alloy head, offset 12mm
Motor & Battery
Motor
Shimano STePS mid-motor, 250W
Battery
Shimano STePS, Frame Type, 418Wh (36V 11.1Ah)
Remote
Shimano STePS SC-E6010, Center Mounted
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Front Center | 621 mm | 618 mm | 621 mm | 632 mm | 659 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 536 mm | 551 mm | 573 mm | 584 mm | 616 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1073 mm | 1070 mm | 1073 mm | 1084 mm | 1111 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 750 mm | 758 mm | 757 mm | 764 mm | 777 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Greenway IG + ST Di2 completes the Breezer E Greenway model. Breezer launched 23 e-bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 21.95 kg (48.39 lbs), Breezer e-bike is considerably lighter than average. In conclusion, the average Commuter e-bike weighs 14.81% more than Greenway IG + ST Di2.
Greenway IG + ST Di2 components
Fork
This e-bike has the SunTour NCX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the Greenway IG + ST Di2 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Breezer Greenway IG + ST Di2 e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
