Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Nexus, Shimano -
Suspension Hardtail -
Motor Shimano 250W mid-drive -
Battery Shimano STePS, Rack Type, 418Wh (36V 11.1Ah) -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer Hydroformed Aluminum, Integrated Head Tube, Shimano STePS Interface, Slide-In Dropouts for IG Hub, w/Disc Mount
Suspension Fork
Suntour NCX Disc LO 700C Coil, Travel: 63mm, Lockout, Aluminium steerer
Drivetrain
Shift Levers
Shimano Nexus 8 Revo-Shift, 8-Speed
Cassette
Shimano, 20T
Crank
Shimano STePS, 38T
Bottom Bracket
N/A
Chain
KMC Z-610 HXRB for E-Bikes, Anti-Rost, Heavy Duty
Pedals
VP, Polished Aluminum Body, Chromoly Axle
Wheels
Rims
Shimano HB-M3050 CenterLock Disc QR Front, Shimano Nexus 8 speed CenterLock Rear, 36H Hubs, Vera DPD28 Aluminum Double-Wall SSE Rims
Tires
Continental Town Ride Reflex 42-622, Puncture Protection
Brakes
Brakes
Shimano T446 Trekking Hydraulic Disc Brake, 160mm Front, 160mm Rear
Brake Levers
Shimano M315 Hydraulic Disc Brake, 160mm Front, 160mm Rear, 3-Finger Lever
Cockpit
Stem
3D-Forged 6061 Aluminum, 25.4, 0-60 Degree Adjustable
Handlebar
Ergo Lite 6061 Aluminum, 25.4, 590mm Wide, 26mm Rise, 33 Degree Sweep
Grips
Ergon GP1
Headset
FSA 1 1/8", Fully Integrated, ACB-Sealed, 6.5mm Aluminum Top Cover
Seat
Saddle
Selle Royal Freeway DRC / Bi-Color Design
Seatpost
6061 Aluminum, 27.2mm, Forged alloy head, offset 12mm
Motor & Battery
Motor
Shimano STePS mid-motor, 250W
Battery
Shimano STePS, Rack Type, 418Wh (36V 11.1Ah)
Remote
Shimano STePS SC-E6010, Center Mounted
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Front Center | 638 mm | 640 mm | 636 mm | 654 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 582 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 74 ° | 73 ° | 71 ° | 71 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 465 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1094 mm | 1091 mm | 1088 mm | 1106 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm |
| Standover Height | 369 mm | 369 mm | 382 mm | 387 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

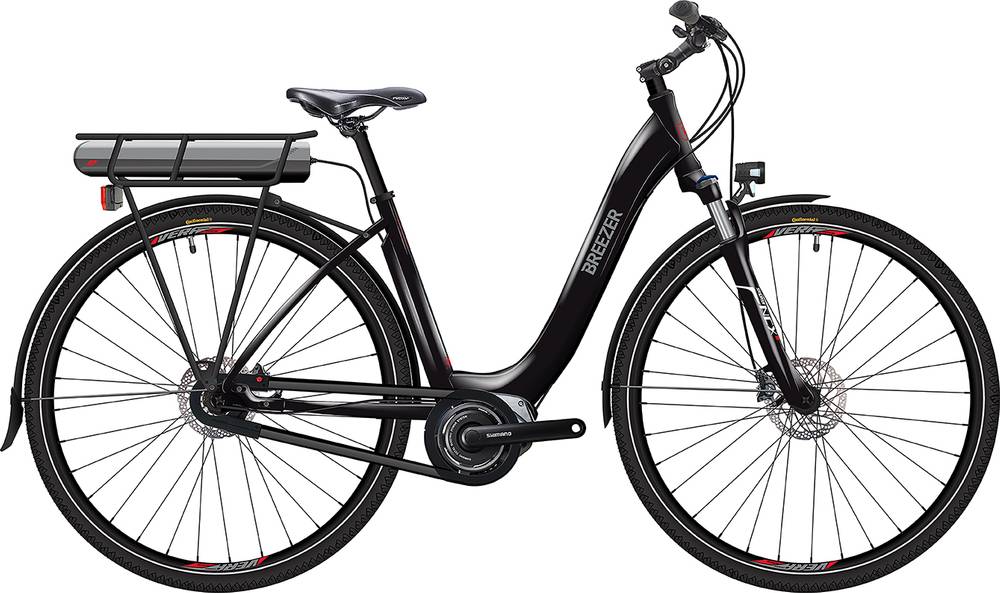

Greenway IG+ LS is a Breezer E Greenway model. 23 e-bikes variations carry this model name so far. You can easily view all of the Breezer E Greenway e-bikes models from 2017, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Breezer Greenway IG+ LS it’s weighing 22.35 kg (49.27 lbs). At this weight, is considerably lighter than average. In other words, this model is 12.75% lighter than the average Commuter e-bike.
Overview of components
Fork
The fork installed on this bike is the SunTour NCX model. The travel on this model is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The Greenway IG+ LS 2017 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
