Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset XT -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion hydroformed aluminum, integrated head tube, single water bottle mount
Suspension Fork
Breezer aluminum, aluminum steerer, Low-Rider rack mounts
Drivetrain
Rear Derailleur
Shimano Deore XT T780 10-Speed, SGS, Top-Normal Design
Front Derailleur
Shimano Deore XT T780 10-Speed, 34.9mm
Shift Levers
Shimano Deore XT M780 30-Speed
Cassette
Shimano HG-62 10-Speed, 11-34T
Crank
Shimano Deore XT T780 10-Speed, Hollowtech II, w/ Chainguard, 26-36-48T
Bottom Bracket
Shimano Deore XT BB70, Exterior Bearing System
Chain
Shimano HG-74 10-Speed
Pedals
VP 183, Polished Aluminum Body, CNC CrMo axle
Wheels
Rims
Shimano DH-3N72 QR Dynamo Front/Deore XT T780 Rear, 32H Hubs, Rigida ZAC 2000 Rims
Tires
Continental TownRIDE Reflex, 42-622
Brakes
Brakes
Shimano Deore XT T780 V-Brake
Brake Levers
Shimano Deore XT T780 V-Brake Levers
Cockpit
Stem
Breezer Aluminum, 31.8, 7° FlipFlop, Ahead Style
Handlebar
Breezer Aluminum, 31.8, 15mm rise, 630mm wide, 9° sweep
Headset
Oval 1 1/8", Fully Integrated, Full-Cartridge Angular Contact Bearings
Seat
Saddle
Selle Royal Premium Ariel
Seatpost
Breezer Aluminum, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm | 278 mm |
| Front Center | 626.2 mm | 636.9 mm | 647.6 mm | 668 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 570 mm | 575 mm | 580 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1069 mm | 1079 mm | 1090 mm | 1110 mm |
| Standover Height | 688 mm | 712 mm | 729 mm | 745 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

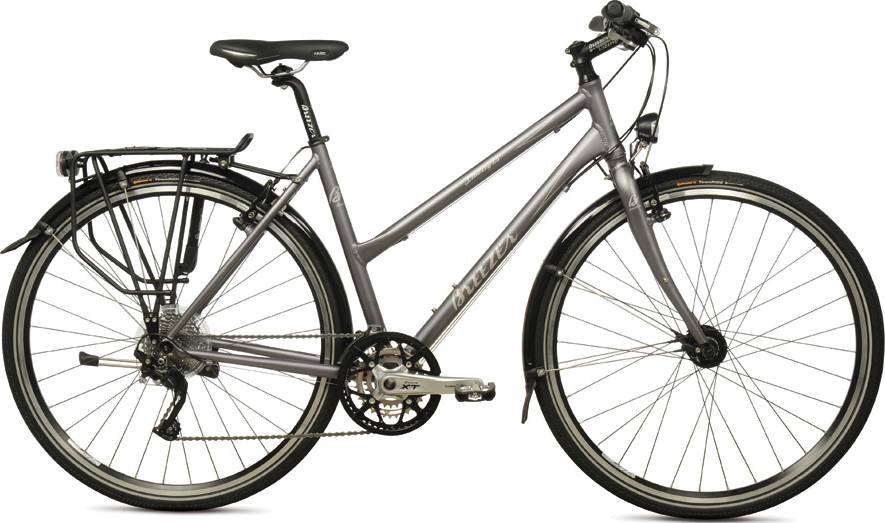

Liberty 1.5 Step-Thru (EU) is a Breezer Liberty model. Breezer released 141 bikes variations of this model so far. Take a sneak peek at all Breezer Liberty bikes models from 2012, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Breezer Liberty 1.5 Step-Thru (EU) 2012, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Liberty 1.5 Step-Thru (EU) comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
