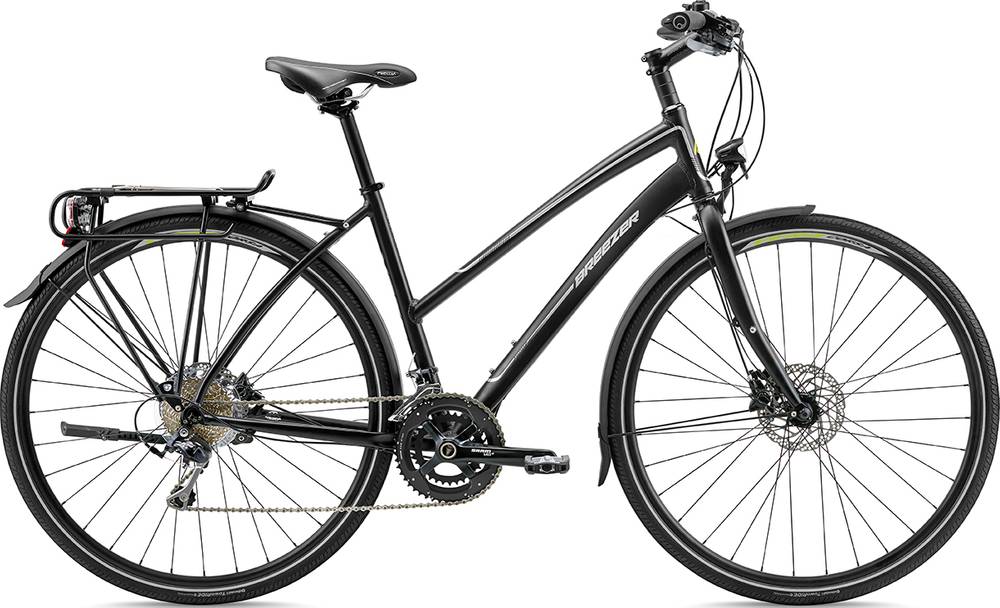

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion Hydroformed Aluminum, Integrated Head Tube, Single Water Bottle Mount
Suspension Fork
Breezer Aluminum Disc, Low-Rider Rack Mounts
Drivetrain
Rear Derailleur
Shimano 105 10-Speed
Front Derailleur
Shimano 105 10-Speed, 34.9mm
Shift Levers
Shimano Tiagra SL-R4600 2x10 speed
Cassette
Shimano Deore, CS-HG62, 10-Speed, 11-32T
Crank
SRAM Via GT 10-speed, 50-32 T
Bottom Bracket
SRAM GXP
Chain
KMC X10
Pedals
VP, Polished Aluminum Body, Chromoly Axle
Wheels
Rims
Shutter Precision PL-8, 6V, 3W 32H Front / Shimano FH-RS505 Cassette QR Rear, 32H Centerlock Hubs, Vera DPD22 Aluminum Double-Wall SSE Rims
Tires
Continental Town Ride Reflex 42-622, Puncture Protection
Brakes
Brakes
Shimano BL-T 445 Hydraulic Disc Brake, 160mm Front, 160mm Rear
Brake Levers
Shimano BL-T 445 Hydraulic Disc Brake, 4-Finger Lever
Cockpit
Stem
Breezer Forged 6061 Aluminum, 31.8, 7°
Handlebar
Breezer Ergo Lite 6061 Aluminum, 31.8, 610mm Wide, 15mm Rise, 15° Sweep
Headset
FSA 1 1/8", Fully Integrated, 36° ACB-Sealed, 15mm Aluminum Top Cover
Seat
Saddle
Selle Royal Freccia DRC / Look In Design
Seatpost
Breezer Aluminum, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 275 mm | 275 mm | 280 mm | 280 mm | 280 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 535.5 mm | 555.6 mm | 575.2 mm | 585.9 mm | 596.5 mm |
| Seat Tube Angle | 74.7 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1061 mm | 1069 mm | 1062 mm | 1071 mm | 1085 mm |
| Standover Height | 659 mm | 675 mm | 700 | 715 mm | 726 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Liberty 1R + ST belongs to the Breezer Liberty model. 141 bikes variations carry this model name so far. Take a sneak peek at all Breezer Liberty bikes models from 2016, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid bikes average price
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 13.7 kg (30.2 lbs), the Liberty 1R + ST model is slightly lighter than average. In conclusion, the average Hybrid bike weighs 1.09% more than Liberty 1R + ST.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, Breezer Liberty 1R + ST 2016, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Breezer Liberty 1R + ST is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Liberty 1R + ST comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
