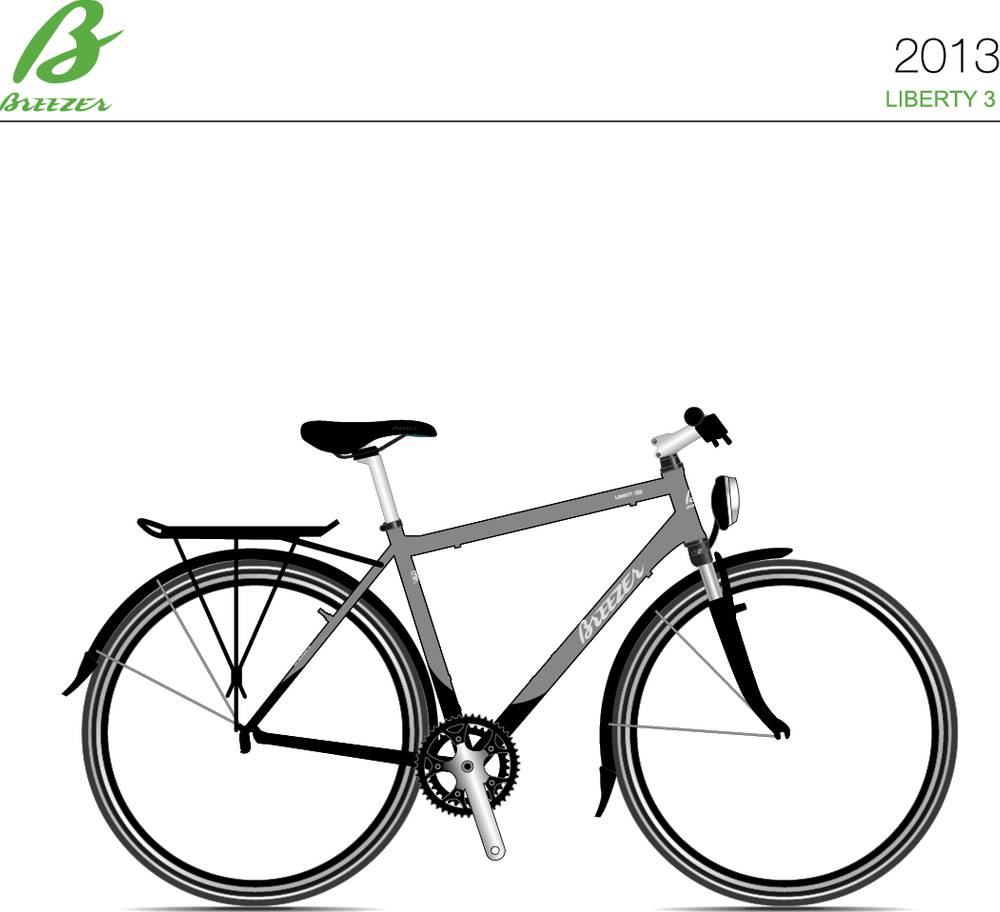

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion Hydroformed Aluminum, Integrated Head Tube, Dual Water Bottle Mounts
Suspension Fork
Suntour NCX-D MLO, MC-Lockout, Disc-Only, 63mm Travel
Drivetrain
Rear Derailleur
Shimano Deore Trekking 9-Speed, SGS
Front Derailleur
Shimano Acera Trekking 9-Speed, 34.9mm
Shift Levers
Shimano Alivio 27-Speed
Cassette
Shimano HG 9-Speed, 11-32T
Crank
Shimano M431 Trekking 9-Speed, w/ Chainguard, 48-36-26T
Bottom Bracket
Shimano ES25, Octalink, Hollow-Type
Chain
KMC Z 9-Speed
Pedals
VP, Chromoly Axle
Wheels
Rims
Shimano 3D30 3W Dynamo Disc QR Front/Shimano M475 Disc QR Rear, 36H Hubs, Rigida Taurus 19 Disc-Only Rims
Tires
Continental TownRIDE Reflex, 42-622
Brakes
Brakes
Tektro Draco 2 Hydraulic Disc Brake, 160mm Front, 160mm Rear
Brake Levers
Tektro Draco 2 Hydraulic Disc Brake, 3-Finger Lever
Cockpit
Stem
Breezer Forged 6061 Aluminum, 25.4, Adjustable 0~60°, Ahead-Style
Handlebar
Breezer Ergo 6061 Aluminum, 25.4, 630mm Wide, 30mm Rise, 9° Sweep
Headset
FSA 1 1/8", Fully Integrated, 36° ACB-Sealed, 15mm Aluminum Top Cover
Seat
Saddle
Selle Royal Premium Nuvola
Seatpost
Breezer Aluminum, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 625 mm | 635.9 mm | 646.4 mm | 667.1 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Top Tube Length | 585 mm | 595 mm | 605 mm | 625 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1058 mm | 1069 mm | 1079 mm | 1100 mm |
| Standover Height | 790 mm | 816 mm | 840 mm | 866 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Liberty 3 completes the Breezer Liberty model. 141 bikes variations carry this model name so far. Check out the entire range from 2013 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The Liberty 3 comes factory-installed with the SunTour NCX fork. This has a travel range of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Liberty 3 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Liberty 3 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
