Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, Alivio -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion hydroformed aluminum, integrated head tube, dual water bottle mounts
Suspension Fork
Breezer aluminum, aluminum steerer, Low-Rider rack mounts
Drivetrain
Rear Derailleur
Shimano Deore M591 9-Speed, SGS, Top-Normal Design
Front Derailleur
Shimano Alivio M430 9-Speed, 34.9mm
Shift Levers
Shimano Alivio M430 27-Speed
Cassette
Shimano HG-20 9-Speed, 11-32T
Crank
Shimano M431 9-Speed, Octalink, w/ Chainguard, 26-36-48T
Bottom Bracket
Shimano ES25, Octalink, Hollow-Type
Chain
KMC Z-99
Pedals
VP 856, CrMo axle
Wheels
Rims
Shimano DH-3N30 QR Dynamo Front/Alivio M430 Rear, 36H Hubs, Rigida ZAC 2000 Rims
Tires
Continental TownRIDE Reflex, 42-622
Brakes
Brakes
Shimano M422 V-Brake
Brake Levers
Shimano Alivio M430 V-Brake Levers
Cockpit
Stem
Breezer Aluminum, 31.8, 7° FlipFlop, Ahead Style
Handlebar
Breezer Aluminum, 31.8, 15mm rise, 630mm wide, 9° sweep
Headset
Oval 1 1/8", Fully Integrated, Semi-Cartridge Bearings
Seat
Saddle
Selle Royal Premium Ariel
Seatpost
Breezer Aluminum, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm | 278 mm |
| Front Center | 626.2 mm | 636.9 mm | 647.6 mm | 668 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 585 mm | 595 mm | 605 mm | 625 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1064 mm | 1074 mm | 1085 mm | 1105 mm |
| Standover Height | 782 mm | 808 mm | 832 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

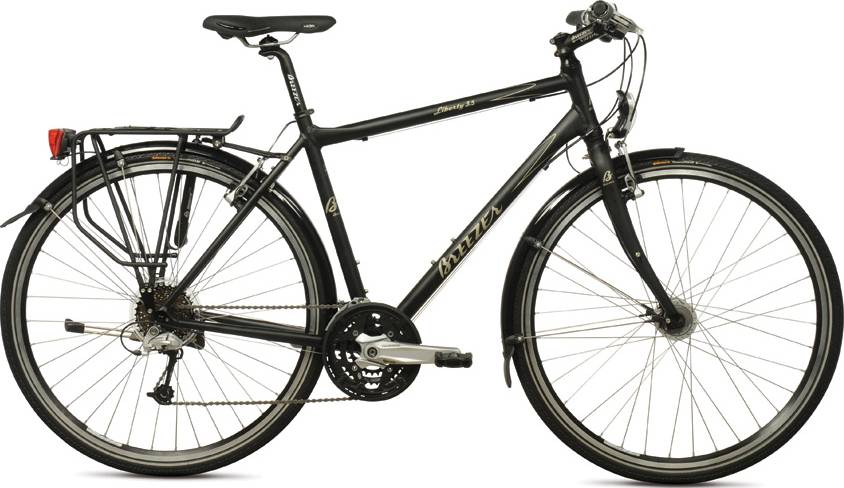

Liberty 3.5 (EU) is a Breezer Liberty model. Breezer launched 141 bikes of this model so far. Take a sneak peek at all Breezer Liberty bikes models from 2012, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
Liberty 3.5 (EU) has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The wheels on Liberty 3.5 (EU) are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
