Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, Alivio -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion hydroformed aluminum, integrated head tube, single water bottle mount
Suspension Fork
Breezer aluminum, aluminum steerer, Low-Rider rack mounts
Drivetrain
Rear Derailleur
Shimano Deore M591 9-Speed, SGS, Top-Normal Design
Front Derailleur
Shimano Alivio M430 9-Speed, 34.9mm
Shift Levers
Shimano Alivio M430 27-Speed
Cassette
Shimano HG-20 9-Speed, 11-32T
Crank
Shimano M431 9-Speed, Octalink, w/ Chainguard, 26-36-48T
Bottom Bracket
Shimano ES25, Octalink, Hollow-Type
Chain
KMC Z-99
Pedals
VP 856, CrMo axle
Wheels
Rims
Shimano DH-3N30 QR Dynamo Front/Alivio M430 Rear, 36H Hubs, Rigida ZAC 2000 Rims
Tires
Continental TownRIDE Reflex, 42-622
Brakes
Brakes
Shimano M422 V-Brake
Brake Levers
Shimano Alivio M430 V-Brake Levers
Cockpit
Stem
Breezer Aluminum, 31.8, 7° FlipFlop, Ahead Style
Handlebar
Breezer Aluminum, 31.8, 15mm rise, 630mm wide, 9° sweep
Headset
Oval 1 1/8", Fully Integrated, Semi-Cartridge Bearings
Seat
Saddle
Selle Royal Premium Ariel
Seatpost
Breezer Aluminum, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm | 278 mm |
| Front Center | 626.2 mm | 636.9 mm | 647.6 mm | 668 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 570 mm | 575 mm | 580 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1069 mm | 1079 mm | 1090 mm | 1110 mm |
| Standover Height | 688 mm | 712 mm | 729 mm | 745 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

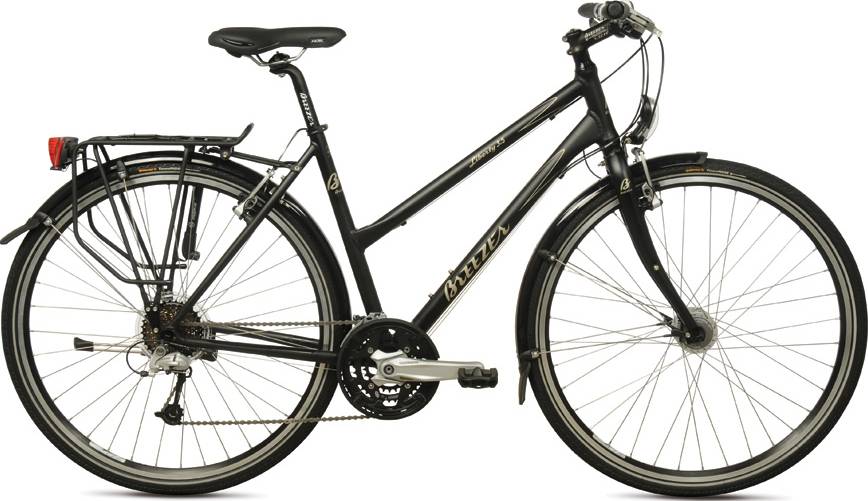

Liberty 3.5 Step-Thru (EU) completes the Breezer Liberty model. There are 141 bikes that carry this model name. Take a sneak peek at all Breezer Liberty bikes models from 2012, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Liberty 3.5 Step-Thru (EU) components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The Liberty 3.5 Step-Thru (EU) 2012 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Breezer Liberty 3.5 Step-Thru (EU) has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
