Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, Altus -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion Hydroformed Aluminum, Integrated Head Tube, Single Water Bottle Mount
Suspension Fork
Breezer Aluminum, Low-Rider Rack Mounts
Drivetrain
Rear Derailleur
Shimano Deore 9-Speed, SGS, Shadow Design
Front Derailleur
Shimano Altus 9-Speed, 34.9mm
Shift Levers
Shimano Altus 27-Speed
Cassette
Shimano HG-300 9-Speed, 11-32T
Crank
Shimano Alivio FC-M4060 9-Speed, w/ Chainguard, 48-36-26T
Bottom Bracket
Shimano SM-BB52, Hollowtech II
Chain
KMC 9-Speed
Pedals
VP, PP Body, Chromoly Axle
Wheels
Rims
Shimano 3D37 3W Dynamo QR Front / Shimano QR RM33, 32H Centerlock Hubs, Vera DPD22 Aluminum Double-Wall SSE Rims
Tires
Continental Town Ride Reflex 42-622, Puncture Protection
Brakes
Brakes
Shimano M355 Hydraulic Disc Brake, 160mm Front, 160mm Rear
Brake Levers
Shimano M355 Hydraulic Disc Brake, 3-Finger Lever
Cockpit
Stem
Breezer Forged 6061 Aluminum, 31.8, 7°
Handlebar
Breezer Ergo Lite 6061 Aluminum, 31.8, 610mm Wide, 15mm Rise, 15° Sweep
Headset
FSA 1 1/8", Fully Integrated, 36° ACB-Sealed, 15mm Aluminum Top Cover
Seat
Saddle
Breezer Comfort
Seatpost
Breezer Aluminum, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 275 mm | 275 mm | 280 mm | 280 mm | 280 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 535.5 mm | 555.6 mm | 575.2 mm | 585.9 mm | 596.5 mm |
| Seat Tube Angle | 74.7 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1061 mm | 1069 mm | 1062 mm | 1071 mm | 1085 mm |
| Standover Height | 659 mm | 675 mm | 700 | 715 mm | 726 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

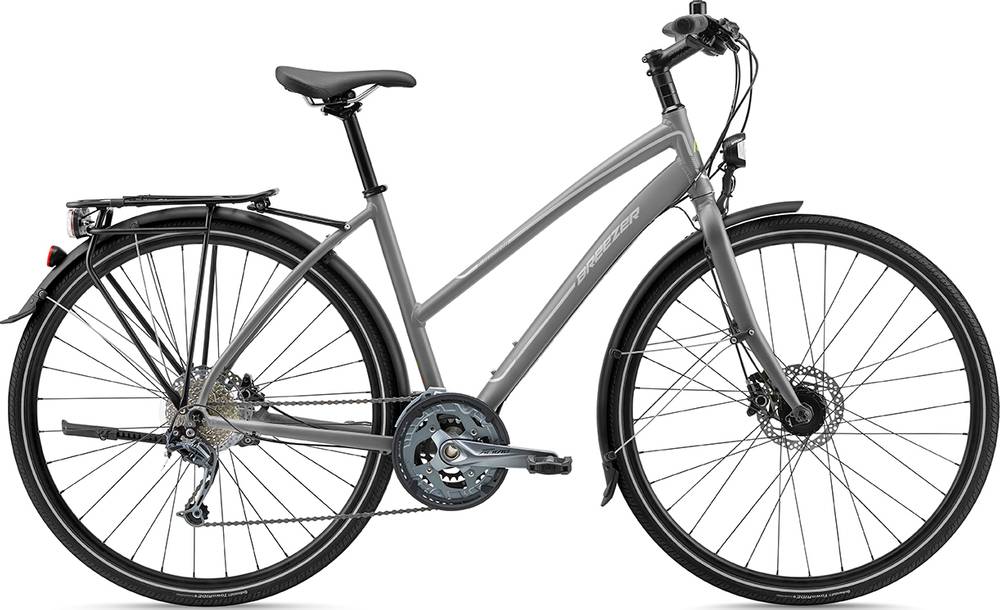

Liberty 3R + ST is a Breezer Liberty model. Breezer released 141 bikes variations of this model so far. Take a sneak peek at all Breezer Liberty bikes models from 2016, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.3 kg (31.53 lbs), Breezer bike is slightly heavier than average. In other words, this model is 3.25% heavier than the average Hybrid bike.
Overview of components
Fork material
Liberty 3R + ST has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, Breezer Liberty 3R + ST 2016, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Breezer Liberty 3R + ST is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
