Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion hydroformed aluminum, integrated head tube, single water bottle mount
Suspension Fork
SR Suntour NEX 4110 V4, STKM Steerer, 63mm Travel
Drivetrain
Rear Derailleur
Shimano Alivio M430 9-Speed, SGS, Top-Normal Design
Front Derailleur
Shimano Acera M390 9-Speed, 34.9mm
Shift Levers
Shimano EF65 27-Speed
Cassette
Shimano HG-20 9-Speed, 11-32T
Crank
Shimano M391 9-Speed, w/ Chainguard, 26-36-48T
Bottom Bracket
Shimano UN26 Cartridge Style
Chain
KMC Z-99
Pedals
VP 856, CrMo axle
Wheels
Rims
Shimano DH-3N20 NT Dynamo Front/RM70 Rear, 36H Hubs, Rigida ZAC 2000 Rims
Tires
Continental TownRIDE Reflex, 42-622
Brakes
Brakes
Tektro 855AL V-Brake
Brake Levers
Shimano EF65 V-Brake Levers
Cockpit
Stem
Breezer Aluminum, 25.4, Adjustable 0~60°, Ahead Style
Handlebar
Breezer Aluminum, 25.4, 30mm rise, 610mm wide, 15° sweep
Headset
Oval 1 1/8", Fully Integrated, Semi-Cartridge Bearings
Seat
Saddle
Selle Royal Premium Nuvola
Seatpost
Breezer Aluminum, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 614.3 mm | 621.8 mm | 616.1 mm | 626.8 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Top Tube Length | 570 mm | 575 mm | 580 mm | 590 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 400 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm | 155 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1052 mm | 1059 mm | 1054 mm | 1064 mm |
| Standover Height | 696 mm | 720 mm | 737 mm | 753 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

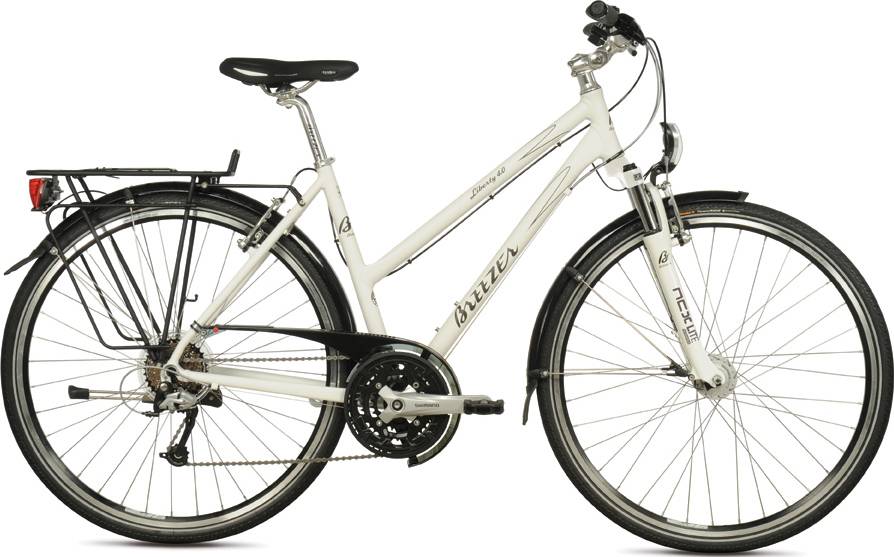

Liberty 4.0 Step-Thru (EU) is a Breezer Liberty model. Breezer released 141 bikes variations of this model so far. Check out the entire range from 2012 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Liberty 4.0 Step-Thru (EU) components
Fork
Breezer Liberty 4.0 Step-Thru (EU) 2012 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Breezer Liberty 4.0 Step-Thru (EU) 2012, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Breezer Liberty 4.0 Step-Thru (EU) has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
Liberty 4.0 Step-Thru (EU) comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
