Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Breezer D'Fusion Hydroformed Aluminum, Integrated Head Tube, Single Water Bottle Mount
Suspension Fork
Suntour NEX / Lockout / SKTM steerer
Drivetrain
Rear Derailleur
Shimano Alivio RD-T4000 Trekking 8-Speed, SGS
Front Derailleur
Shimano Altus Trekking 8-Speed, 34.9mm
Shift Levers
Shimano EF51 24-Speed
Cassette
Shimano HG 8-Speed, 11-32T
Crank
Shimano FC-M311-S 8-Speed, w/ Chainguard, 48-36-26T
Bottom Bracket
VP, 73 mm, Cartridge-Style
Chain
KMC 8-Speed
Pedals
VP, Chromoly Axle
Wheels
Rims
Shimano 3D31 3W Dynamo QR Front / Formula FM32-RQR, Vera DPM18 Aluminum Rims with GSW sides
Tires
Schwalbe Road Cruiser, 42-622, K-Guard Puncture Protection
Brakes
Brakes
Breezer Aluminum Linear Pull, Cold-Forged, Stainless Hardware
Brake Levers
Shimano EZ-Fire, 4-Finger Lever
Cockpit
Stem
Breezer Forged 6061 Aluminum, 25.4, Adjustable 0~60°, Ahead-Style
Handlebar
Breezer Ergo-L 6061 Aluminum, 25.4, 610mm Wide, 30mm Rise, 15° Sweep
Headset
FSA 1 1/8", Fully Integrated, 36° ACB-Sealed, 15mm Aluminum Top Cover
Seat
Saddle
Breezer Comfort
Seatpost
Breezer Aluminum, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 277.8 mm | 277.8 mm | 282.8 mm | 282.8 mm | 282.8 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Top Tube Length | 536.7 mm | 553.4 mm | 574.3 mm | 584.9 mm | 597.1 mm |
| Seat Tube Angle | 74 ° | 73 ° | 72 ° | 72 ° | 71.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1059 mm | 1065 mm | 1061 mm | 1072 mm | 1078 mm |
| Standover Height | 683 mm | 697 mm | 721 mm | 737 mm | 757 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

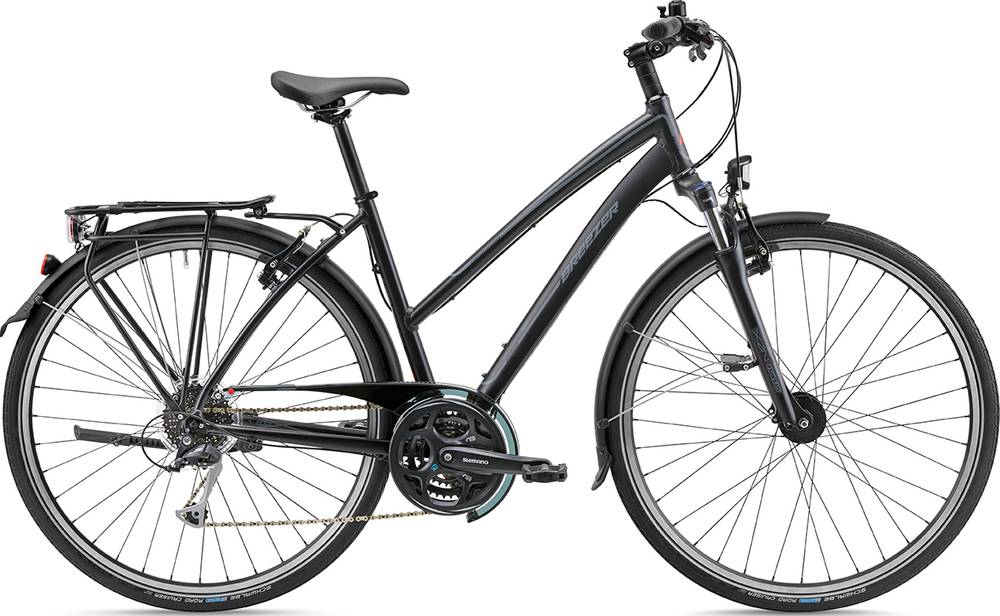

Model Overview
Liberty 4S + ST belongs to the Breezer Liberty model. 141 bikes variations carry this model name so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Liberty 4S + ST weighs 16.4 kg (36.16 lbs) and is much heavier than the average. In other words, this model is 18.41% heavier than the average Hybrid bike.
Liberty 4S + ST components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Liberty 4S + ST 2016 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Breezer Liberty 4S + ST is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Liberty 4S + ST comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
