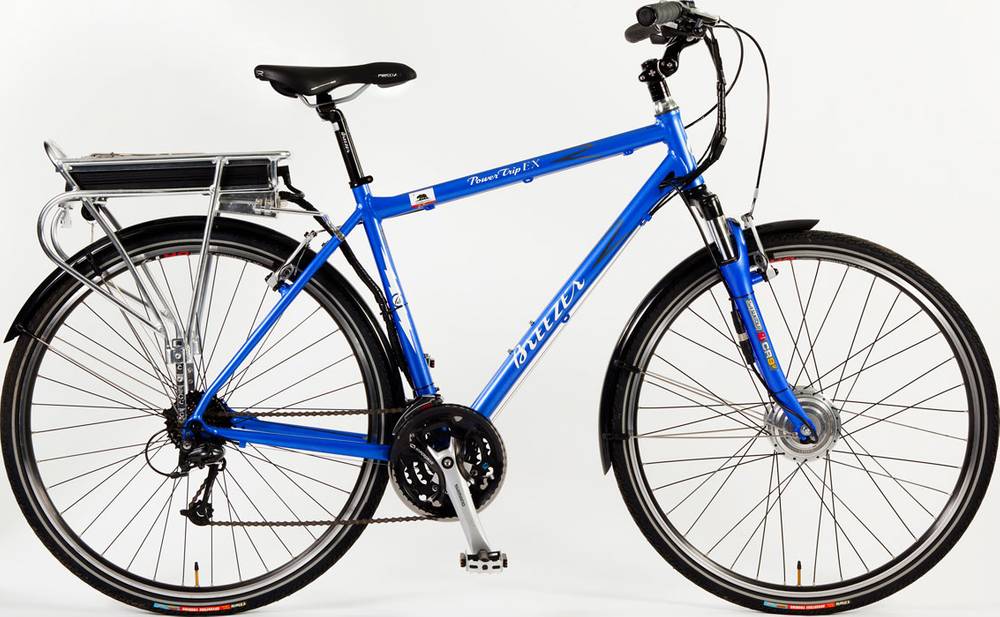

Breezer Power Trip EX (US) 2010
2010 E-bike
Weight | 22.79 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour
-
Groupset Deore, Altus -
Suspension Hardtail -
Battery GWA Lithium Polymer 24V 10Ah w/ battery management software -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D-Fusion custom butted alloy, integrated head tube, top tube/seat tube hydroforming, down tube hydroforming, dual water bottle mounts
Suspension Fork
Suntour SF9-CR-9V D 63mm travel
Drivetrain
Rear Derailleur
Shimano Deore LX, 9-speed
Front Derailleur
Shimano Altus, 34.9mm top swing dual pull
Shift Levers
Shimano Acera, 24-speed
Cassette
Shimano HG-30, 11-30, 8-speed
Crank
Shimano M361 w/ chainguard, 48/38/28T
Bottom Bracket
VP BC-55P
Chain
Shimano HG-40
Pedals
Wellgo C127 alloy body, alloy cage, cromo spindle
Wheels
Front Hub
Electric motor hub, 24V, 220W, 20MPH
Rear Hub
Shimano RM60 sealed bearing, 36H
Rims
Alex DH19
Spokes
13G/14G Stainless Steel
Tires
Vittoria Adventure Touring, 700 X 38C
Brakes
Brakes
Shimano M422 V-Brake
Brake Levers
ORO for V-Brake w/ electric cut-off switches
Cockpit
Stem
Breezer adjustable alloy ahead style
Handlebar
Breezer low rise 600mm wide alloy
Headset
VP A46ACK 1 1/8" Integrated
Seat
Saddle
Breezer w/ cromo rails
Seatpost
Breezer alloy 350mm
Motor & Battery
Battery
GWA Lithium Polymer 24V 10Ah w/ battery management software
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Front Center | 625 mm | 622 mm | 633 mm | 673 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Top Tube Length | 567 mm | 572 mm | 582 mm | 622 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 600 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1055 mm | 1052 mm | 1063 mm | 1103 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 587 mm | 612 mm | 629 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Power Trip EX (US) is part of the Breezer E Power model. Breezer released 2 e-bikes variations of this model so far. Take a sneak peek at all Breezer E Power e-bikes models from 2010, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 22.79 kg (50.24 lbs), the Power Trip EX (US) model is considerably lighter than average. In other words, this model is 10.57% lighter than the average Commuter e-bike.
Overview of components
Fork
Breezer Power Trip EX (US) 2010 e-bike is equipped with the SunTour fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the Power Trip EX (US) e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Breezer Power Trip EX (US) has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Breezer Power Trip EX (US) e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
