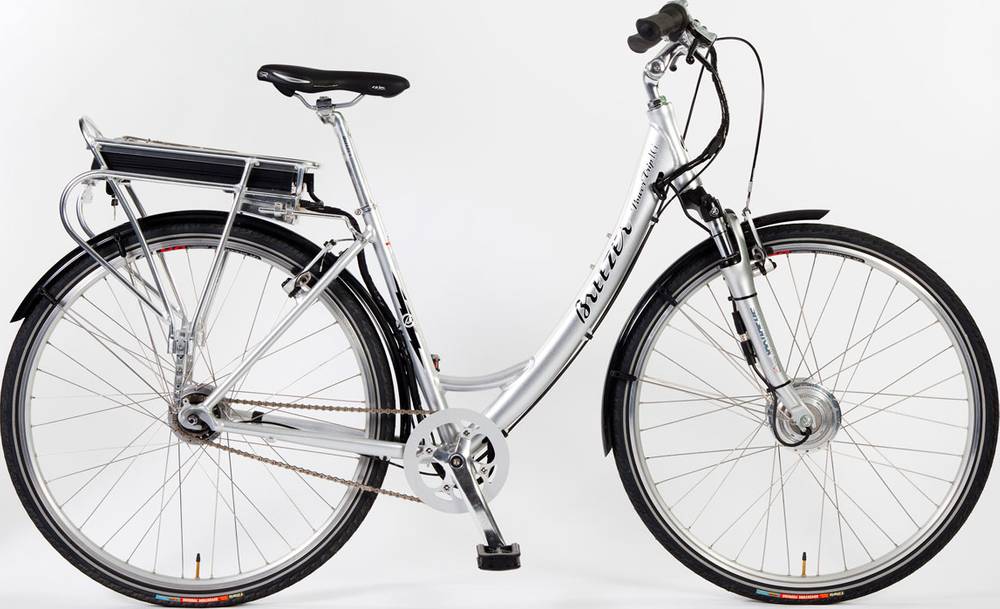

Breezer Power Trip IG Ladies (US) 2010
2010 E-bike
Weight | 24.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour
-
Groupset Shimano -
Suspension Hardtail -
Battery GWA Lithium Polymer 24V 10Ah w/ battery management software -
Drivetrain Internally Geared Hub -
Brakes Coaster
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D-Fusion custom butted alloy, integrated head tube, down tube hydroforming, single water bottle mount
Suspension Fork
Suntour SF9-CR 8V V2 50mm travel
Drivetrain
Shift Levers
Shimano RevoShift 8-speed
Cassette
18T for internal gear
Crank
Breezer alloy w/ alloy chainguard, 42T
Bottom Bracket
VP BC-55P
Chain
KMC Z410
Pedals
Wellgo C32 alloy body w/ Kraton top, cromo spindle
Wheels
Front Hub
Electric motor hub, 24V, 220W, 20MPH
Rear Hub
Shimano Nexus 8-speed w/ coaster brake, 36H
Rims
Alex DH19
Spokes
13G/14G Stainless Steel
Tires
Vittoria Adventure Touring, 700 X 38C
Brakes
Brakes
Shimano M422 V-Brake
Brake Levers
ORO for V-Brake w/ electric cut-off switches
Cockpit
Stem
Breezer adjustable alloy quill style
Handlebar
Breezer low rise 600mm wide alloy
Headset
VP MH308E 1 1/8" Threaded Semi-Integrated
Seat
Saddle
Breezer w/ memory foam
Seatpost
Breezer alloy 350mm
Motor & Battery
Battery
GWA Lithium Polymer 24V 10Ah w/ battery management software
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Front Center | 627 mm | 629 mm | 632 mm | 648 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 582 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 71.5 ° | 74.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 140 mm | 155 mm | 180 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1074 mm | 1075 mm | 1079 mm | 1095 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Power Trip IG Ladies (US) belongs to the Breezer E Power model. 2 e-bikes variations carry this model name so far. Take a sneak peek at all Breezer E Power e-bikes models from 2010, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 24.2 kg (53.35 lbs), Breezer e-bike is slightly lighter than average. To sum up, it’s 4.13% lighter than the average weight of Commuter e-bikes.
Overview of components
Fork
This e-bike has the SunTour fork installed. The fork’s travel is 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Power Trip IG Ladies (US) are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Breezer Power Trip IG Ladies (US) is equipped with Coaster brakes. These brakes are pretty efficient, and they’re not so pricey. However, they have flaws, especially if the chain falls off.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
