Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset GX, SRAM -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer butted chromoly steel, BSA Threaded BB, 135mm QR Rear Triangle w/Apex Disc Mount
Suspension Fork
CroMo Disc, 1 1/8"
Drivetrain
Rear Derailleur
SRAM GX
Front Derailleur
SRAM Via
Shift Levers
SRAM S-700 HRD
Cassette
SRAM, 11-36
Crank
SRAM S-1000, 48/32T
Bottom Bracket
SRAM
Chain
KMC X10
Pedals
na
Wheels
Rims
Vera Terra Disc, Tubeless Compatible, Formula sealed bearing hubs/front & rear, 32H
Tires
WTB Riddler Race, 700 x 45c
Brakes
Brakes
SRM HRD-700
Brake Levers
SRAM
Cockpit
Stem
Promax 3D-forged 6061 stem body, +/-7 degree
Handlebar
Oval Concepts 325, 6061 alloy, 31.8mm clamp, 125mm drop, 25° flare, 4° sweep
Headset
FSA 1 1/8" Semi-Integrated, 36° ACB-Sealed, 6.5mm Aluminum Top Cover
Seat
Saddle
WTB Volt Comp 142x265, Steel Rail
Seatpost
Oval Concepts 300, 6061 alloy, 27.2mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.59 mm | 1.62 mm | 1.63 mm | 1.63 mm | 1.67 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 573 mm | 585 mm | 591 mm | 602 mm | 615 mm | 621 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 82 mm | 78 mm | 78 mm | 76 mm | 72 mm |
| Stack | 561.75 mm | 582.59 mm | 600.53 mm | 614.74 mm | 625.97 mm | 647.04 mm |
| Reach | 357.18 mm | 366.3 mm | 370.16 mm | 376.5 mm | 383.79 mm | 388.44 mm |
| Top Tube Length | 507.97 mm | 533.64 mm | 554.06 mm | 564.75 mm | 581.47 mm | 599 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1018 mm | 1030 mm | 1036 mm | 1047 mm | 1060 mm | 1066 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 710 mm | 735 mm | 761 mm | 791 mm | 816 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |

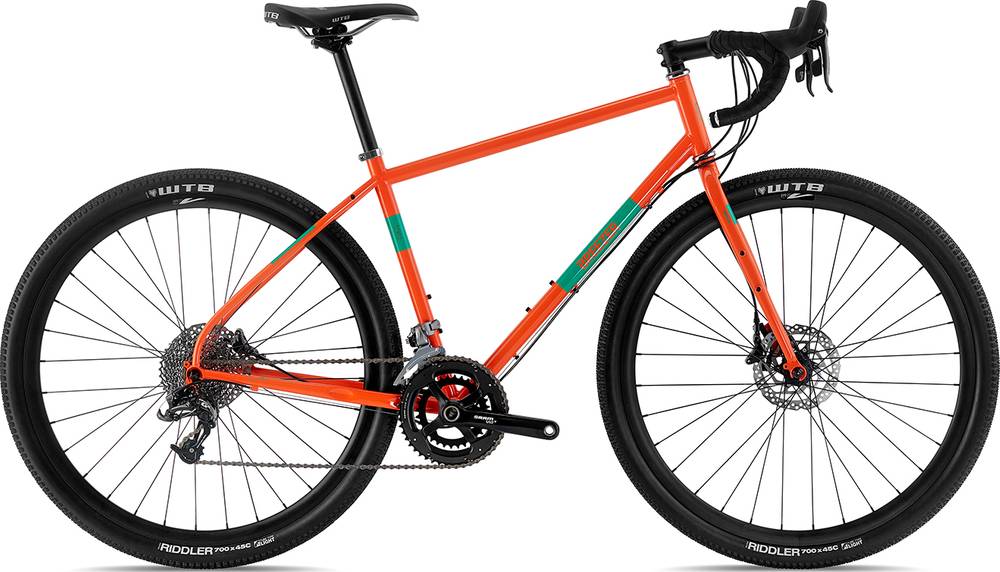

About this model
Radar Pro belongs to the Breezer Radar model. Breezer released 23 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Gravel bikes average weight
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Radar Pro has a weight of 10.9 kg (24.03 lbs). In short, the average Gravel bike weight is 34.07% lower than this one.
Overview of components
Fork material
The fork on this bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When leaving the production line, the Radar Pro model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Breezer Radar Pro is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Breezer Radar Pro bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, you can easily find one that suits you.
