Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer Custom-Butted Aluminum, Integrated Head Tube, Breeze-In Dropouts, Apex Disc Mount
Suspension Fork
RockShox XC 30,Crown Lockout, QR, 100mm Travel
Rear Shock
na
Drivetrain
Rear Derailleur
Shimano Deore XT 10-speed, SGS, Shadow Plus Design
Front Derailleur
Shimano Deore 10-speed, 34.9mm
Shift Levers
Shimano Deore, 10-speed
Cassette
Shimano HG-50 10-speed, 11-36T
Crank
Shimano M523 10-speed, Hollowtech, 40-30-22T
Bottom Bracket
Shimano ES300, Octalink, Hollow-Type
Chain
KMC X10, 10-speed
Pedals
Wellgo Aluminum, Chromoly Axle
Wheels
Rims
WTB STP i19 29" Rims, Tubeless Ready, Shimano M4050 CenterLock Hubs, 14G Spokes, 32H
Tires
WTB Nine Line 29x2.25†Comp
Brakes
Brakes
Shimano M395 Hydraulic Disc Brake, 180mm rotor front, 160mm rear
Brake Levers
Shimano M396 Hydraulic Disc Brake
Cockpit
Stem
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts flat bar, 6061 alloy, 9° sweep, 31.8mm clamp
Grips
Oval Concepts 600, single lock on, single density Kraton
Headset
FSA 1 1/8", Fully Integrated, 36° ACB-Sealed, 9mm Aluminum Top Cover
Seat
Saddle
WTB Volt, Satin Steel Rail
Seatpost
Oval Concepts, 6061 alloy, 27.2mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.59 mm | 1.57 mm | 1.56 mm | 1.54 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 615 mm | 615.1 mm | 624.5 mm | 634 mm | 643.4 mm |
| Reach | 375.9 mm | 387 mm | 398.6 mm | 405.4 mm | 417.2 mm |
| Top Tube Length | 572 mm | 587 mm | 602 mm | 612 mm | 627 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 380 mm | 430 mm | 470 mm | 500 mm | 530 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1048 mm | 1064 mm | 1079 mm | 1089 mm | 1104 mm |
| Standover Height | 763 mm | 783 mm | 807 mm | 826 mm | 845 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

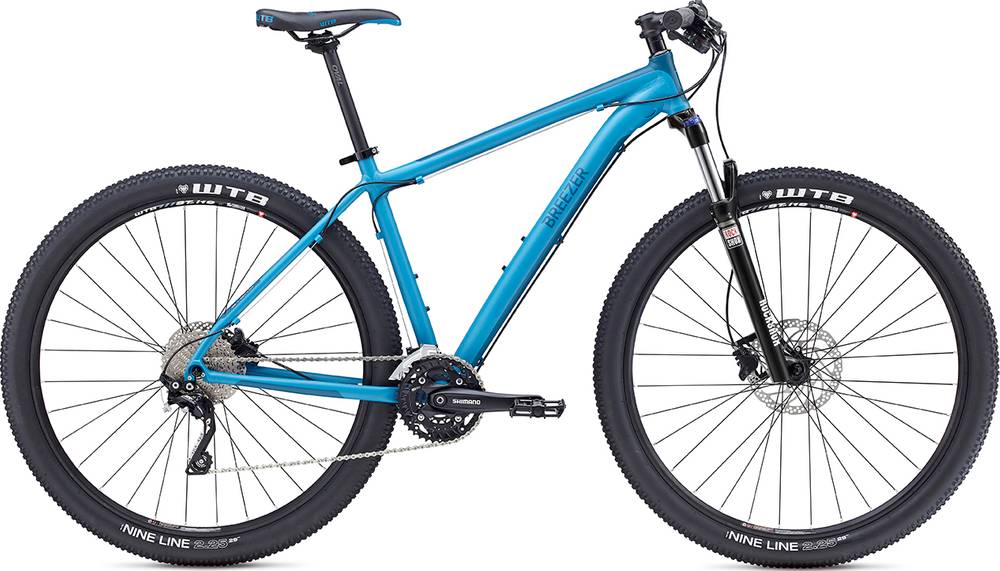

Storm 29 Expert is part of the Breezer Storm model. 45 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 13.1 kg (28.88 lbs), the Storm 29 Expert model is a bit heavier than average. In short, the average Crosscountry bike weight is 5.65% lower than this one.
Overview of components
Fork
The Storm 29 Expert comes factory-installed with the RockShox 30 Silver TK fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Storm 29 Expert model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Breezer Storm 29 Expert has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
