Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion Hydroformed Custom-Butted Aluminum, Integrated Head Tube
Suspension Fork
Rock Shox XC 28 TK Mg, Aluminum Steerer, 100mm Travel
Rear Shock
-
Drivetrain
Rear Derailleur
Shimano Deore XT 10-Speed, SGS, Shadow Design
Front Derailleur
Shimano Deore 10-Speed, 34.9mm
Shift Levers
Shimano Deore 30-Speed
Cassette
Shimano HG-62 10-Speed, 11-36T
Crank
Shimano M522 10-Speed, Hollowtech, 42-32-24T
Bottom Bracket
Shimano ES25, Octalink, Hollow-Type
Chain
KMC X10
Pedals
Wellgo Aluminum, Chromoly Axle
Wheels
Rims
Shimano M435 32H CenterLock Hubs, WTB SX19 26" Rims
Tires
WTB Bronson 26x2.1" Comp
Brakes
Brakes
Shimano M445 Hydraulic Disc Brake, 180mm Front, 160mm Rear
Brake Levers
Shimano M445 Hydraulic Disc Brake
Cockpit
Stem
Oval Concepts 313, 3D-Forged 6061 Aluminum, 31.8, 7°/83°
Handlebar
Oval Concepts 200, 6061 Aluminum, 31.8, 680mm Wide, 15mm Rise, 9° Sweep
Headset
FSA IS-3 1 1/8", Fully Integrated, 36° ACB-Sealed, 9mm Aluminum Top Cover
Seat
Saddle
WTB Volt, Satin Steel Rail
Seatpost
Oval Concepts 300, 3D-Forged 6061 Aluminum, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 298 mm | 303 mm | 303 mm | 303 mm | 303 mm |
| Front Center | 603.7 mm | 624.6 mm | 642.6 mm | 653.7 mm | 660.4 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm | 602 mm | 612 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° | 71.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 470 mm | 500 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1023 mm | 1044 mm | 1062 mm | 1073 mm | 1080 mm |
| Bottom Bracket Drop | 45 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 737 mm | 763 mm | 785 mm | 803 mm | 820 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

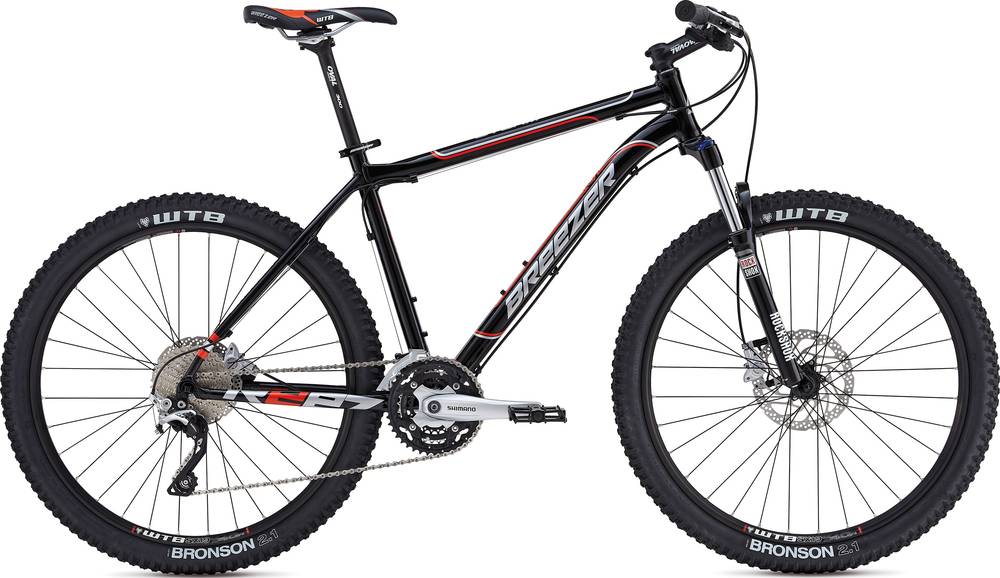

Storm Expert 26 is a Breezer Storm model. There are 45 bikes that carry this model name. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.19 kg (29.08 lbs), Breezer bike is a bit heavier than average. To sum up, it’s 6.37% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Storm Expert 26 are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Breezer Storm Expert 26 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
