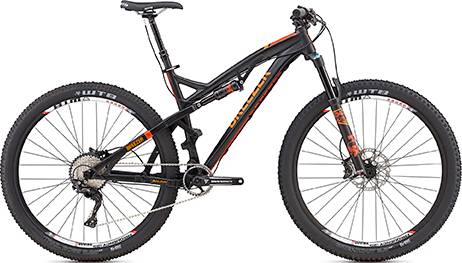

Breezer Supercell 29 Team INTL 2017
2017 Mountain
Weight | 14.13 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" / 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset XT, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
120mm Travel MLink Suspension, Breezer D'Fusion Hydroformed Custom-Butted 6066 Aluminum, Tapered Head Tube, BB92 Bottom Bracket, ISCG Mounts, 142X12 Spacing w/ Thru-Axle, Sealed Cartridge Bearing Pivots, Internal Routing
Suspension Fork
Fox 34 Performance Elite, Boost 110x15 Thru-Axle, 3-position adjust w/Lockout, 130mm Travel
Rear Shock
Fox Float Performance Elite, 3-Position w/lockout
Drivetrain
Rear Derailleur
Shimano Deore XT, Shadow Plus
Front Derailleur
na
Shift Levers
Shimano Deore XT, 11-speed
Cassette
Shimano HG-7000, 11-speed, 11-42T
Crank
RaceFace Turbine, Cinch system, 30mm spindle, 32T
Bottom Bracket
RaceFace BB92
Chain
KMC X11EL-1
Pedals
na
Wheels
Rims
WTB Fequency Team i25, 29", TCS Tubeless Ready, Formula hubs w/cartridge bearings, Boost 110x15mm Front/142x12mm Rear, 14/15G Spokes, 32H
Tires
WTB Breakout 29x2.3†TCS light / Trail Boss 29x2.25"TCS Light, Tubeless Ready
Brakes
Brakes
Shimano M8000 Hydraulic Disc Brake, 180mm rotor front, 160mm rear
Brake Levers
Shimano M8000 Hydraulic Disc
Cockpit
Stem
RaceFace Turbine, 1 1/8" x 31.8mm clamp, +/- 6 degree
Handlebar
RaceFace Atlas, low-rise, 785mm
Grips
Oval Concepts 620, ergo shape, single lock on, single density Kraton
Headset
FSA 1 1/8"-1 1/2", Internal, Sealed ACB
Seat
Saddle
WTB Volt Race, Ti/Cro Tubular Rail
Seatpost
RockShox Reverb RS, remote dropper lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.43 mm | 1.43 mm | 1.43 mm | 1.43 mm | 1.41 mm | 1.41 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 681 mm | 681 mm | 697 mm | 697 mm | 707 mm | 707 mm | 723 mm | 723 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 102 mm | 95 mm | 102 mm | 95 mm | 101 mm | 94 mm | 102 mm | 95 mm |
| Stack | 601.3 mm | 601.3 mm | 610.7 mm | 610.7 mm | 620 mm | 620 mm | 629.4 mm | 629.4 mm |
| Reach | 414 mm | 414 mm | 426 mm | 426 mm | 433 mm | 433 mm | 446 mm | 446 mm |
| Top Tube Length | 581 mm | 581 mm | 596 mm | 596 mm | 606 mm | 606 mm | 621 mm | 621 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 430 mm | 470 mm | 470 mm | 500 mm | 500 mm | 530 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1123 mm | 1123 mm | 1139 mm | 1139 mm | 1150 mm | 1150 mm | 1166 mm | 1166 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 761 mm | 761 mm | 761 mm | 761 mm | 764 mm | 764 mm | 771 mm | 771 mm |
| Wheels | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
Model Overview
Supercell 29 Team INTL is part of the Breezer Supercell model. Breezer released 17 bikes variations of this model so far. You can easily view all of the Breezer Supercell bikes models from 2017, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, Supercell 29 Team INTL has a weight of 14.13 kg (31.15 lbs). In other words, this model is 8.86% heavier than the average Trail bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Fox Performance Elite Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Breezer Supercell 29 Team INTL bike has the Fox Float Performance Elite model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Supercell 29 Team INTL model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Breezer Supercell 29 Team INTL has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
